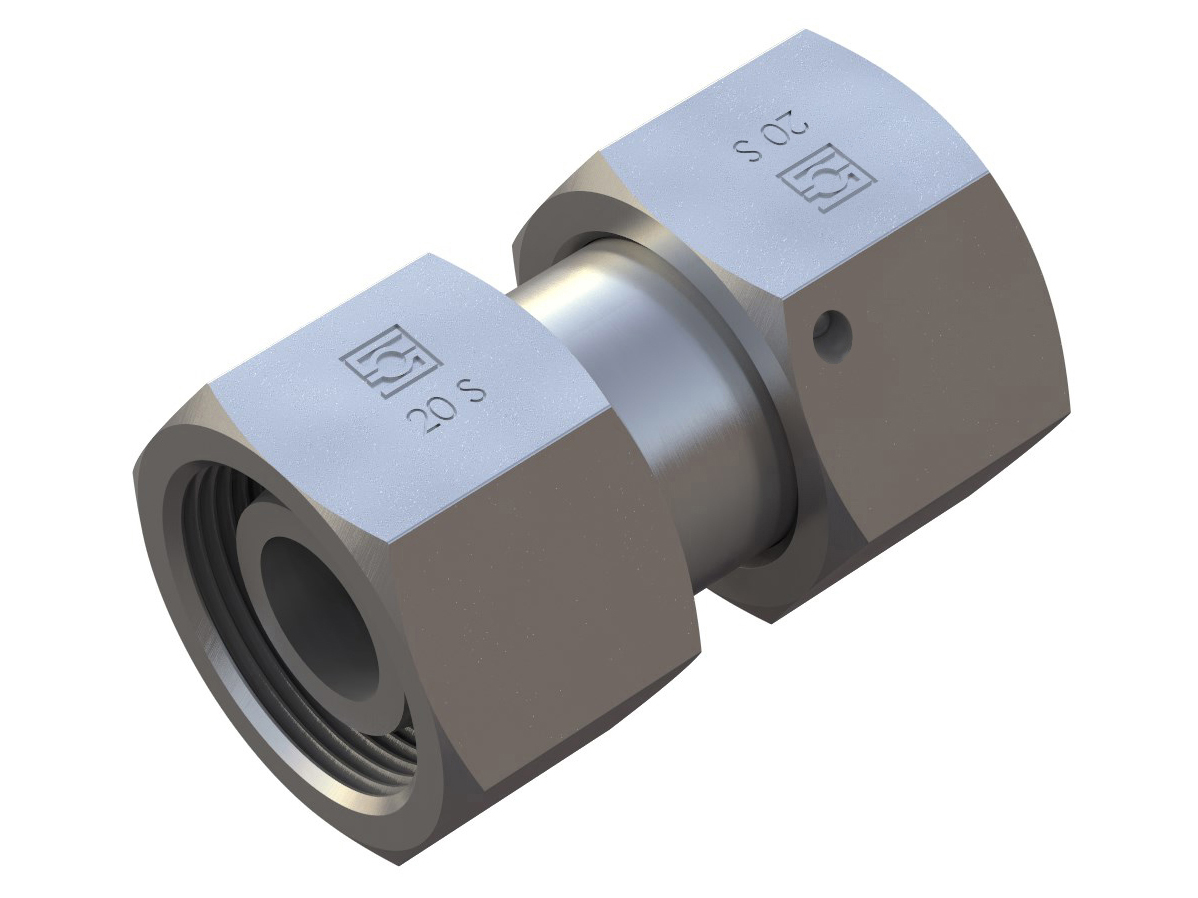

Straight fitting 0° - S-series - with union nuts

SELECT VARIANT

Partnumber	Description	Diameter rør	Tryk maks.	Gevind indvendig metrisk
GZ06S	Straight fitting ø6S with O-ring	6 mm	800 bar	M14x1,5
GZ08S	Straight fitting ø8S with O-ring	8 mm	800 bar	M16x1,5
GZ10S	Straight fitting ø10S with O-ring	10 mm	800 bar	M18x1,5
GZ12S	Straight fitting ø12S with O-ring	12 mm	630 bar	M20x1,5
GZ14S	Straight fitting ø14S with O-ring	14 mm	630 bar	M22x1,5
GZ16S	Straight fitting ø16S with O-ring	16 mm	630 bar	M24x1,5
GZ20S	Straight fitting ø20S with O-ring	20 mm	400 bar	M30x2
GZ25S	Straight fitting ø25S with O-ring	25 mm	400 bar	M36x2
GZ30S	Straight fitting ø30S with O-ring	30 mm	400 bar	M42x2
GZ38S	Straight fitting ø38S with O-ring	38 mm	400 bar	M52x2

Korrosions resistens

1200 hours salt spray DIN EN ISO 9227

Materiale

Steel

Mærke navn

Stauff

Overfladebehandling

Zinc-Nickel plated

Pakningsmateriale

FKM/FPM (Viton®)

REACH compliant

Yes

RoHs compliant

Yes

Serie

Serie 1

N/A

Sikkerhedsfaktor

Temperatur maks.

+200

Temperatur min.

-25

Vinkel
