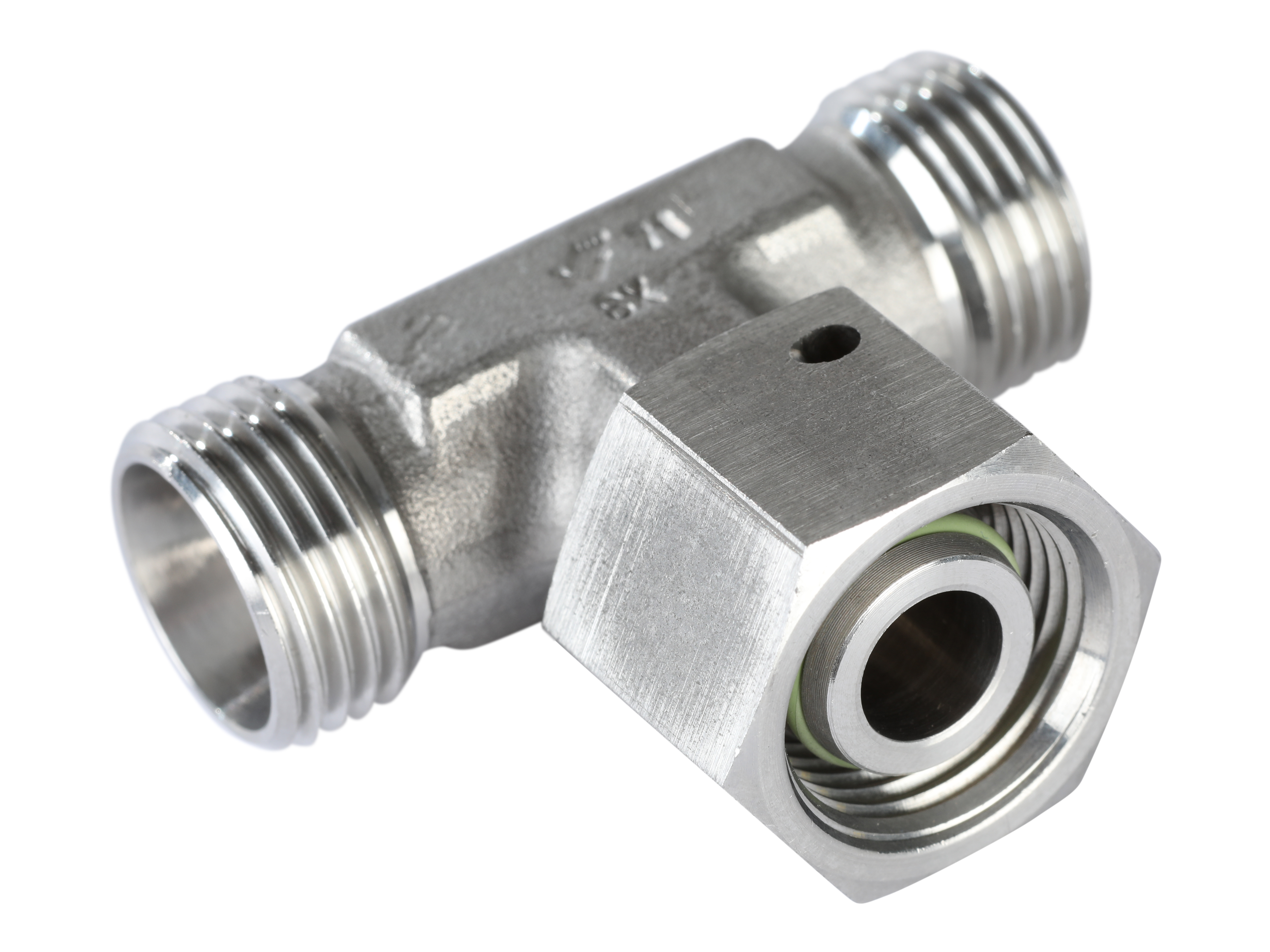

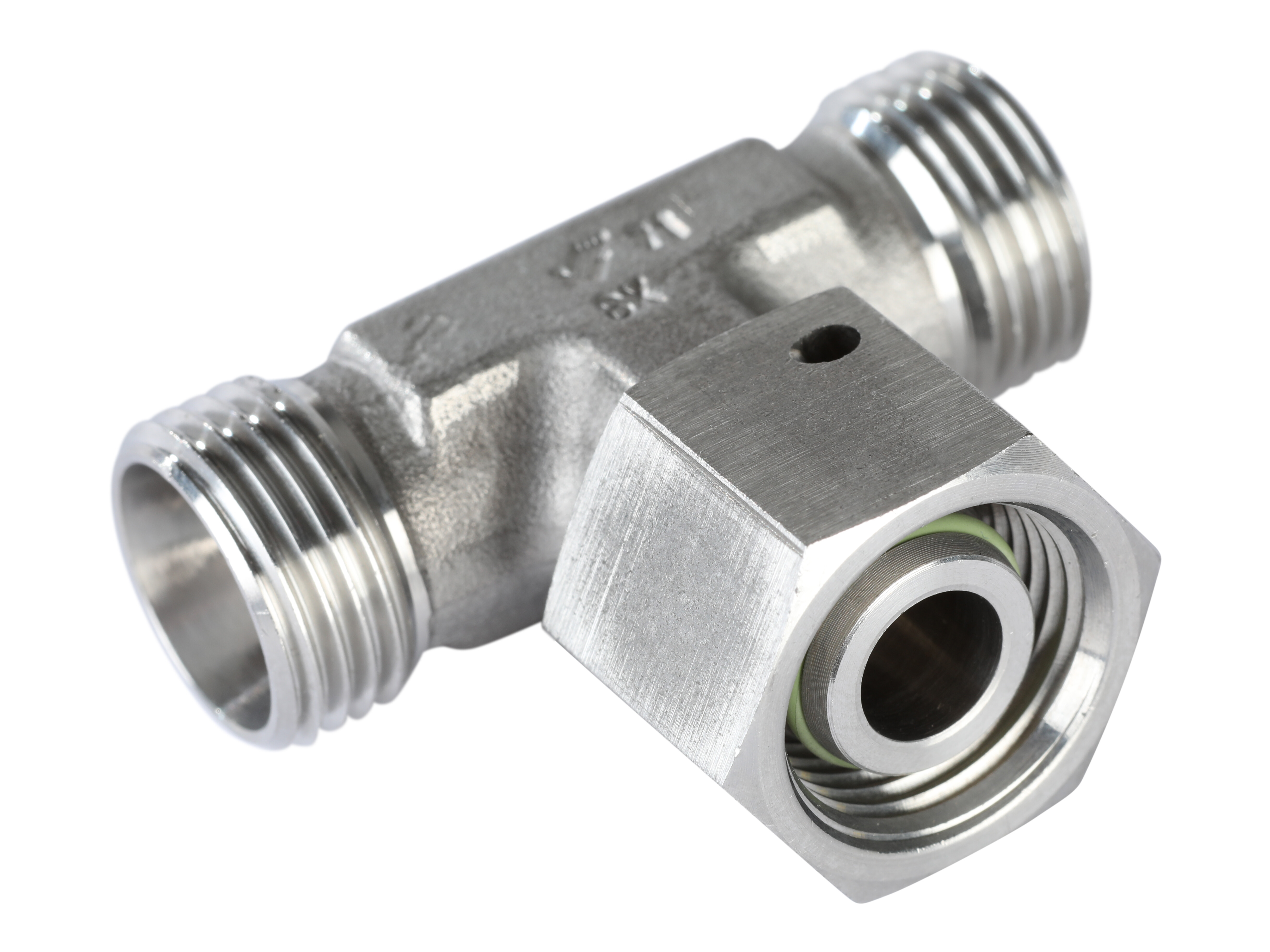

T-fitting adjustable - L-series - Male x Union nut O-ring x Male stainless

T-fitting adjustable - L-series - Male x Union nut O-ring x Male stainless

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Pressure max. Thread outer metric Thread inner metric
XET06L-SY Run tee fitting adjustable - ø6L - o-ring seal - AISI316 6 mm 500 bar M12x1,5 M12x1,5
XET08L-SY Run tee fitting adjustable - ø8L - o-ring seal - AISI316 8 mm 500 bar M14x1,5 M14x1,5
XET10L-SY Run tee fitting adjustable - ø10L - o-ring seal - AISI316 10 mm 500 bar M16x1,5 M16x1,5
XET12L-SY Run tee fitting adjustable - ø12L - o-ring seal - AISI316 12 mm 400 bar M18x1,5 M18x1,5
XET15L-SY Run tee fitting adjustable - ø15L - o-ring seal - AISI316 15 mm 400 bar M22x1,5 M22x1,5
XET18L-SY Run tee fitting adjustable - ø18L - o-ring seal - AISI316 18 mm 400 bar M26x1,5 M26x1,5
XET22L-SY Run tee fitting adjustable - ø22L - o-ring seal - AISI316 22 mm 250 bar M30x2 M30x2
XET28L-SY Run tee fitting adjustable - ø28L - o-ring seal - AISI316 28 mm 250 bar M36x2 M36x2
XET35L-SY Run tee fitting adjustable - ø35L - o-ring seal - AISI316 35 mm 250 bar M45x2 M45x2
XET42L-SY Run tee fitting adjustable - ø42L med o-ring - AISI316 42 mm 250 bar M52x2 M52x2
Brand Name
Hydraspecma
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Series
L
Temperature max.
+200
Temperature min.
-25
