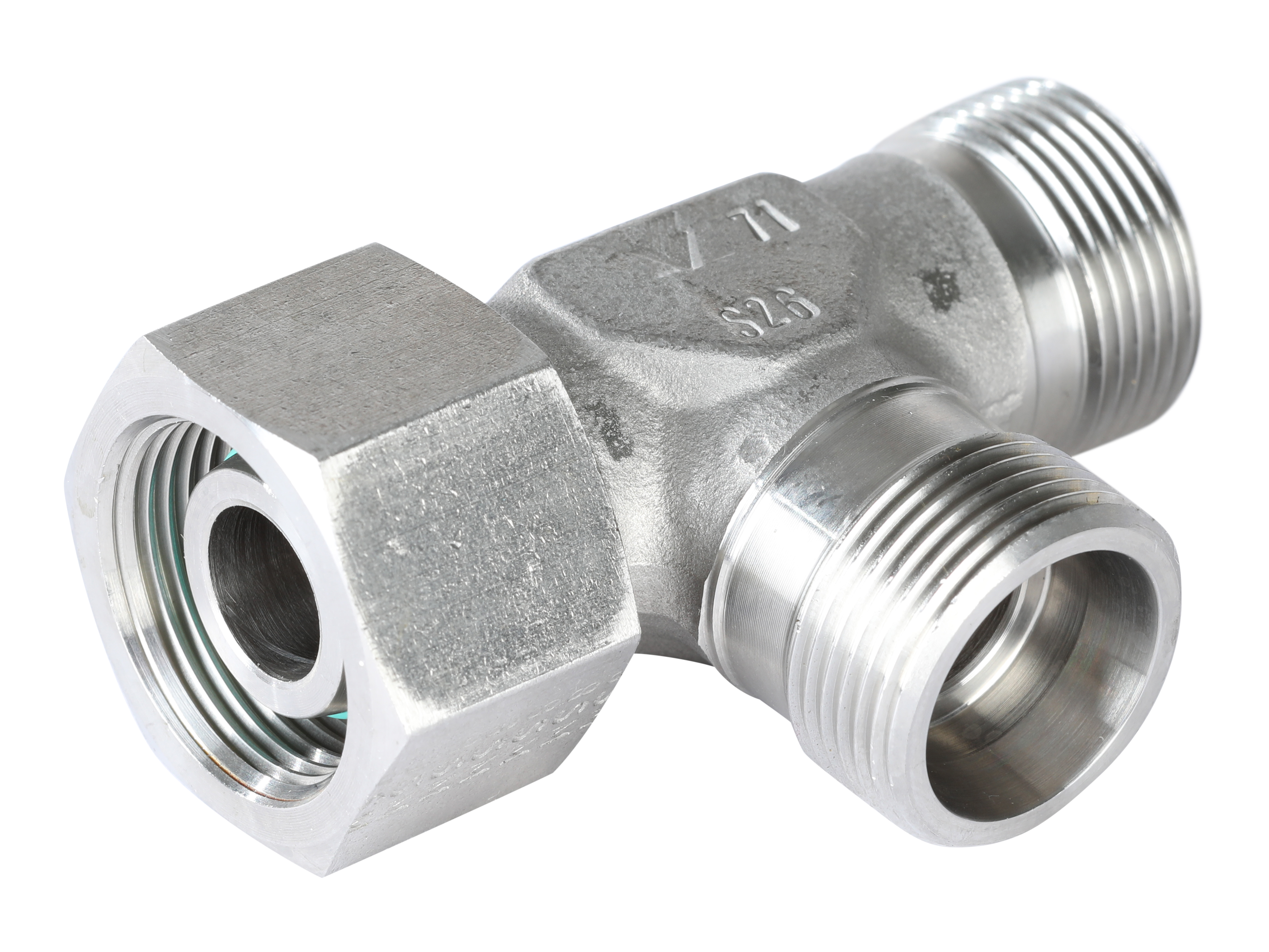

L-fitting adjustable - L-serie - Male x Male x Union nut O-ring stainless

SELECT VARIANT
Partnumber Description Diameter pipe Pressure max. Thread outer metric Thread inner metric
XEL06L-SY L fitting adjustable - ø6L - o-ring seal - AISI316 6 mm 500 bar M12x1,5 M12x1,5
XEL08L-SY L fitting adjustable - ø8L - o-ring seal - AISI316 8 mm 500 bar M14x1,5 M14x1,5
XEL10L-SY L fitting adjustable - ø10L - o-ring seal - AISI316 10 mm 500 bar M16x1,5 M16x1,5
XEL12L-SY L fitting adjustable - ø12L - o-ring seal - AISI316 12 mm 400 bar M18x1,5 M18x1,5
XEL15L-SY L fitting adjustable - ø15L - o-ring seal - AISI316 15 mm 400 bar M22x1,5 M22x1,5
XEL18L-SY L fitting adjustable - ø18L - o-ring seal - AISI316 18 mm 400 bar M26x1,5 M26x1,5
XEL22L-SY L fitting adjustable - ø22L - o-ring seal - AISI316 22 mm 250 bar M30x2 M30x2
XEL28L-SY L fitting adjustable - ø28L - o-ring seal - AISI316 28 mm 250 bar M36x2 M36x2
XEL35L-SY L fitting adjustable - ø35L - o-ring seal - AISI316 35 mm 250 bar M45x2 M45x2
XEL42L-SY L fitting adjustable - ø42L - o-ring seal - AISI316 42 mm 250 bar M52x2 M52x2
Brand Name
Volz

Material
Acid-resistant steel

Material quality
1.4571 / AISI316Ti

REACH compliant
Yes

RoHs compliant
Yes

Safety factor
4

Sealing material
FKM/FPM (Viton®)

Series
L

Temperature max.
+200

Temperature min.
-25

Type
Forged
