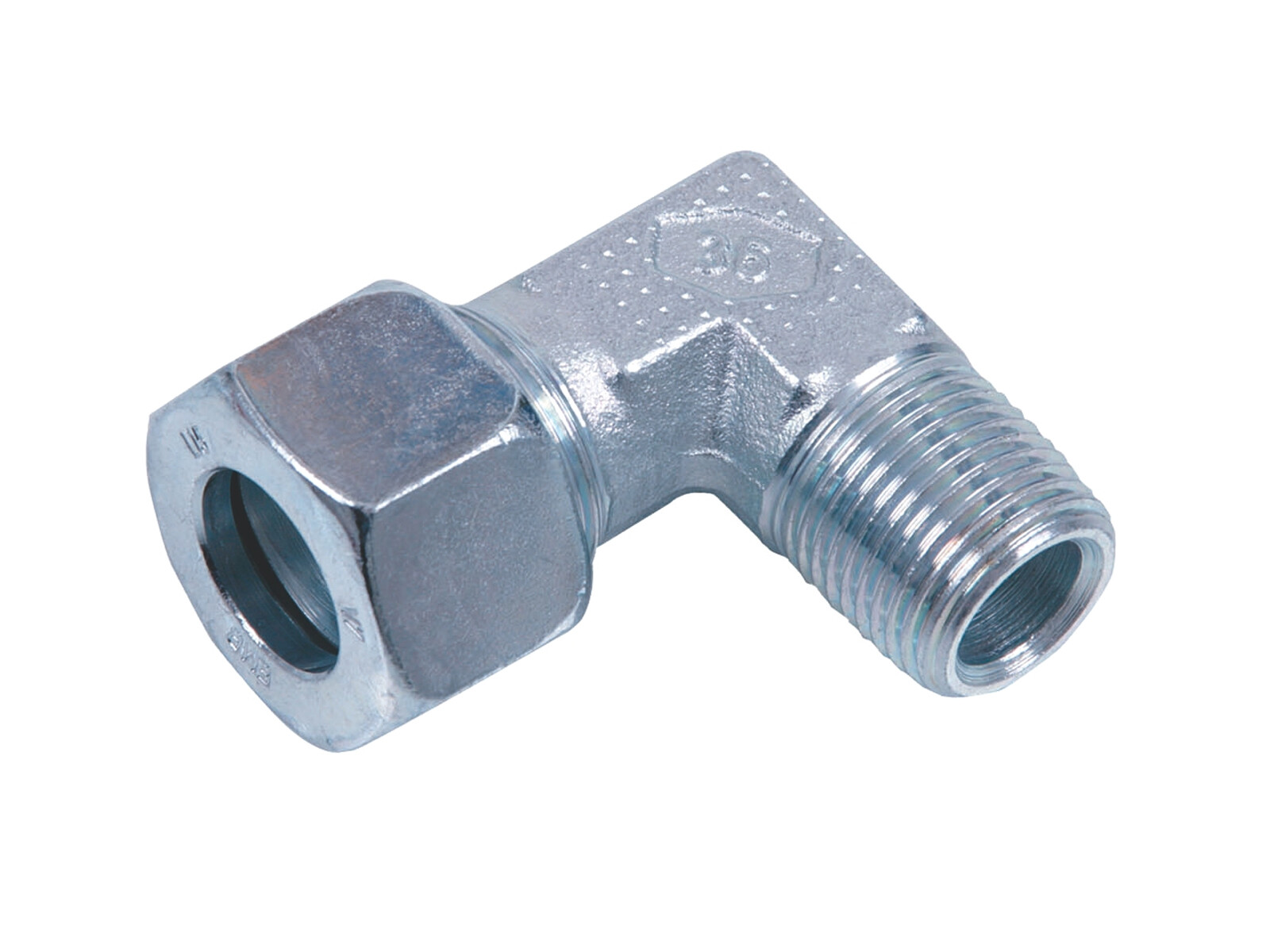

Elbow fitting 90° - LL-series - MM male 24° x BSPT male - B-RLL / WE-LLKR

Skärringskoppling 90, 4LL, Utv-KR1/8''

Male Stud Elbow Size / Type:05LL R1/8 Taper

Skärringskoppling 90, 6LL, Utv-KR1/8''

Skärringskoppling 90, 8LL, Utv-KR1/8''

Skärringskoppling 90, 10LL, Utv-KR1/4''

Skärringskoppling 90, 12LL, Utv-KR1/4''

Stud elbow 90° - ø5LL x 1/8" BSPT

VÄLJ VARIANT

Artikelnummer	Beskrivning	Diameter rör	Gänga utv.	Gänga utv. metrisk	Tryck max.
WE04LLKR	Skärringskoppling 90, 4LL, Utv-KR1/8''	4 mm	R 1/8 BSPT	M8x1	100 bar
WE05LLKR	Male Stud Elbow Size / Type:05LL R1/8 Taper	5 mm			100 bar
WE06LLKR	Skärringskoppling 90, 6LL, Utv-KR1/8''	6 mm	R 1/8 BSPT	M10x1	100 bar
WE08LLKR	Skärringskoppling 90, 8LL, Utv-KR1/8''	8 mm	R 1/8 BSPT	M12x1	100 bar
WE10LLKR	Skärringskoppling 90, 10LL, Utv-KR1/4''	10 mm	R 1/4 BSPT	M14x1	100 bar
WE12LLKR	Skärringskoppling 90, 12LL, Utv-KR1/4''	12 mm	R 1/4 BSPT	M16x1	100 bar
XWE05LLKR	Stud elbow 90° - ø5LL x 1/8" BSPT	5 mm			100 bar

Serie

Säkerhetsfaktor

Temperatur max.

+120

Temperatur min.

-40

Tillverkningsmaterial

Steel

Tryck max.

100

Vinkel
