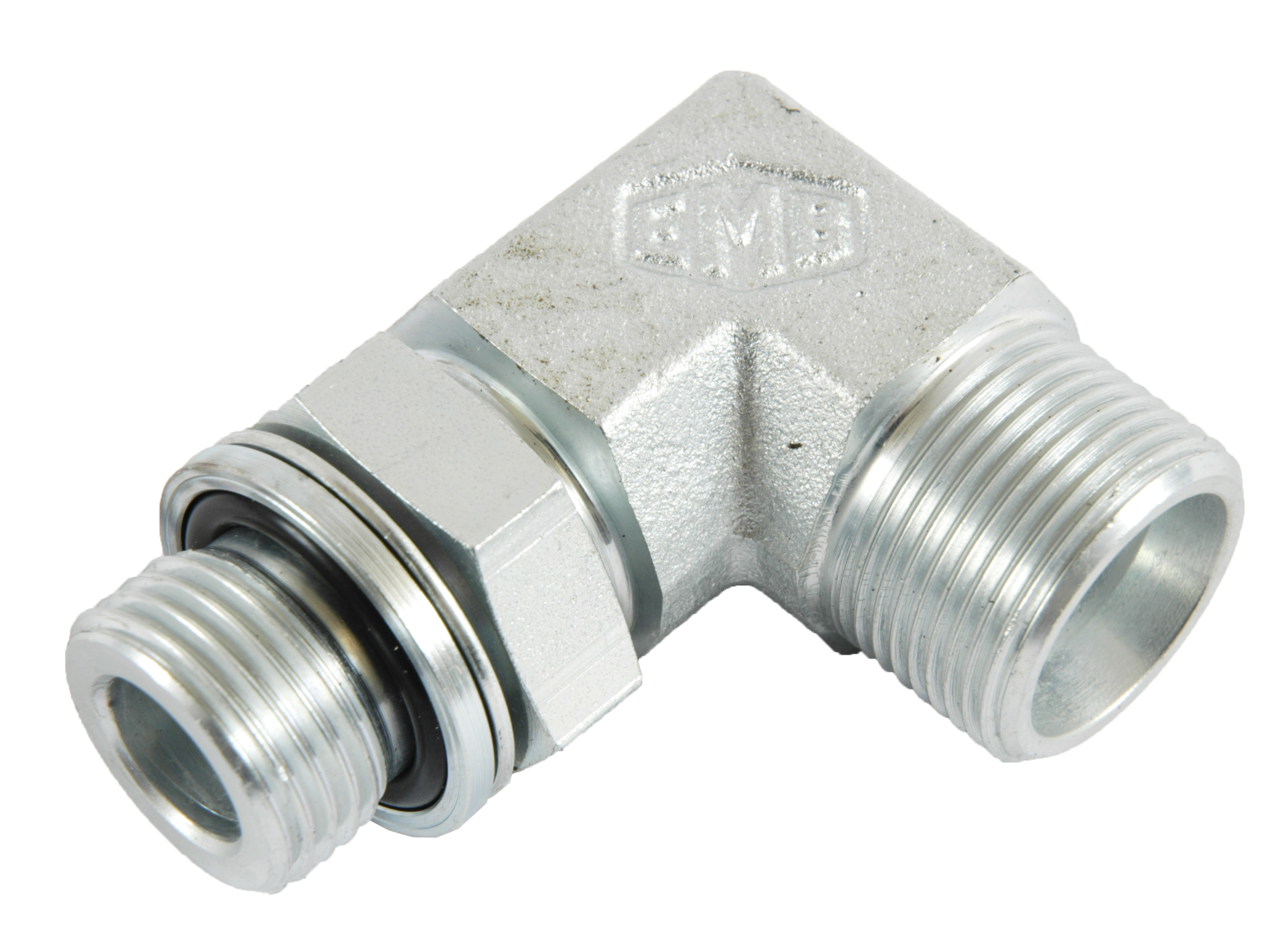

Elbow fitting 90° - S-series - MM male 24° x BSP male adjustable with counter nut

Elbow fitting 90° - S-series - MM male 24° x BSP male adjustable with counter nut

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Pressure max. Thread outer metric
XWEE06SR Stud elbow adjustable 90° - ø6S x 1/4" BSP 6 mm 315 bar
XWEE08SR Stud elbow adjustable 90° - ø8S x 1/4" BSP
XWEE10SR Stud elbow adjustable 90° - ø10S x 3/8" BSP 10 mm G 3/8 BSP 315 bar M18x1,5
XWEE12SR Stud elbow adjustable 90° - ø12S x 3/8" BSP 12 mm G 3/8 BSP 250 bar M20x1,5
XWEE16SR Stud elbow adjustable 90° - ø16S x 1/2" BSP 16 mm G 1/2 BSP 250 bar M24x1,5
XWEE16SR34 Adapter 90° 16S, Utv-G 3/4'', Ställbar 16 mm G 3/4 BSP 250 bar M24x1,5
XWEE20SR Stud elbow adjustable 90° - ø20S x 3/4" BSP 20 mm 250 bar
XWEE25SR Stud elbow adjustable 90° - ø25S x 1" BSP 25 mm G 1 BSP 315 bar M36x2
XWEE25SR34 Adapter 90° 25S male-G 3/4'' adjustable
XWEE30SR Stud elbow adjustable 90° - ø30S x 1.1/4" BSP 30 mm 160 bar
XWEE38SR Stud elbow adjustable 90° - ø38S x 1.1/2" BSP 38 mm 160 bar
Angle
90
Material
Steel
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Sealing material
NBR
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+100
Temperature min.
-35
