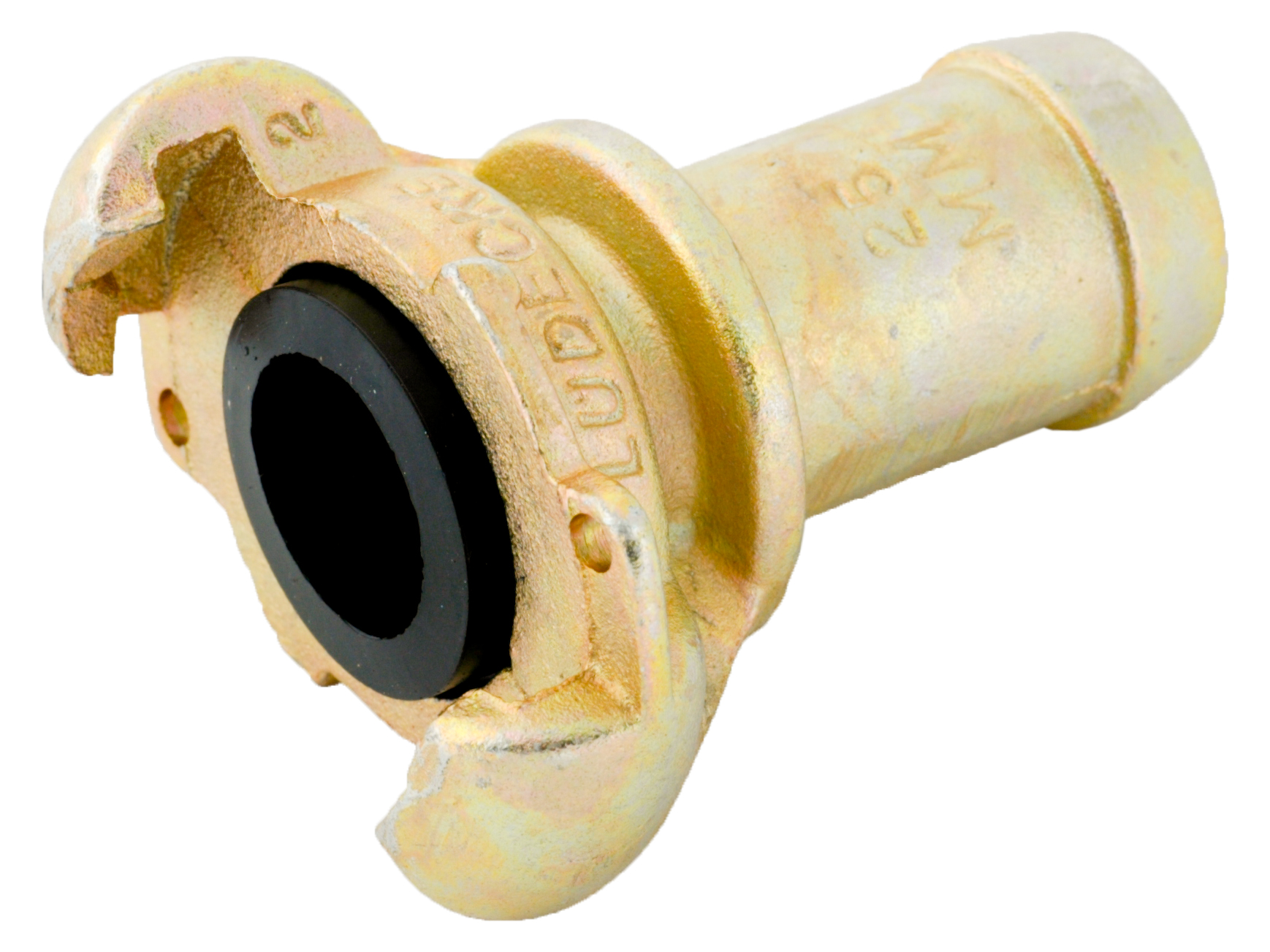

Airpressure coupling hose insert, for safety clip

SELECT VARIANT
Partnumber Description Pressure max. Spigot distance Diameter hose inner
205GHS-1 Safeloc claw coupling type QSH 100 10 bar 42 mm 25 mm
205GHS-1/2 Safeloc claw coupling type QSH 50 10 bar 42 mm 13 mm
205GHS-3/4 Safeloc claw coupling dim. 3/4" type QSH 100 10 bar 42 mm 19 mm
Brand Name
Ludecke

Material
Cast iron

Pressure max.
10

Sealing material
NBR

Spigot distance
42

Standard DIN
DIN 3489

Surface treatment
Yellow passivated, Zinc-plated

Temperature max.
+95

Temperature min.
-40

Width
63
