Valveelement SXE-2 DE

Valveelement SXE-2 DE

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max.

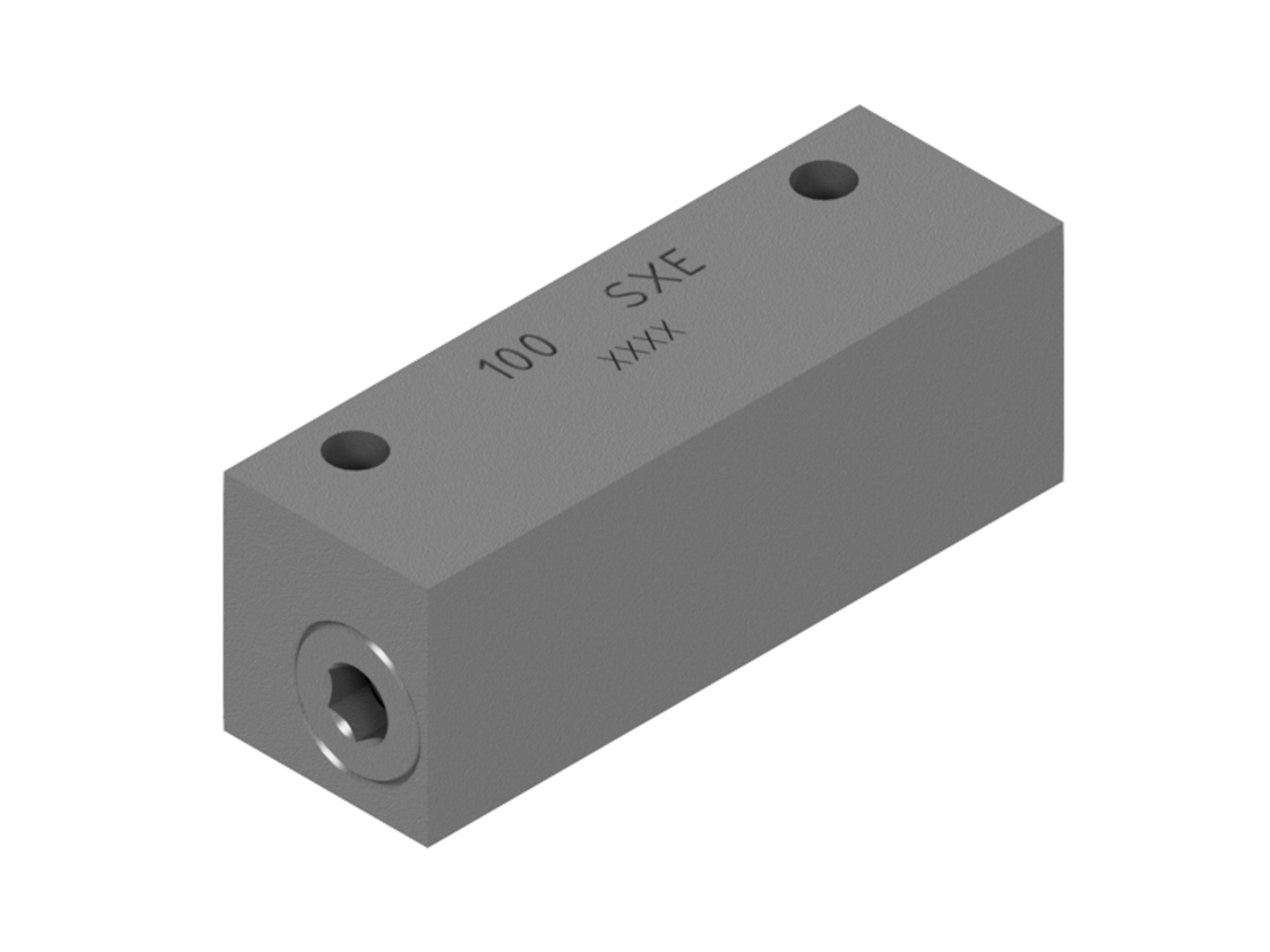

4003981001 SXE2-DE100 300 bar

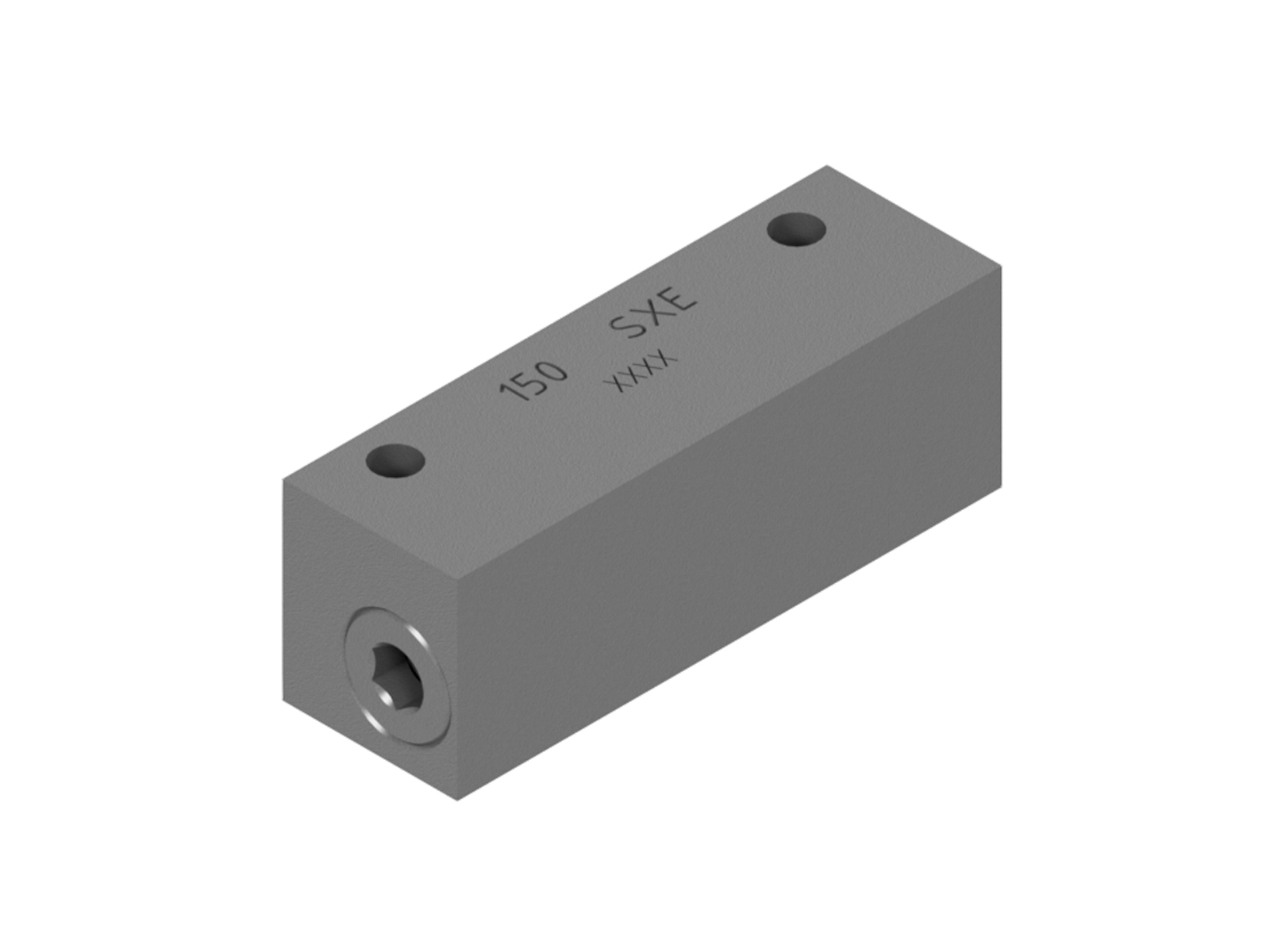

4003982001 SXE-2 DE150 300 bar

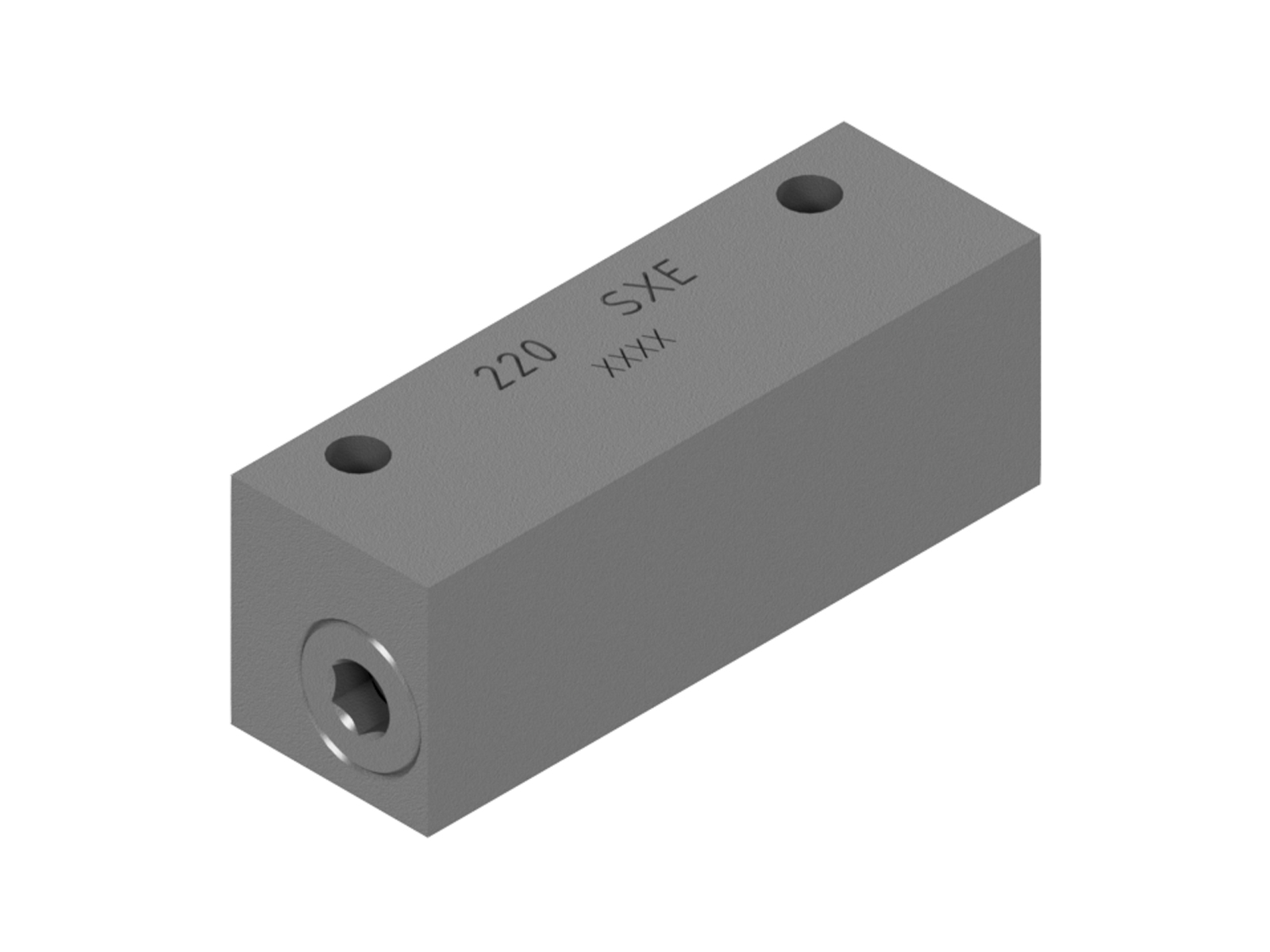

4003983001 SXE-2 DE220 300 bar
4003984001 SXE-2 DE300 300 bar

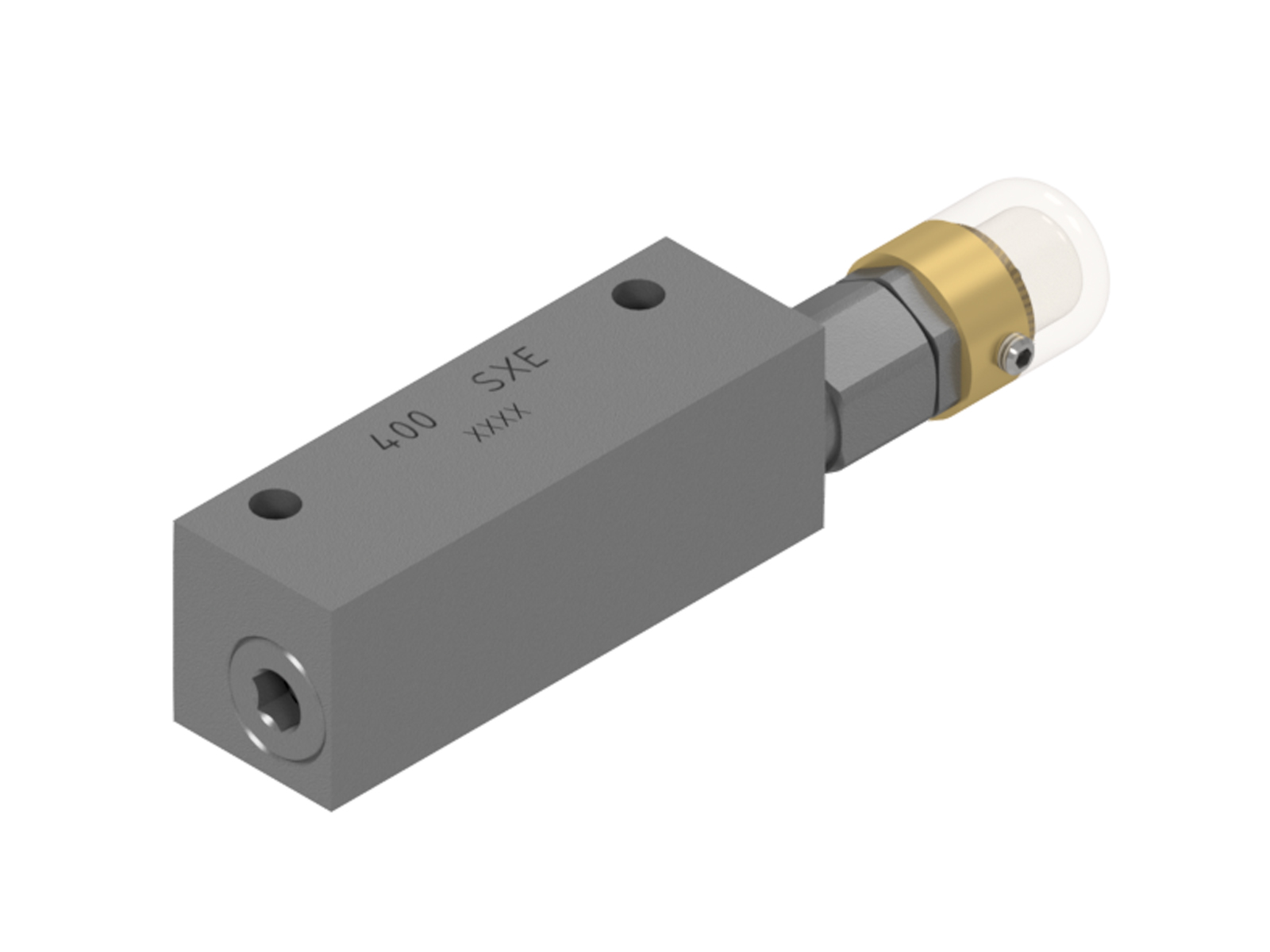

4003985001 SXE-2 DE400 300 bar
40039851H1 SXE-2 DE400 300 bar
40039851N1 SXE-2 DE400 300 bar
40039851N2 SXE-2 DE400 300 bar
4003986001 SXE-2 DE500 300 bar
40039861H1 SXE-2 DE500 300 bar
40039861N1 SXE-2 DE500 300 bar
40039861N2 SXE-2 DE500 300 bar
4003987001 SXE-2 DE620 300 bar
40039871H1 SXE-2 DE620 300 bar
40039871N1 SXE-2 DE620 300 bar
40039871N2 SXE-2 DE620 300 bar
4003988001 SXE-2 DE760 300 bar
40039881H1 SXE-2 DE760 300 bar
40039881N1 SXE-2 DE760 300 bar
40039881N2 SXE-2 DE760 300 bar
Brand Name
Groeneveld-BEKA
Corrosion resistance
720 hours salt spray DIN EN ISO 9227
Grease nipple
No
Indicator pin
No
Material
Steel
Pressure max.
300
Proximity switch
No
Surface treatment
Zinc-Nickel plated
Temperature max.
+80
Temperature min.
-35
Thread inner
G 1/8
Valveelement type
Intermediate element
