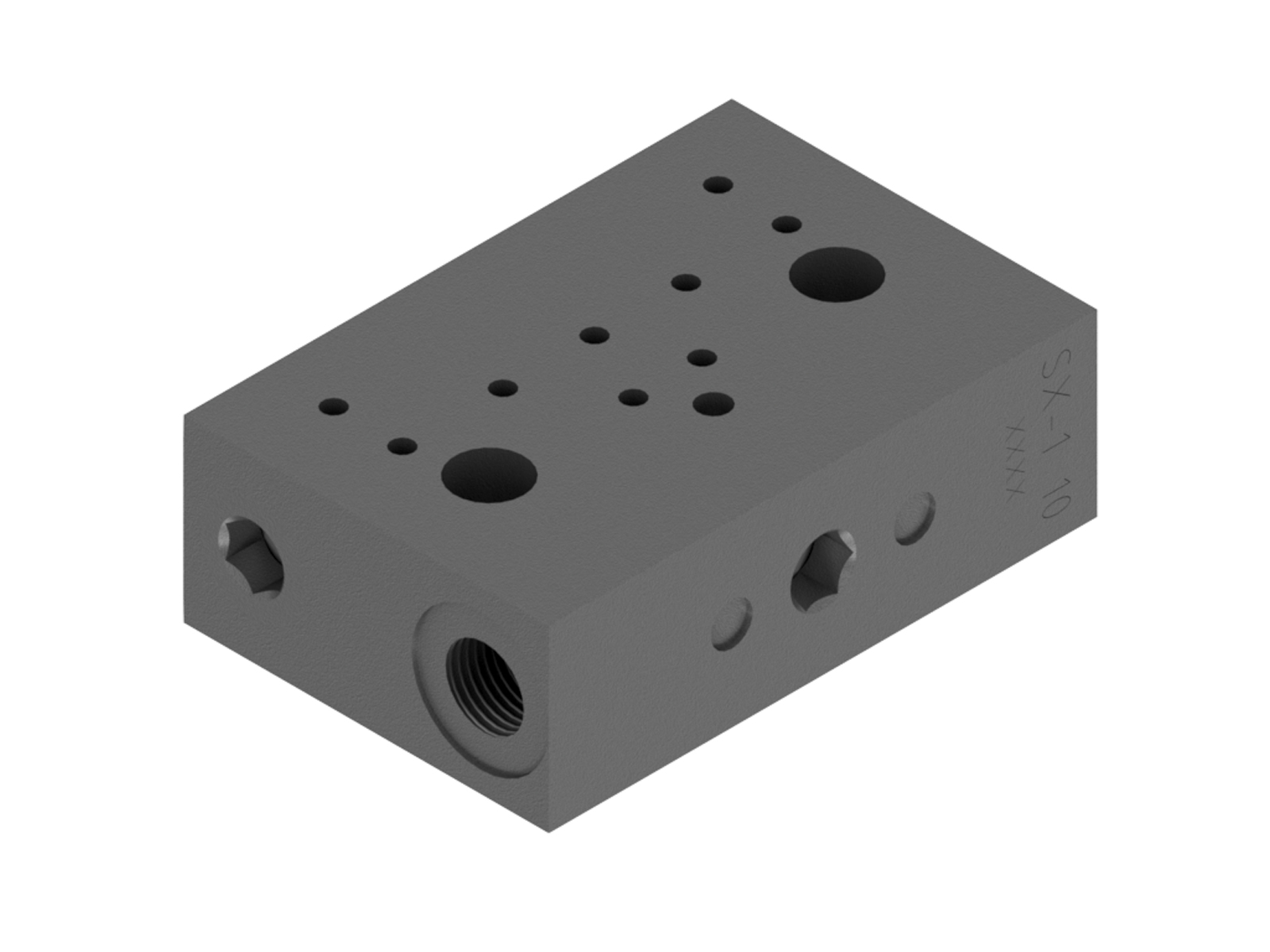

Valveelement SX-1 ME

Valveelement SX-1 ME

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max. Diameter pipe
4000981000 Mittelement SX-1 05 300 bar
4000982000 Mittelement SX-1 10 300 bar
4000983000 Mittelement SX-1 15 300 bar
4000984000 Mittelement SX-1 20 300 bar
4000985000 Mittelement SX-1 25 300 bar

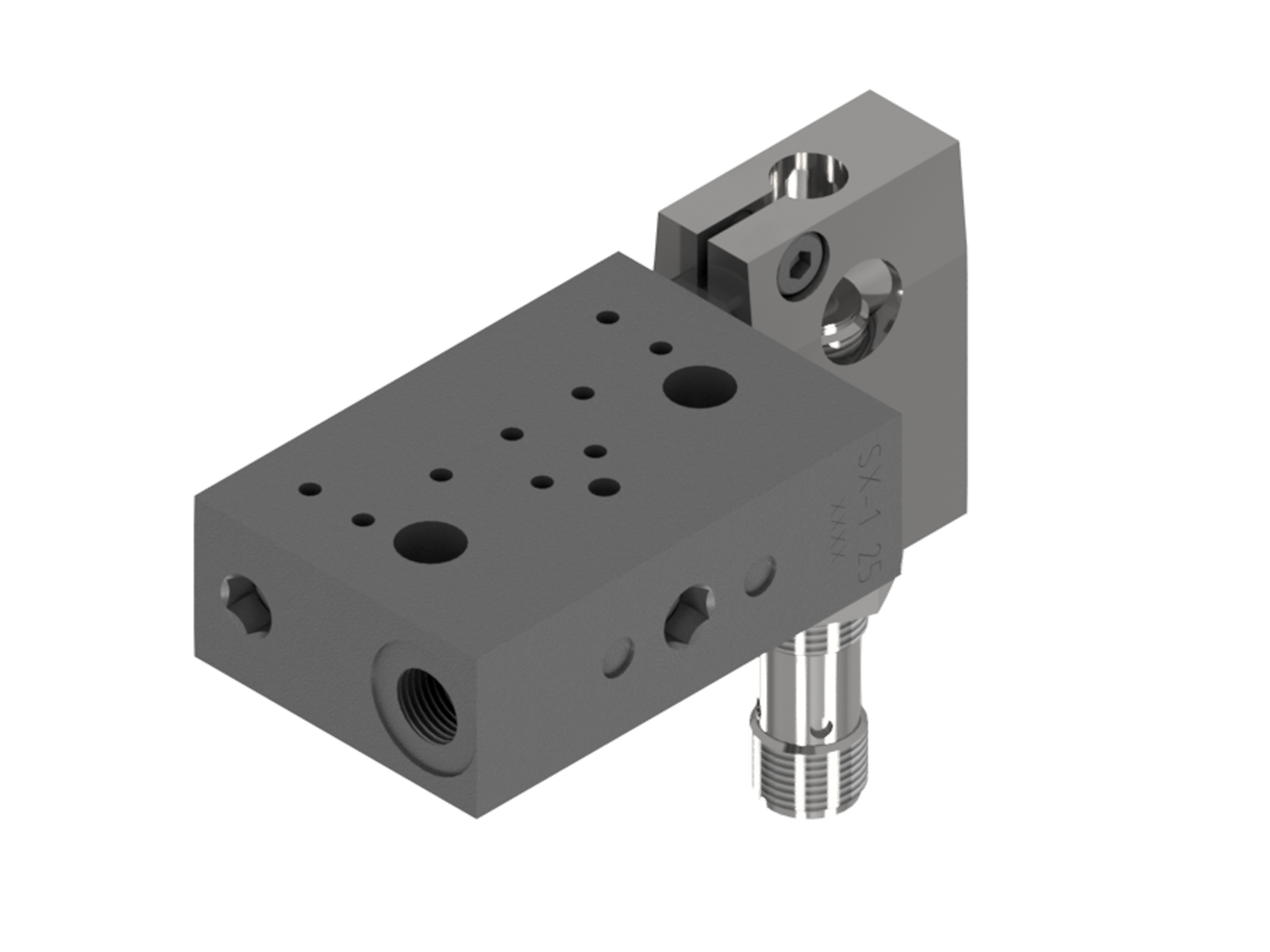

4000985004 Mittelement SX-1 25, Induktiv givare, Vänster 300 bar 6 mm
4000986000 Mittelement SX-1 35 300 bar

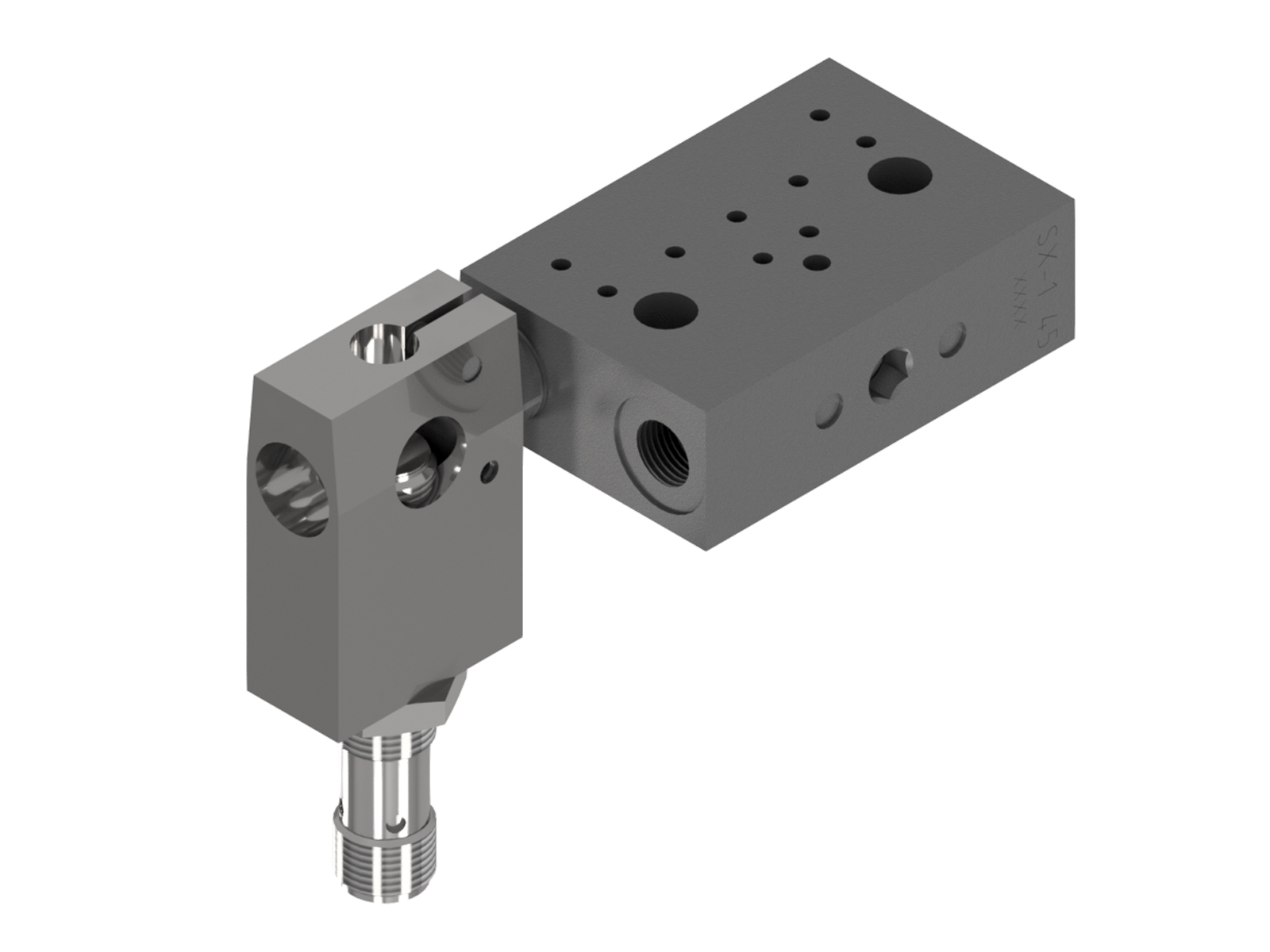

4000986003 Mittelement SX-1 35, Induktiv givare, Höger 300 bar 6 mm
4000987000 Mittelement SX-1 45 300 bar
4000987003 SX-1 ME 45 induktiv givare H 300 bar 6 mm
Brand Name
Groeneveld-BEKA
Corrosion resistance
720 hours salt spray DIN EN ISO 9227
Grease nipple
No
Material
Steel
Pressure max.
300
Surface treatment
Zinc-Nickel plated
Temperature max.
+80
Temperature min.
-30
Thread inner
G 1/8
Valveelement type
Intermediate element
