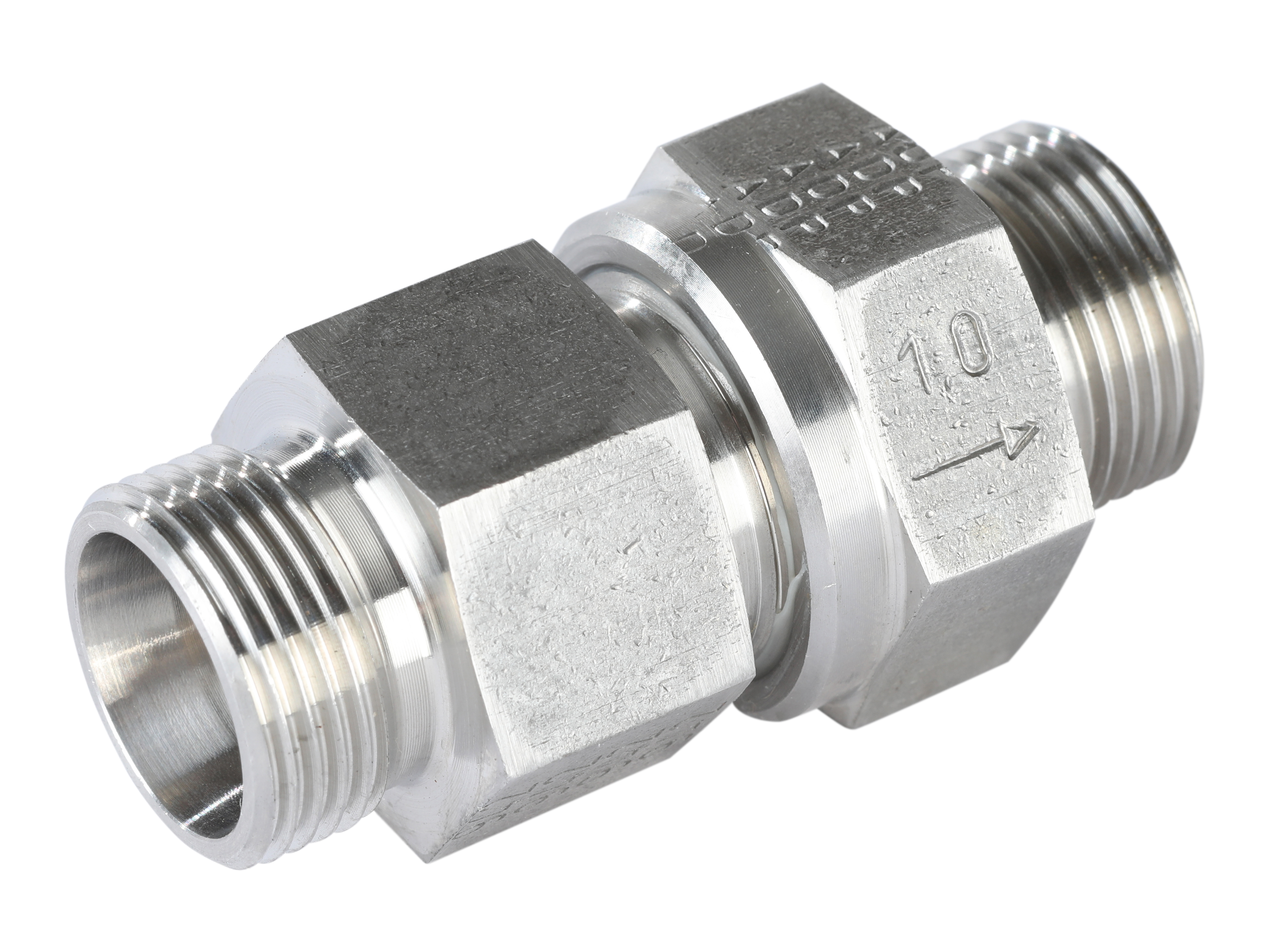

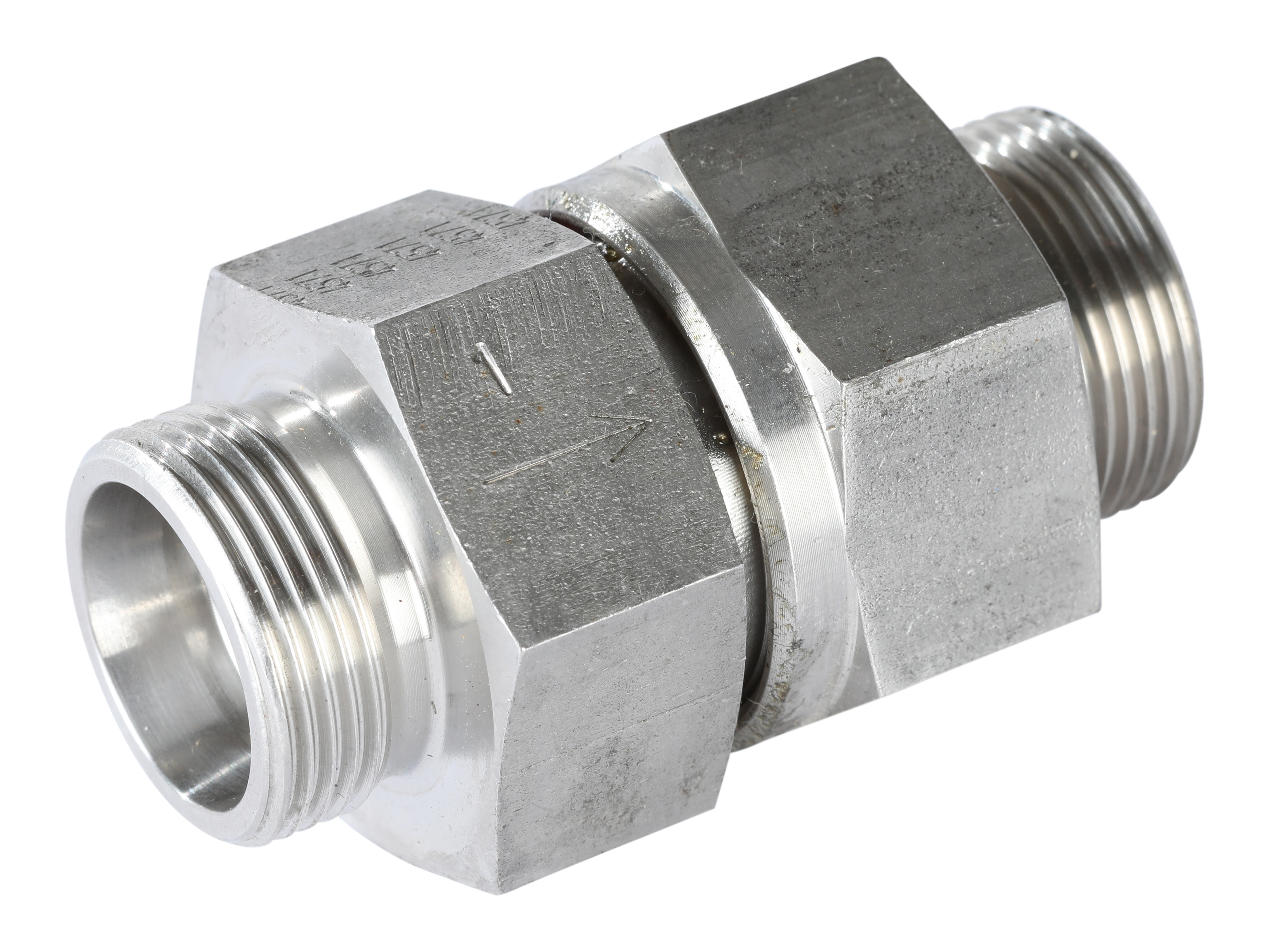

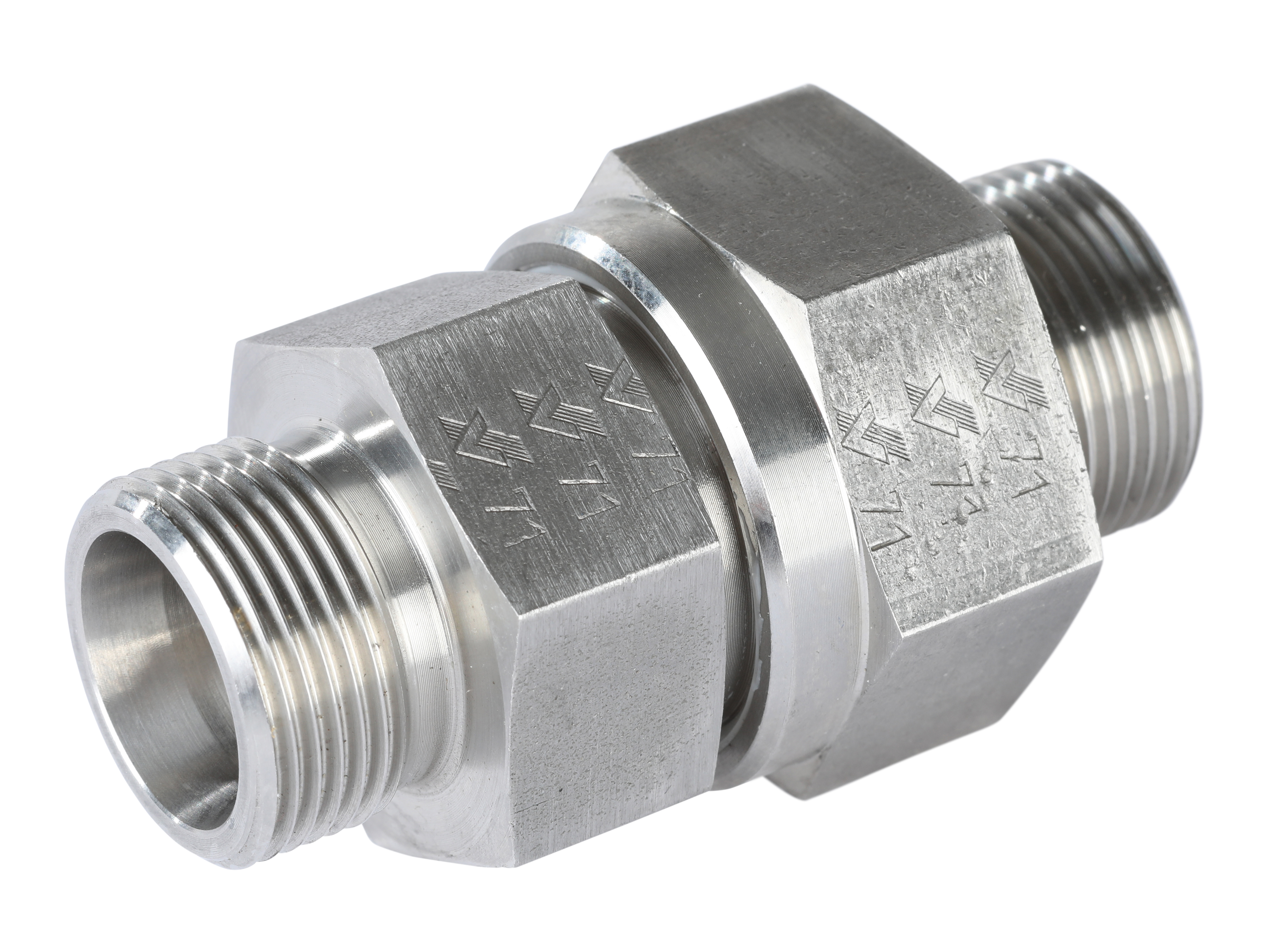

Check valves DIN2353 stainless for 2 union nuts

Check valve - ø12L - 1 bar - AISI316

Check valve - ø15L - 1 bar - AISI316

Check valve - ø22L - 1 bar - AISI316

Check valve - ø30S - 1 bar - AISI316

Check valve - ø38S - 1 bar - AISI316

SELECT VARIANT

Partnumber	Description	Diameter pipe	Pressure opening	Pressure max.
XRHD12L-SY	Check valve - ø12L - 1 bar - AISI316	12 mm	1 bar	315 bar
XRHD15L-SY	Check valve - ø15L - 1 bar - AISI316	15 mm	1 bar	315 bar
XRHD22L-SY	Check valve - ø22L - 1 bar - AISI316	22 mm	1 bar	160 bar
XRHD30S-SY	Check valve - ø30S - 1 bar - AISI316	30 mm	1 bar	250 bar
XRHD38S-SY	Check valve - ø38S - 1 bar - AISI316	38 mm	1 bar	250 bar

Brand Name

Volz

Material

Acid-resistant steel

Material quality

1.4571 / AISI316Ti

Pressure opening

Safety factor

2.5

Temperature max.

+90

Temperature min.

-20
