Insert for test hose DN2, DKO type

SELECT VARIANT
Partnumber Description Angle Pressure max.
4722-04-01-LL PRESSNIPPEL 4722 IM8 SL2.0
4722-06-01 PRESSNIPPEL 4722 IM12 SL2.0
4722-06-01-LL PRESSNIPPEL 4722 IM10 SL2.0 DN2 DKOLL 24grader 6LL

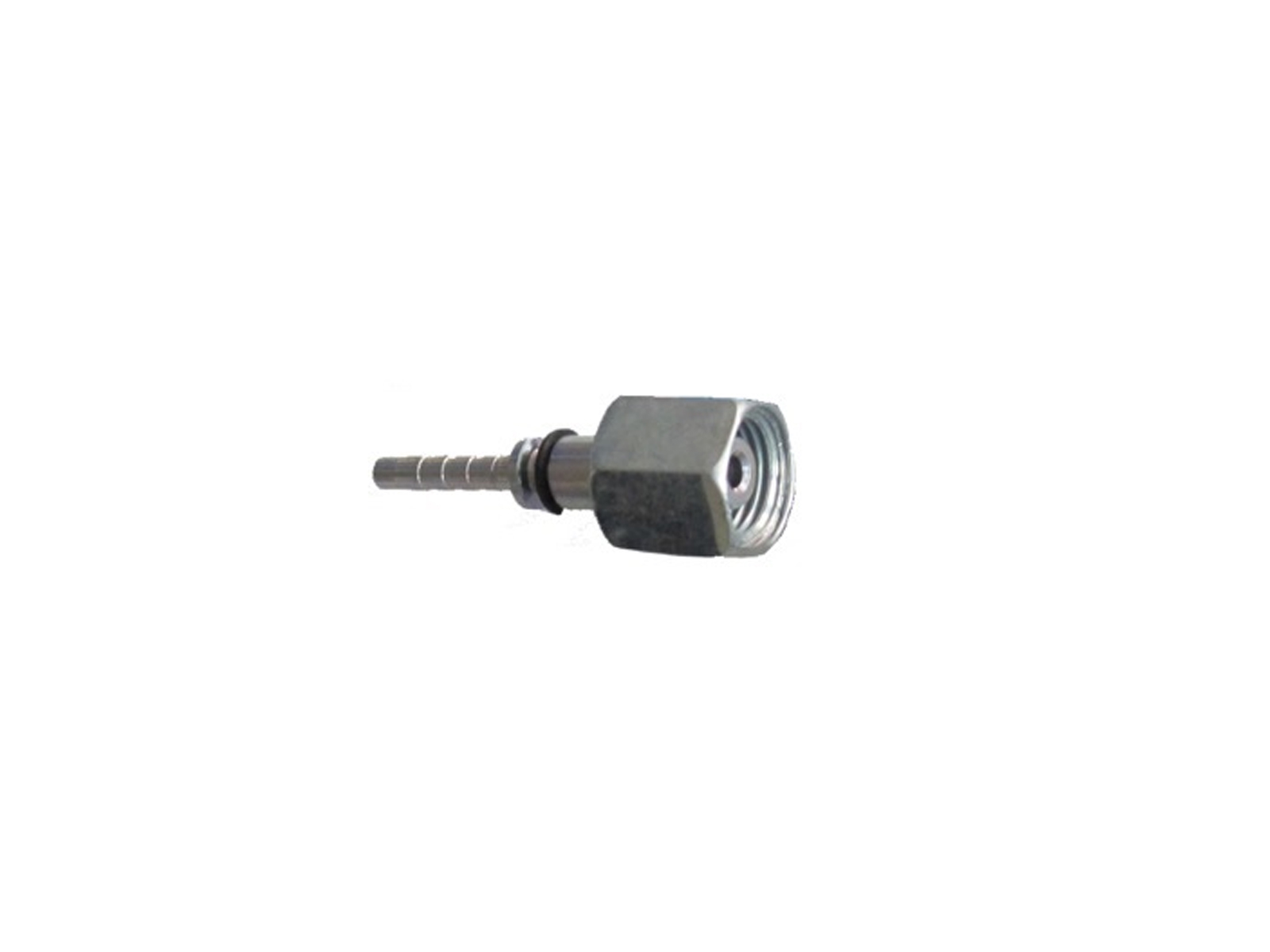

4722-08-01 DKO coupling 8mm DN2 incl. ferrule HE-K-08L-A 0 °
4722-08-01-SY Pressnippel rak DKOL M14X1.5
4722-10-01 PRESSNIPPEL 4722 IM16 SL2.0 0 ° 315 bar
4722-12-01 PRESSNIPPEL 4722 IM18 SL2.0 0 ° 315 bar

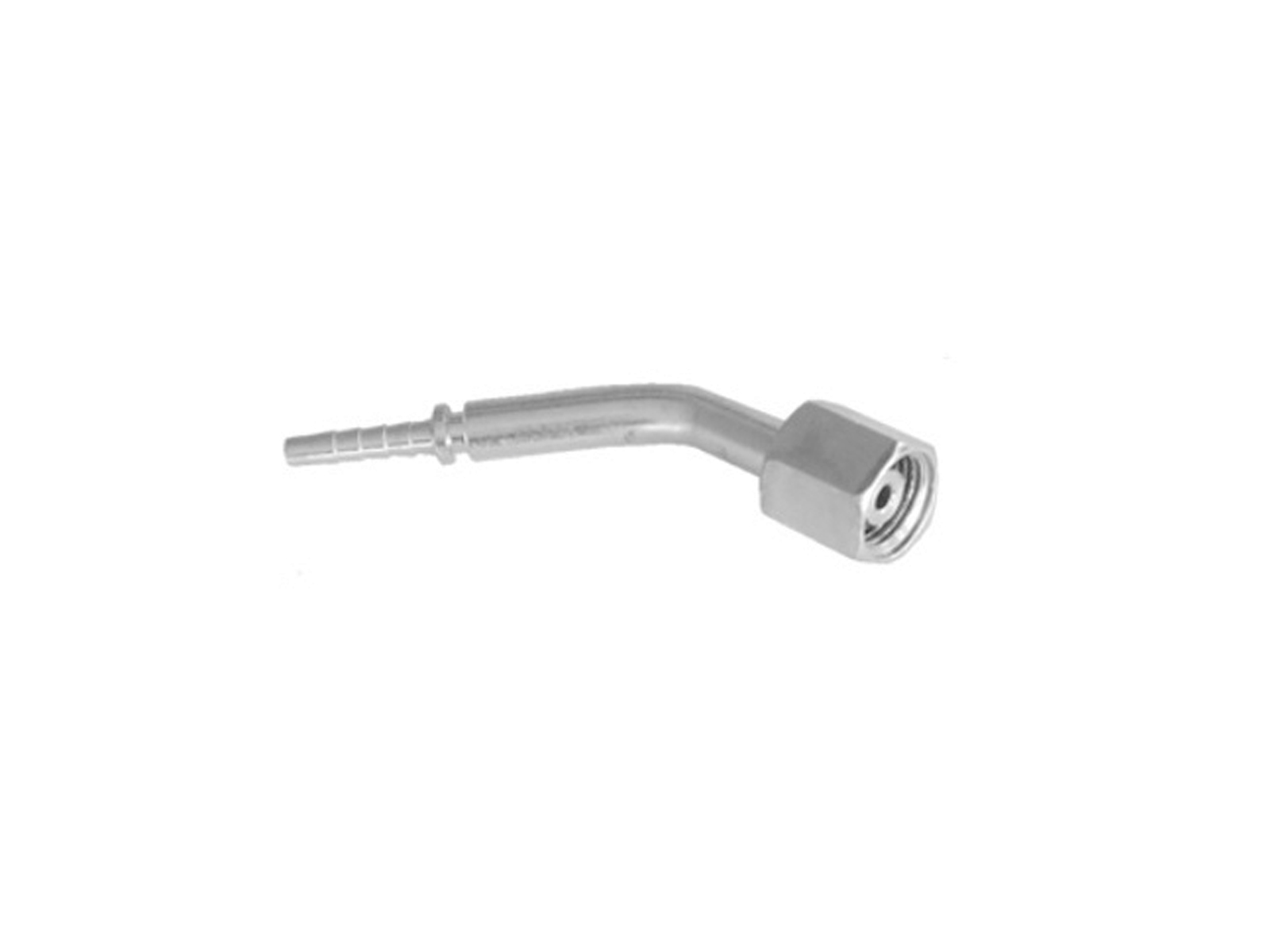

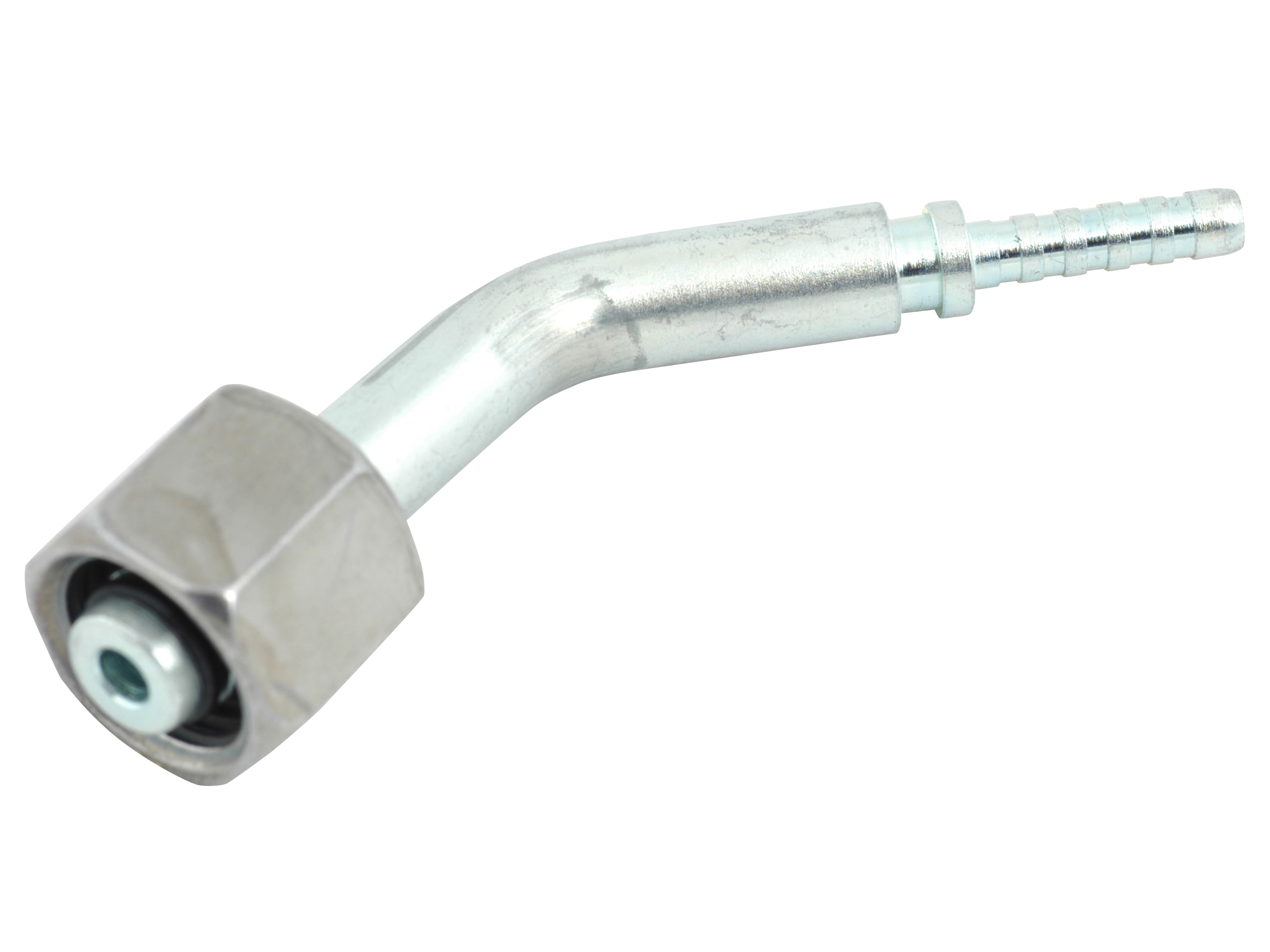

4742-06-01 Pipe coupling ø6Lmm DN2 incl. ferrule HE-R-06L-A 45 ° 315 bar
4742-06-01-LL PRESSNIPPEL 4742 IM10 SL2.0
4742-08-01 PRESSNIPPEL 4742 IM14 SL2.0
4742-10-01 PRESSNIPPEL 4742 IM16 SL2.0
4742-12-01 PRESSNIPPEL 4742 IM18 SL2.0

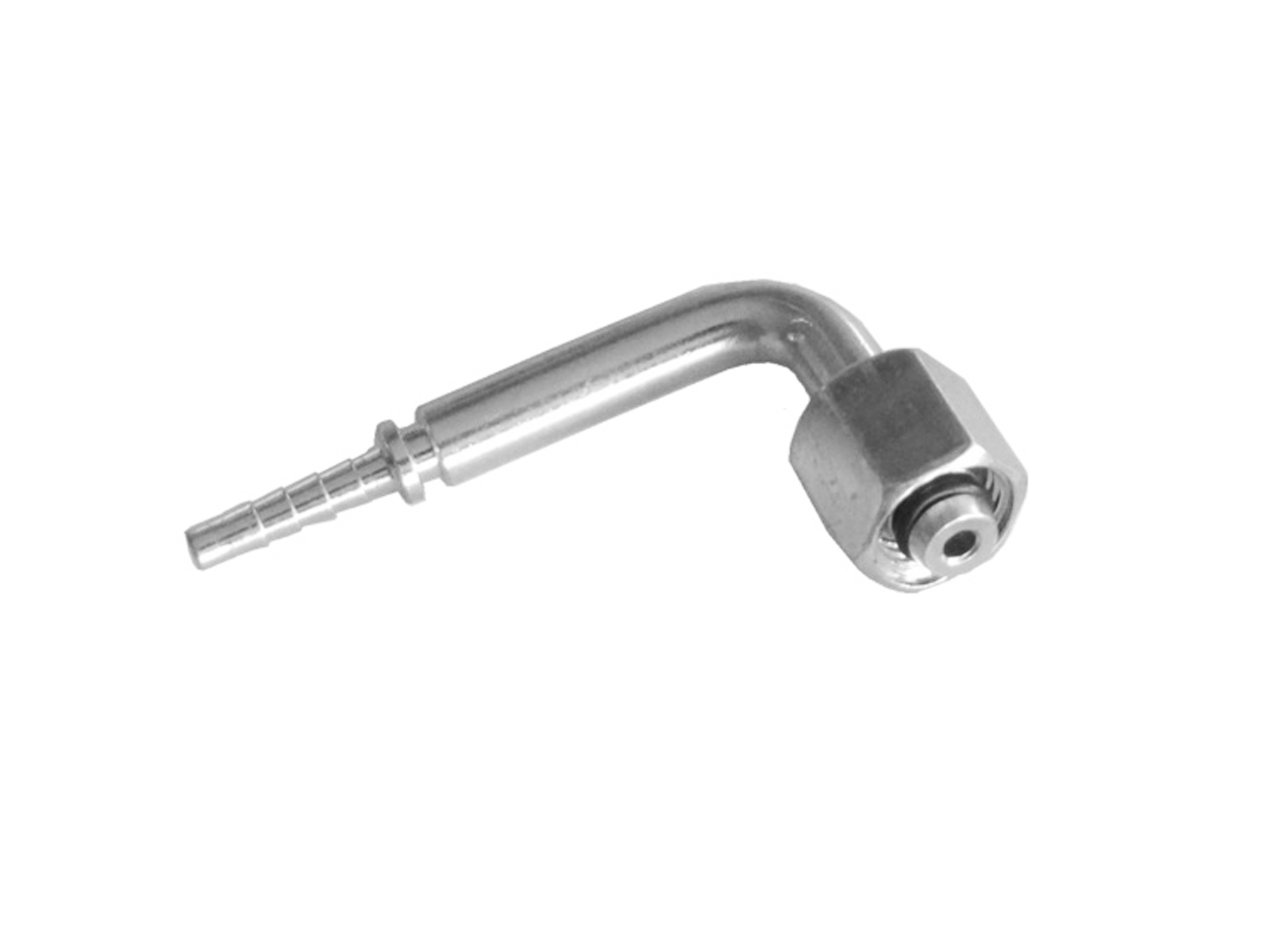

4792-06-01 Pipe coupling ø6Lmm DN2 incl. ferrule HE-L-06L-A 90 ° 315 bar
4792-06-01-LL PRESSNIPPEL 4792 IM10 SL2.0
4792-08-01 Pipe coupling ø8Lmm DN2 incl. ferrule HE-L-08L-A 90 ° 315 bar
4792-10-01 Pipe coupling ø10Lmm DN2 incl ferrule HE-L-10L-A 90 ° 315 bar
4822-06-01 DKO coupling 6mm M14x1,5 0 °
4822-08-01 DKO coupling 8mm M16x1,5 0 °
4822-10-01 PRESSNIPPEL 4822 IM18 SL2.0 0 ° 315 bar
4822-12-01 PRESSNIPPEL 4822 IM20 SL2.0 0 ° 315 bar
4842-06-01 PRESSNIPPEL 4842 IM14 SL2.0 45 ° 315 bar
4842-08-01 PRESSNIPPEL 4842 IM16 SL2.0
4842-10-01 PRESSNIPPEL 4842 IM18 SL2.0
4892-06-01 PRESSNIPPEL 4892 IM14 SL2.0 90 ° 315 bar
4892-08-01 DKO coupling 8mm M16x1,5 90 ° 315 bar
4892-10-01 PRESSNIPPEL 4892 IM18 SL2.0 90 ° 315 bar
Hose coupling type
For separate ferrule

Temperature max.
+100

Temperature min.
-35
