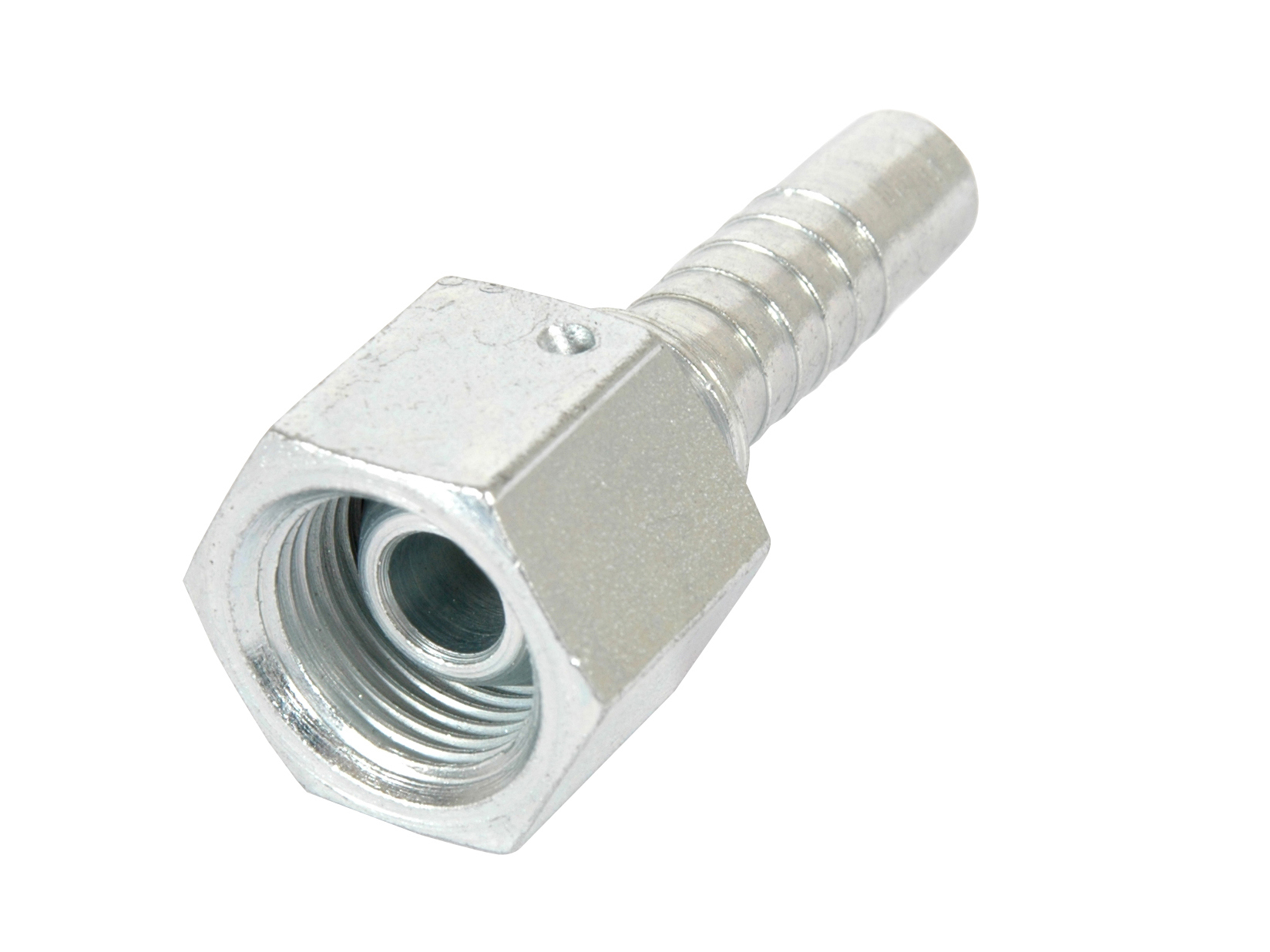

BSP union nut, 60° cone face, Lockwire, "NULW"

SELECT VARIANT
Partnumber Description Thread Hose size Angle Hose coupling type
4022-02-03 Presskoppling Rak, Inv-G1/8'', Ø3/16'', Stiftad mutter G 1/8 BSP 3/16 " 0 ° For separate ferrule
4022-02-04 Presskoppling Rak, Inv-G1/8'', Ø1/4'', Stiftad mutter G 1/8 BSP 1/4 " 0 ° For separate ferrule
4022-04-03 Presskoppling Rak, Inv-G1/4'', Ø3/16'', Stiftad mutter G 1/4 BSP 3/16 " 0 ° For separate ferrule
4022-04-04 Insert 1/4" - 1/4" BSP nut Lockwire G 1/4 BSP 1/4 " 0 ° For separate ferrule
4022-04-06 Insert 3/8" - 1/4" BSP nut Lockwire G 1/4 BSP 3/8 " 0 ° For separate ferrule
4022-06-04 Insert 1/4" - 3/8" BSP nut Lockwire G 3/8 BSP 1/4 " 0 ° For separate ferrule
4022-06-05 Presskoppling Rak, Inv-G3/8'', Ø5/16'', Stiftad mutter G 3/8 BSP 5/16 " 0 ° For separate ferrule
4022-06-06 Insert 3/8" - 3/8" BSP nut Lockwire G 3/8 BSP 3/8 " 0 ° For separate ferrule
4022-06-08 Insert 1/2" - 3/8" BSP nut Lockwire G 3/8 BSP 1/2 " 0 ° For separate ferrule
4022-08-04 Presskoppling Rak, Inv-G1/2'', Ø1/4'', Stiftad mutter G 1/2 BSP 1/4 " 0 ° For separate ferrule
4022-08-08 Insert 1/2" - 1/2" BSP nut Lockwire G 1/2 BSP 1/2 " 0 ° For separate ferrule
4022-08-08-25 Insert 1/2" - 1/2" BSP nut NW25 G 1/2 BSP 1/2 " 0 ° For separate ferrule
4022-08-10 Presskoppling Rak, Inv-G1/2'', Ø5/8'', Stiftad mutter G 1/2 BSP 5/8 " 0 ° For separate ferrule
4022-10-08 Presskoppling Rak, Inv-G5/8'', Ø1/2'', Stiftad mutter G 5/8 BSP 1/2 " 0 ° For separate ferrule
4022-10-10 Insert 5/8" - 5/8" BSP nut Lockwire G 5/8 BSP 5/8 " 0 ° For separate ferrule
4022-12-08 Presskoppling Rak, Inv-G3/4'', Ø1/2'', Stiftad mutter G 3/4 BSP 1/2 " 0 ° For separate ferrule
4022-12-10 Insert 5/82 - 3/4" BSP nut Lockwire G 3/4 BSP 5/8 " 0 ° For separate ferrule
4022-12-12 Insert 3/4" - 3/4" BSP nut Lockwire G 3/4 BSP 3/4 " 0 ° For separate ferrule
4022-12-12-HD Presskoppling Rak, Inv-G3/4'', Ø3/4'', Heavy Duty G 3/4 BSP 3/4 " 0 ° For separate ferrule
4022-16-12 Presskoppling Rak, Inv-G1'', Ø3/4'', Stiftad mutter G 1 BSP 3/4 " 0 ° For separate ferrule
4022-16-16 Insert 1" - 1" BSP nut Lockwire G 1 BSP 1 " 0 ° For separate ferrule
4022-16-16-HD Presskoppling Rak, Inv-G1'', Ø1'', Heavy Duty G 1 BSP 1 " 0 ° For separate ferrule
4022-20-16 Insert 1" - 1.1/4" BSP nut G 1.1/4 BSP 1 " 0 ° For separate ferrule
4022-20-20 Insert 1.1/4" - 1.1/4" BSP nut G 1.1/4 BSP 1.1/4 " 0 ° For separate ferrule
4022-20-20-HD Presskoppling Rak, Inv-G1.1/4'', Ø1.1/4'', Heavy Duty G 1.1/4 BSP 1.1/4 " 0 ° For separate ferrule
4022-24-20 Insert 1.1/4" - 1.1/2" BSP nut G 1.1/2 BSP 1.1/4 " 0 ° For separate ferrule
4022-24-24 Insert 1.1/2" - 1.1/2" BSP nut G 1.1/2 BSP 1.1/2 " 0 ° For separate ferrule
4022-32-32 Insert 2" - 2" BSP nut G 2 BSP 2 " 0 ° For separate ferrule
4022-40-40 Presskoppling Rak, Inv-G2.1/2'', Ø2.1/2'', Stiftad, O-ring G 2.1/2 BSP 2.1/2 " 0 ° For separate ferrule
4022-48-48 Presskoppling Rak, Inv-G3'', Ø3'', Stiftad, O-ring G 3 BSP 3 " 0 ° For separate ferrule
4023-06-04 Presskoppling Rak, Inv-G3/8'', Ø1/4'', Slip-On G 3/8 BSP 1/4 " 0 ° For separate ferrule
4023-08-06 Presskoppling Rak, Inv-G1/2'', Ø3/8'', Slip-On G 1/2 BSP 3/8 " 0 ° For separate ferrule
Angle
0

Brand Name
I.M.M Hydraulics

Hose coupling type
For separate ferrule

Material
Steel

Surface treatment
Electro-galvanized / White chromatized
