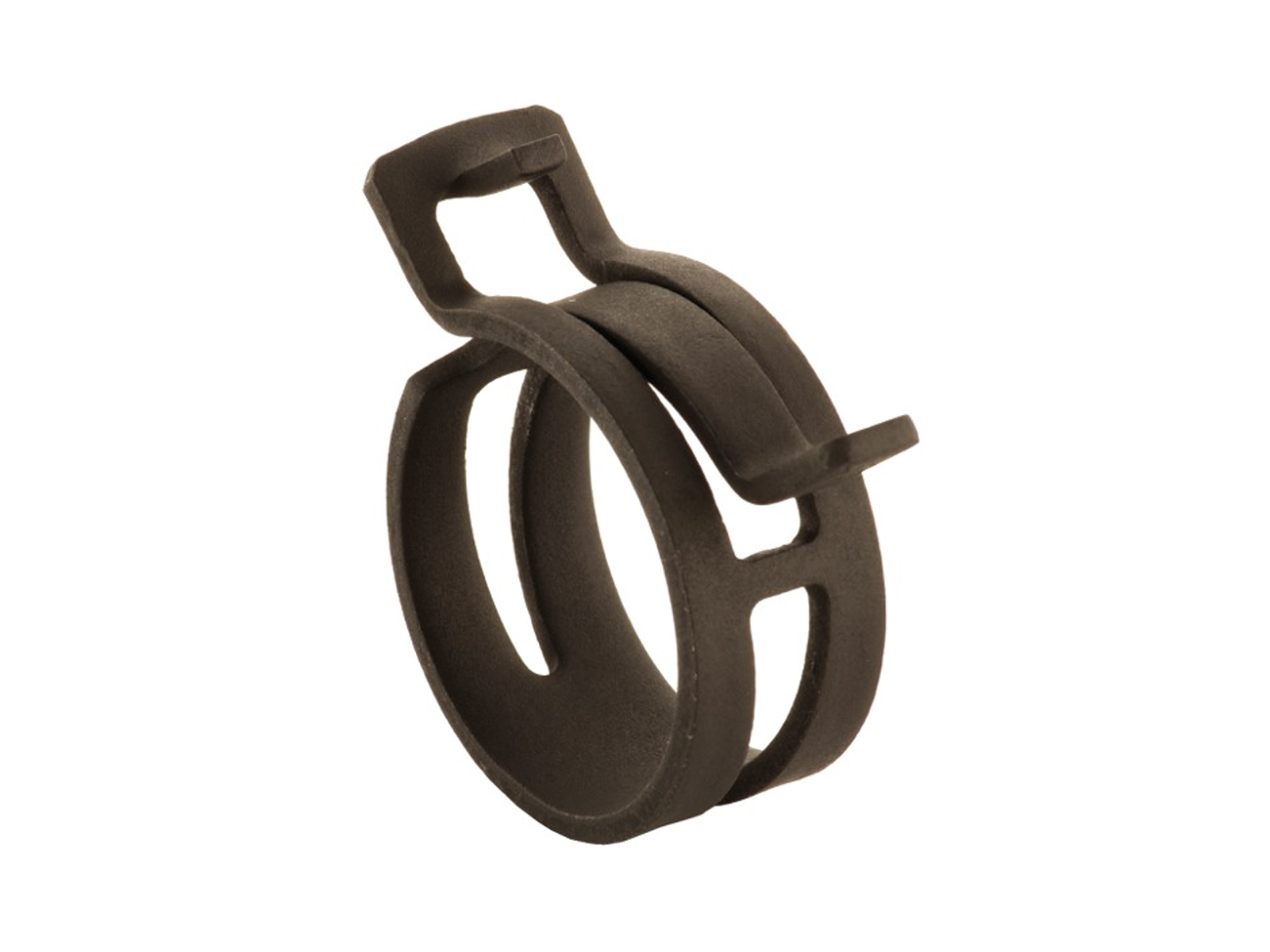

Spring clamps automotive DIN 3021

SELECT VARIANT

Partnumber	Description	Width	Diameter min.	Diameter max.
03031501	Heavy Duty fjäderklamma 17mm, DIN3021, 200st/frp	12 mm	15.6 mm	18.5 mm
03031510	Heavy Duty fjäderklamma 19mm, DIN3021, 200st/frp	12 mm	17.8 mm	20.2 mm
03031528	Heavy Duty Spring -Band 18.4mm DIN3021 200st/box	12 mm
03031536	Heavy Duty fjäderklamma 21mm, DIN3021, 200st/frp	12 mm	19.5 mm	22.5 mm
03031538	Heavy Duty fjäderklamma 22mm, DIN3021, 200st/frp	12 mm	20.5 mm	24.7 mm
03031544	Heavy Duty Spring -Band 21mm DIN3021 200st/box	12 mm
03031552	Heavy Duty Spring -Band 22mm DIN3021 200st/box	12 mm
03031560	Heavy Duty fjäderklamma 25mm, DIN3021, 200st/frp	12 mm	23.5 mm	26.8 mm
03031579	Heavy Duty Spring -Band 24.3mm DIN3021 200st/box	12 mm
03031587	Heavy Duty fjäderklamma 27mm, DIN3021, 200st/frp	12 mm	25.2 mm	29.2 mm
03031595	Heavy Duty Spring -Band 27mm DIN3021 200st/box	12 mm
03031616	Heavy Duty Spring -Band 29.3mm DIN3021 200st/box	12 mm
03031620	Heavy Duty Spring clamp 34mm W1 DIN3021 200st/Frp	12 mm
03031624	Heavy Duty fjäderklamma 35mm, DIN3021, 200st/frp	12 mm	31.5 mm	38 mm
03031640	DIN 3021 SPRINGBAND CLAMP W1 34.5-41.5	12 mm
03031704	Heavy Duty fjäderklamma 46mm, DIN3021, 200st/frp	12 mm	40.5 mm	48.5 mm
03031712	DIN 3021 HEAVY-DUTY SPRINGBAND CLIP 47/12 W1	12 mm
03031720	Heavy Duty fjäderklamma 50mm, DIN302 100st/frp	12 mm
03031739	DIN 3021 HEAVY-DUTY SPRINGBAND CLIP 51/12 W1	12 mm
03031823	DIN 3021 HEAVY-DUTY SPRINGBAND CLIP 30/12 W1	12 mm

Brand Name

Mikalor

Material

Steel

Standard DIN

DIN 3021

Temperature max.

+120

Temperature min.

-40

Width
