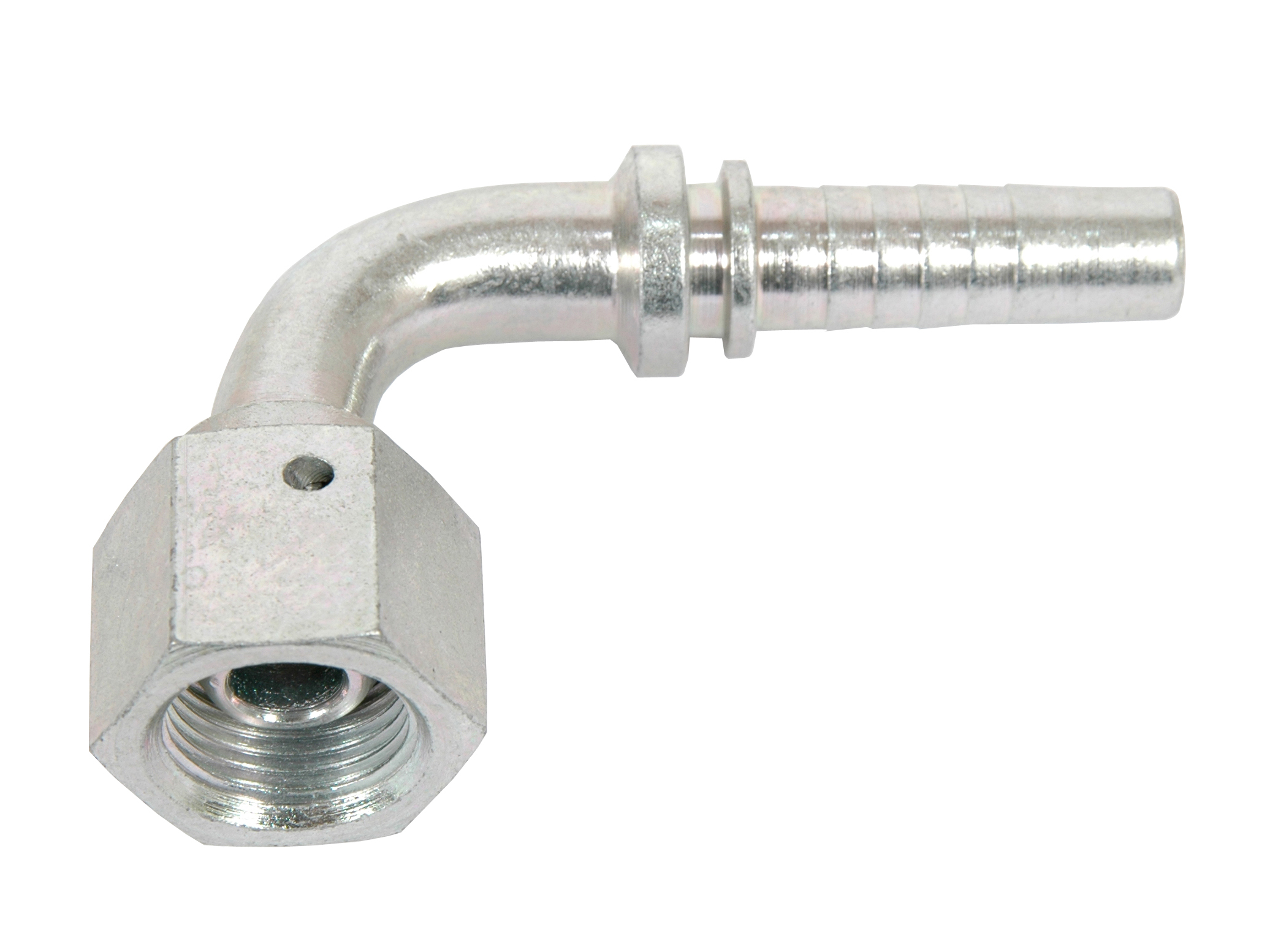

BSP union nut, 60° cone face, 90° elbow, Lockwire, "NU90LW"

SELECT VARIANT
Partnumber Description Thread Hose size Angle Hose coupling type
4091-06-06 Insert 3/8" - 3/8" BSP nut 90° Lockwire G 3/8 BSP 3/8 " 90 ° For separate ferrule
4092-02-03 Presskoppling 90°, Inv-G1/8'', Ø3/16'', Stiftad mutter G 1/8 BSP 3/16 " 90 ° For separate ferrule
4092-04-03 Presskoppling 90°, Inv-G1/4'', Ø3/16'', Stiftad mutter G 1/4 BSP 3/16 " 90 ° For separate ferrule
4092-04-04 Insert 1/4, 1/4 BSP nut 90° lockwire G 1/4 BSP 1/4 " 90 ° For separate ferrule
4092-04-06 Insert 3/8" - 1/4" BSP nut 90° lockwire G 1/4 BSP 3/8 " 90 ° For separate ferrule
4092-06-04 Insert 1/4" - 3/8" BSP nut 90° lockwire G 3/8 BSP 1/4 " 90 ° For separate ferrule
4092-06-05 Presskoppling 90°, Inv-G3/8'', Ø5/16'', Stiftad mutter G 3/8 BSP 5/16 " 90 ° For separate ferrule
4092-06-06 Insert 3/8" - 3/8" BSP nut 90° Lockwire G 3/8 BSP 3/8 " 90 ° For separate ferrule
4092-06-08 Insert 1/2" - 3/8" BSP nut 90° Lockwire G 3/8 BSP 1/2 " 90 ° For separate ferrule
4092-08-06 Insert 3/8" - 1/2" BSP nut 90° Lockwire G 1/2 BSP 3/8 " 90 ° For separate ferrule
4092-08-08 Insert 1/2" - 1/2" BSP nut 90° Lockwire G 1/2 BSP 1/2 " 90 ° For separate ferrule
4092-08-08-25 Insert 1/2" - 1/2" BSP nut 90° NW25 G 1/2 BSP 1/2 " 90 ° For separate ferrule
4092-10-08 Presskoppling 90°, Inv-G5/8'', Ø1/2'', Stiftad mutter G 5/8 BSP 1/2 " 90 ° For separate ferrule
4092-10-10 Insert 5/8" - 5/8" BSP nut 90° Lockwire G 5/8 BSP 5/8 " 90 ° For separate ferrule
4092-12-08 Presskoppling 90°, Inv-G3/4'', Ø1/2'', Stiftad mutter G 3/4 BSP 1/2 " 90 ° For separate ferrule
4092-12-10 Insert 5/82 - 3/4" BSP nut 90° Lockwire G 3/4 BSP 5/8 " 90 ° For separate ferrule
4092-12-12 Insert 3/4" - 3/4" BSP nut 90° Lockwire G 3/4 BSP 3/4 " 90 ° For separate ferrule
4092-12-16 Presskoppling 90°, Inv-G3/4'', Ø1'', Stiftad mutter G 3/4 BSP 1 " 90 ° For separate ferrule
4092-16-12 Presskoppling 90°, Inv-G1'', Ø3/4'', Stiftad mutter G 1 BSP 3/4 " 90 ° For separate ferrule
4092-16-16 Insert 1" - 1" BSP nut 90° Lockwire G 1 BSP 1 " 90 ° For separate ferrule
4092-32-24 Presskoppling 90°, Inv-G2'', Ø1.1/2'', Stiftad mutter G 2 BSP 1.1/2 " 90 ° For separate ferrule
Angle
90

Brand Name
I.M.M Hydraulics

Hose coupling type
For separate ferrule

Material
Steel

Surface treatment
Electro-galvanized / White chromatized
