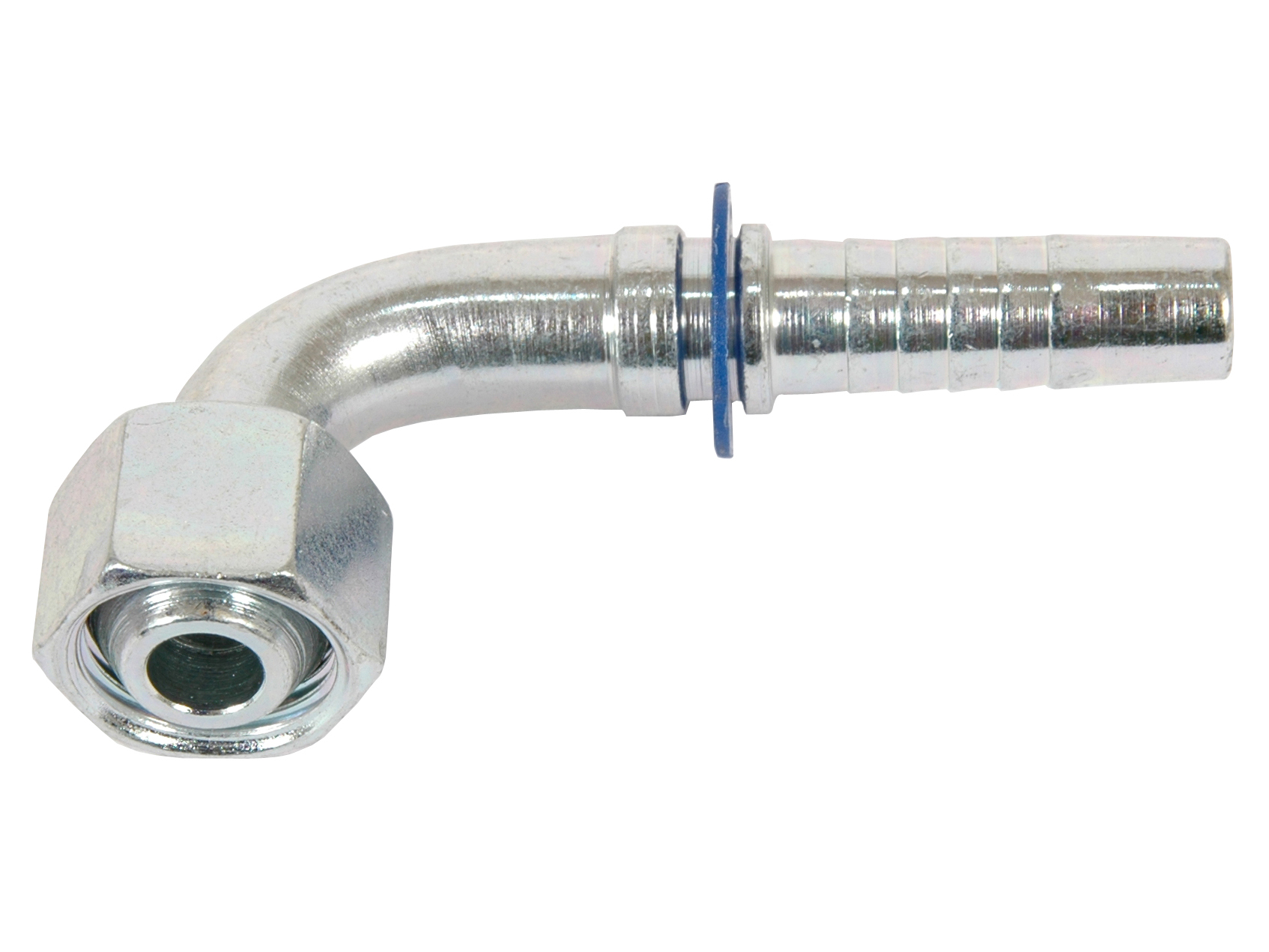

BSP union nut, 60° cone face, 90° elbow "NU90"

VÄLJ VARIANT
Artikelnummer Beskrivning Gänga Slangdimension Vinkel Slangkopplingstyp
4091-02-03 Presskoppling 90°, Inv-G1/8'', Ø3/16'', Pressad mutter G 1/8 BSP 3/16 " 90 ° For separate ferrule
4091-02-04 Presskoppling 90°, Inv-G1/8'', Ø1/4'', Pressad mutter G 1/8 BSP 1/4 " 90 ° For separate ferrule
4091-04-03 Insert 3/16" - 1/4" BSP nut 90° G 1/4 BSP 3/16 " 90 ° For separate ferrule
4091-04-04 Presskoppling 90°, Inv-G1/4'', Ø1/4'', Pressad mutter G 1/4 BSP 1/4 " 90 ° For separate ferrule
4091-04-05 Presskoppling 90°, Inv-G1/4'', Ø5/16'', Pressad mutter G 1/4 BSP 5/16 " 90 ° For separate ferrule
4091-06-04 Insert 1/4" - 3/8" BSP nut 90° G 3/8 BSP 1/4 " 90 ° For separate ferrule
4091-06-05 Insert 5/16" - 3/8" BSP nut 90° G 3/8 BSP 5/16 " 90 ° For separate ferrule
4091-06-08 Presskoppling 90°, Inv-G3/8'', Ø1/2'', Pressad mutter G 3/8 BSP 1/2 " 90 ° For separate ferrule
4091-08-04 Presskoppling 90°, Inv-G1/2'', Ø1/4'', Pressad mutter G 1/2 BSP 1/4 " 90 ° For separate ferrule
4091-08-06 Insert 3/8" - 1/2" BSP nut 90° G 1/2 BSP 3/8 " 90 ° For separate ferrule
4091-08-08 Presskoppling 90°, Inv-G1/2'', Ø1/2'', Pressad mutter G 1/2 BSP 1/2 " 90 ° For separate ferrule
4091-08-10 Presskoppling 90°, Inv-G1/2'', Ø5/8'', Pressad mutter G 1/2 BSP 5/8 " 90 ° For separate ferrule
4091-10-08 Insert 1/2" - 5/8" BSP nut 90° G 5/8 BSP 1/2 " 90 ° For separate ferrule
4091-10-10 Insert 5/8" - 5/8" BSP nut 90° G 5/8 BSP 5/8 " 90 ° For separate ferrule
4091-12-08 Insert 1/2" - 3/4" BSP nut 90° G 3/4 BSP 1/2 " 90 ° For separate ferrule
4091-12-10 Insert 5/8" - 3/4" BSP nut 90° G 3/4 BSP 5/8 " 90 ° For separate ferrule
4091-12-12 Insert 3/4" - 3/4" BSP nut 90° G 3/4 BSP 3/4 " 90 ° For separate ferrule
4091-16-12 Insert 3/4" - 1" BSP nut 90° G 1 BSP 3/4 " 90 ° For separate ferrule
4091-16-16 Insert 1" - 1" BSP nut 90° G 1 BSP 1 " 90 ° For separate ferrule
4091-24-24 Presskoppling 90°, Inv-G1.1/2'', Ø1.1/2'', Pressad mutter G 1.1/2 BSP 1.1/2 " 90 ° For separate ferrule
4091-32-32 Presskoppling 90°, Inv-G2'', Ø2'', Pressad mutter G 2 BSP 2 " 90 ° For separate ferrule
4092-02-04 Insert 1/4" - 1/8" BSP nut 90° G 1/8 BSP 1/4 " 90 ° For separate ferrule
4092-20-16 Insert 1" - 1.1/4" BSP nut 90° G 1.1/4 BSP 1 " 90 ° For separate ferrule
4092-20-20 Insert 1.1/4" - 1.1/4" BSP nut 90° G 1.1/4 BSP 1.1/4 " 90 ° For separate ferrule
4092-24-20 Insert 1.1/4" - 1.1/2" BSP nut 90° G 1.1/2 BSP 1.1/4 " 90 ° For separate ferrule
4092-24-24 Insert 1.1/2" - 1.1/2" BSP nut 90° G 1.1/2 BSP 1.1/2 " 90 ° For separate ferrule
4092-32-32 Insert 2" - 2" BSP nut 90° G 2 BSP 2 " 90 ° For separate ferrule
4093-04-04 Insert 1/4" - 1/4" BSP nut 90° G 1/4 BSP 1/4 " 90 ° For separate ferrule
4093-04-04-17 Presskoppling 90°, Inv-G1/4'', Ø1/4'', Slip-On mutter, NV 17 G 1/4 BSP 1/4 " 90 ° For separate ferrule
4093-06-04 Presskoppling 90°, Inv-G3/8'', Ø1/4'', Slip-On mutter G 3/8 BSP 1/4 " 90 ° For separate ferrule
4093-06-06 Presskoppling 90°, Inv-G3/8'', Ø3/8'', Slip-On mutter G 3/8 BSP 3/8 " 90 ° For separate ferrule
4093-06-06-19 Presskoppling 90°, Inv-G3/8'', Ø3/8'', Slip-On mutter, NV 19 G 3/8 BSP 3/8 " 90 ° For separate ferrule
4093-08-06 Presskoppling 90°, Inv-G1/2'', Ø3/8'', Slip-On mutter G 1/2 BSP 3/8 " 90 ° For separate ferrule
4093-08-08 Insert 1/2" - 1/2" BSP nut 90° G 1/2 BSP 1/2 " 90 ° For separate ferrule
Slangkopplingstyp
For separate ferrule

Tillverkningsmaterial
Steel

Vinkel
90
