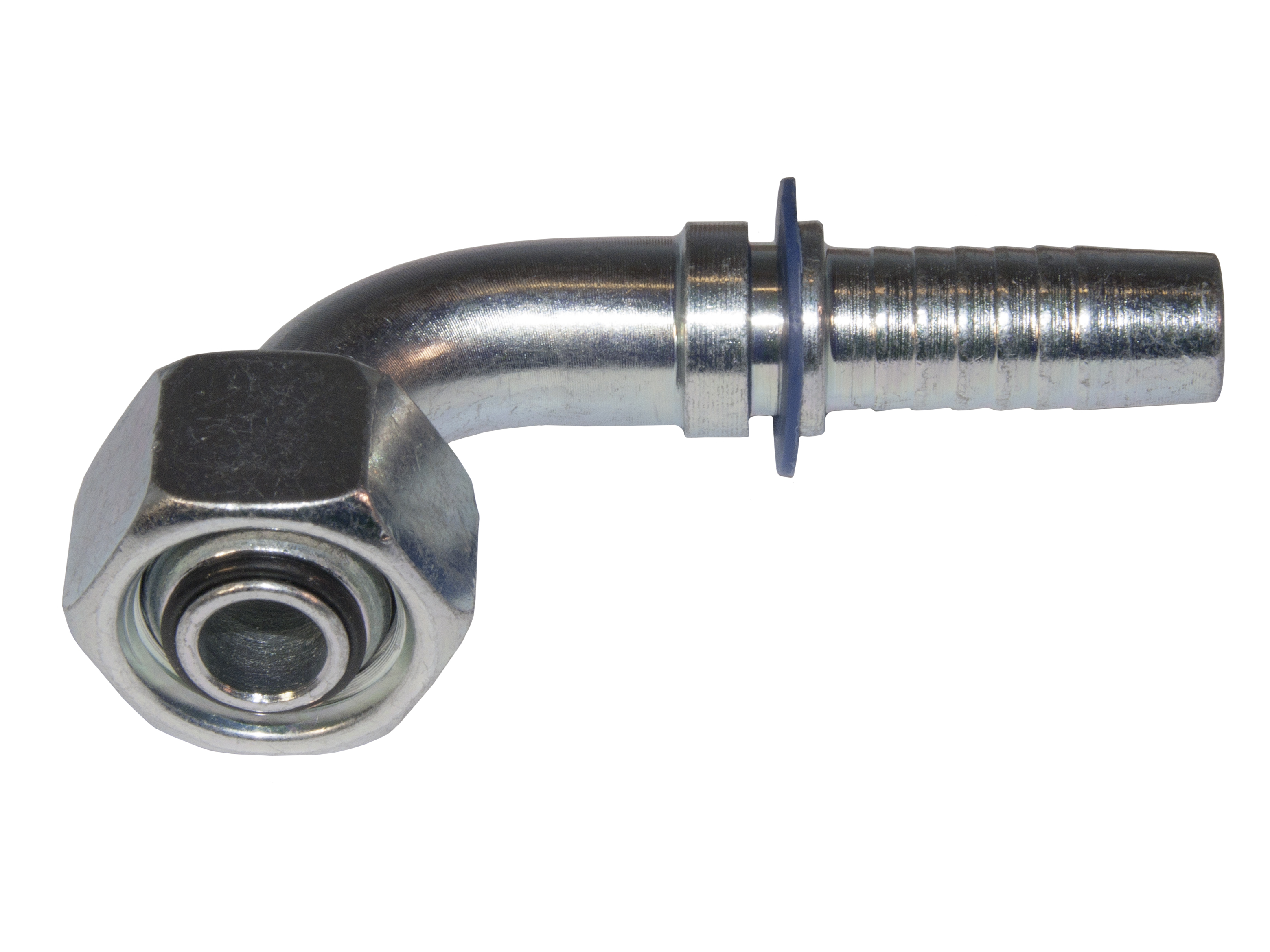

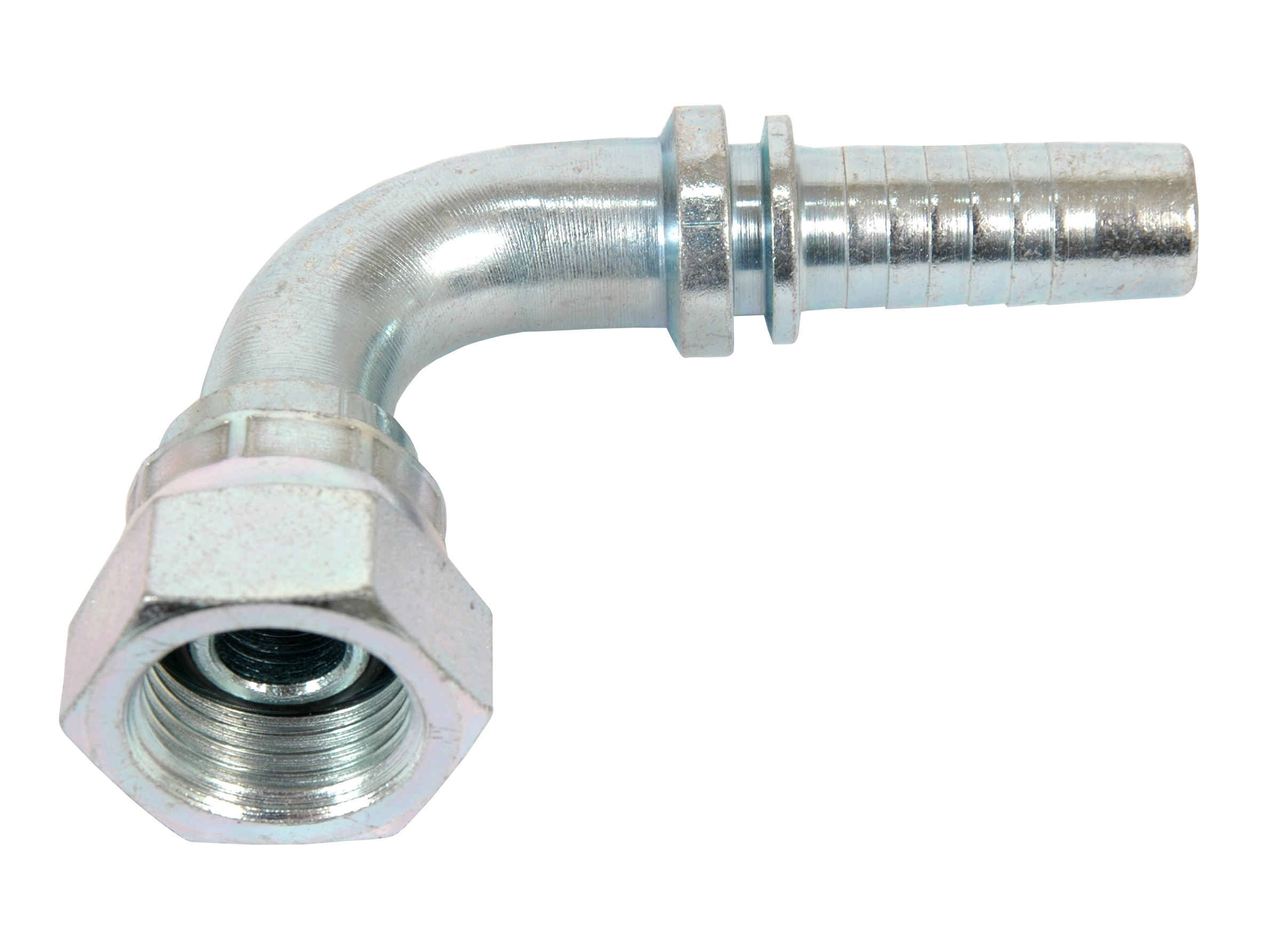

BSP union nut, 60° cone face and o-ring, 90° elbow "NO90"

SELECT VARIANT
Partnumber Description Thread Hose size Angle Hose coupling type
4094-04-04 Presskoppling 90°, Inv-G1/4'', Ø1/4'', Slip-On, O-ringstätad G 1/4 BSP 1/4 " 90 ° For separate ferrule
4094-06-06 Presskoppling 90°, Inv-G3/8'', Ø3/8'', Slip-On, O-ringstätad G 3/8 BSP 3/8 " 90 ° For separate ferrule
4094-08-08 Presskoppling 90°, Inv-G1/2'', Ø1/2'', Slip-On, O-ringstätad G 1/2 BSP 1/2 " 90 ° For separate ferrule
4094-12-12 Presskoppling 90°, Inv-G3/4'', Ø3/4'', Slip-On, O-ringstätad G 3/4 BSP 3/4 " 90 ° For separate ferrule
4094-16-16 Presskoppling 90°, Inv-G1'', Ø1'', Slip-On, O-ringstätad G 1 BSP 1 " 90 ° For separate ferrule
4095-04-04 Insert 1/4" - 1/4" BSP nut 90° w. cap G 1/4 BSP 1/4 " 90 ° For separate ferrule
4095-08-08 Insert 1/2" - 1/2" BSP nut 90° w. cap O-ring G 1/2 BSP 1/2 " 90 ° For separate ferrule
4095-12-12 Insert 3/4" - 3/4" BSP nut 90° O-ring G 3/4 BSP 3/4 " 90 ° For separate ferrule
Angle
90

Brand Name
I.M.M Hydraulics

Hose coupling type
For separate ferrule

Material
Steel

Sealing material
NBR

Surface treatment
Electro-galvanized / White chromatized
