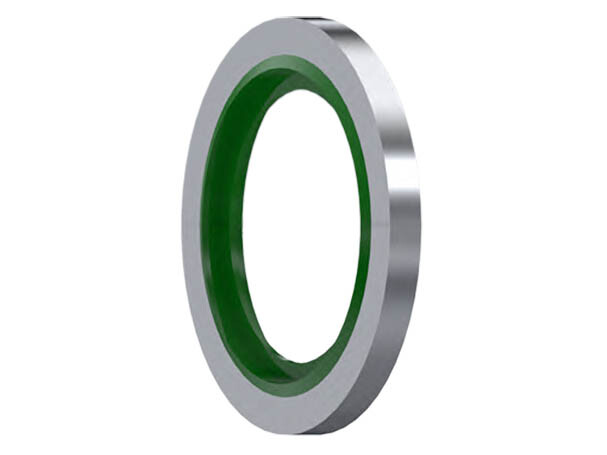

Bonded seals stainless viton seal

SELECT VARIANT
Partnumber Description Diameter inner Diameter outer Fits to BSP thread Fits on metric thread
GBM-10-SY-VITON GUMMISTÅLBRICKA GBM M10
GBM-12-SY-VITON GUMMISTÅLBRICKA GBM M12
GBM-14-SY-VITON GUMMISTÅLBRICKA GBM M14
GBM-16-SY-VITON GUMMISTÅLBRICKA GBM M16
GBM-18-SY-VITON GUMMISTÅLBRICKA GBM M18
GBM-20-SY-VITON GUMMISTÅLBRICKA GBM M20
GBM-22-SY-VITON GUMMISTÅLBRICKA GBM M22
GBM-24-SY-VITON GUMMISTÅLBRICKA GBM M24
GBM-26-SY-VITON GUMMISTÅLBRICKA GBM M26
GBM-36-SY-VITON GUMMISTÅLBRICKA GBM M36
GBM-42-SY-VITON GUMMISTÅLBRICKA GBM M42
GBR-02-SY-VITON GUMMISTÅLBRICKA GBR G1/8 G 1/8
GBR-04-SY-VITON Bonded seal - 13.74x20.57x2.00 - 1/4"BSP & 1/2"UN - AISI316 13.74 mm 20.57 mm G 1/4
GBR-06-SY-VITON Bonded seal - 17.28x23.80x2.00 - 3/8"BSP - AISI316 FKM 17.28 mm 23.8 mm G 3/8
GBR-08-SY Bonded seal - 21.54x28.58x2.50 - 1/2"BSP - AISI316 FKM 21.54 mm G 1/2 M20
GBR-08-SY-VITON Bonded seal - 21.54x28.58x2.50 - 1/2"BSP - AISI316 FKM 21.54 mm G 1/2 M20
GBR-10-SY-VITON GUMMISTÅLBRICKA GBR G5/8 VITON
GBR-12-SY-VITON Bonded seal - 27.05x34.93x2.00 - 3/4"BSP - AISI316 FKM 27.05 mm 34.93 mm G 3/4
GBR-16-SY-VITON Bonded seal - 33.89x42.80x2,50 - 1"BSP 1.5/16"UN - AISI316 33.89 mm 42.8 mm G 1
GBR-20-SY-VITON GUMMISTÅLBRICKA GBR G1.1/4 42.93 mm G 1.1/4
GBR-24-SY-VITON GUMMISTÅLBRICKA GBR G1.1/2 G 1.1/2
GBR-32-SY-VITON Bonded seal - 60.58x73.03x2.50 - 2"BSP - AISI316 FKM 60.58 mm 73.03 mm G 2
Material
Stainless steel

Material quality
1.4571 / AISI316Ti

Sealing material
FKM/FPM (Viton®)

Temperature max.
+200

Temperature min.
-10
