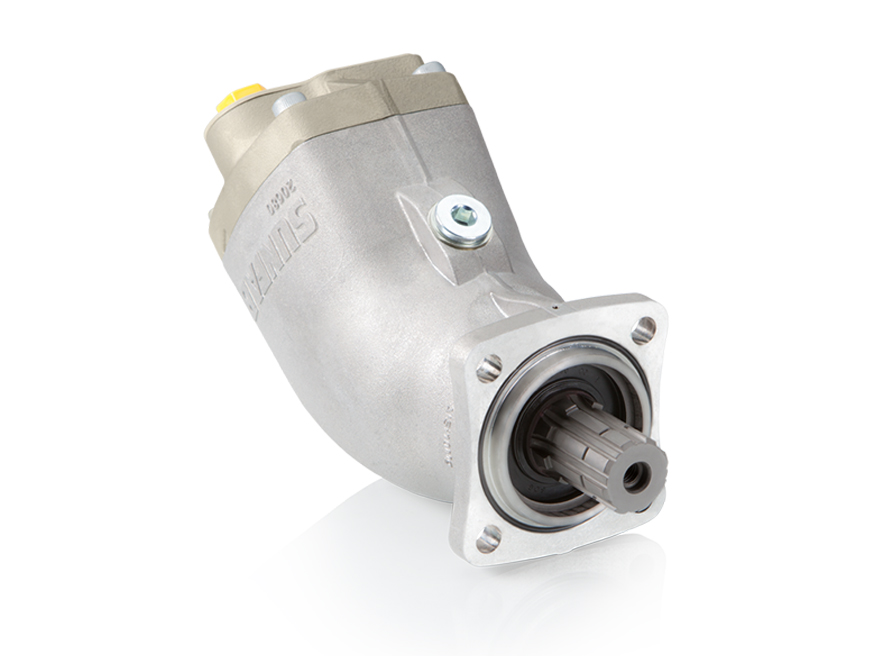

Piston pumps Sunfab - SAP / SAPT

Piston pumps Sunfab - SAP / SAPT

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Continuous rotation max. Pressure continous max. Rotation direction
SAP-012L-N-DL4-L35-S0S-000 Kolvpump Sunfab 12cc 12.6 cm3 2300 rpm 400 bar Left (CCW)
SAP-017L-N-DL4-L35-S0S-000 Kolvpump Sunfab 17cc 17 cm3 2300 rpm 400 bar Left (CCW)
SAP-025L-N-DL4-L35-S0S-000 Kolvpump Sunfab 25cc 25.4 cm3 2300 rpm 400 bar Left (CCW)
SAP-034L-N-DL4-L35-S0S-000 Kolvpump Sunfab 34cc 34.2 cm3 2300 rpm 400 bar Left (CCW)
SAP-047L-V-DL4-L35-S0S-000 Kolvpump Sunfab 47cc 47.1 cm3 400 bar Left (CCW)
SAP-056L-V-DL4-L35-S0S-000 Piston pump Sunfab 56 cm3 SAP-056L-V-DL4-L35-S0S-000 56.7 cm3 400 bar Left (CCW)
SAP-064L-V-DL4-L35-S0S-000 Kolvpump Sunfab 64cc 63.5 cm3 400 bar Left (CCW)
SAP-084L-V-DL4-L35-S0S-200 SAP.084 L VDL4 L35 S0S-200 83.6 cm3 1800 rpm 400 bar Left (CCW)
SAP-084R-V-DL4-L35-S0S-200 SAP-084R-V-DL4-L35-S0S-200 83.6 cm3 1800 rpm 400 bar Right (CW)
SAP-108L-V-DL4-L35-S0S-200 Kolvpump Sunfab 108cc, High Speed 108 cm3 400 bar Left (CCW)
SAP-108R-V-DL4-L35-S0S-000 SAP-108R-V-DL4-L35-S0S-000 108 cm3 400 bar Right (CW)
SAP-108R-V-DL4-L35-S0S-200 SAP-108R-V-DL4-L35-S0S-200 108 cm3 400 bar Right (CW)
SAPT130L-N-DL4-L35-S0S-000 Kolvpump Sunfab 130cc 130 cm3 1500 rpm 400 bar Left (CCW)
SAPT130R-N-DL4-L35-S0S-000 Kolvpump Sunfab 130cc 130 cm3 400 bar
Brand Name
Sunfab
Mounting flange
ISO 7653-D
Number of mounting holes
4
Port inlet
Sunfab std.
Port position
Rear
Pressure continous max.
400
Shaft type
DIN 5462 / ISO 14
