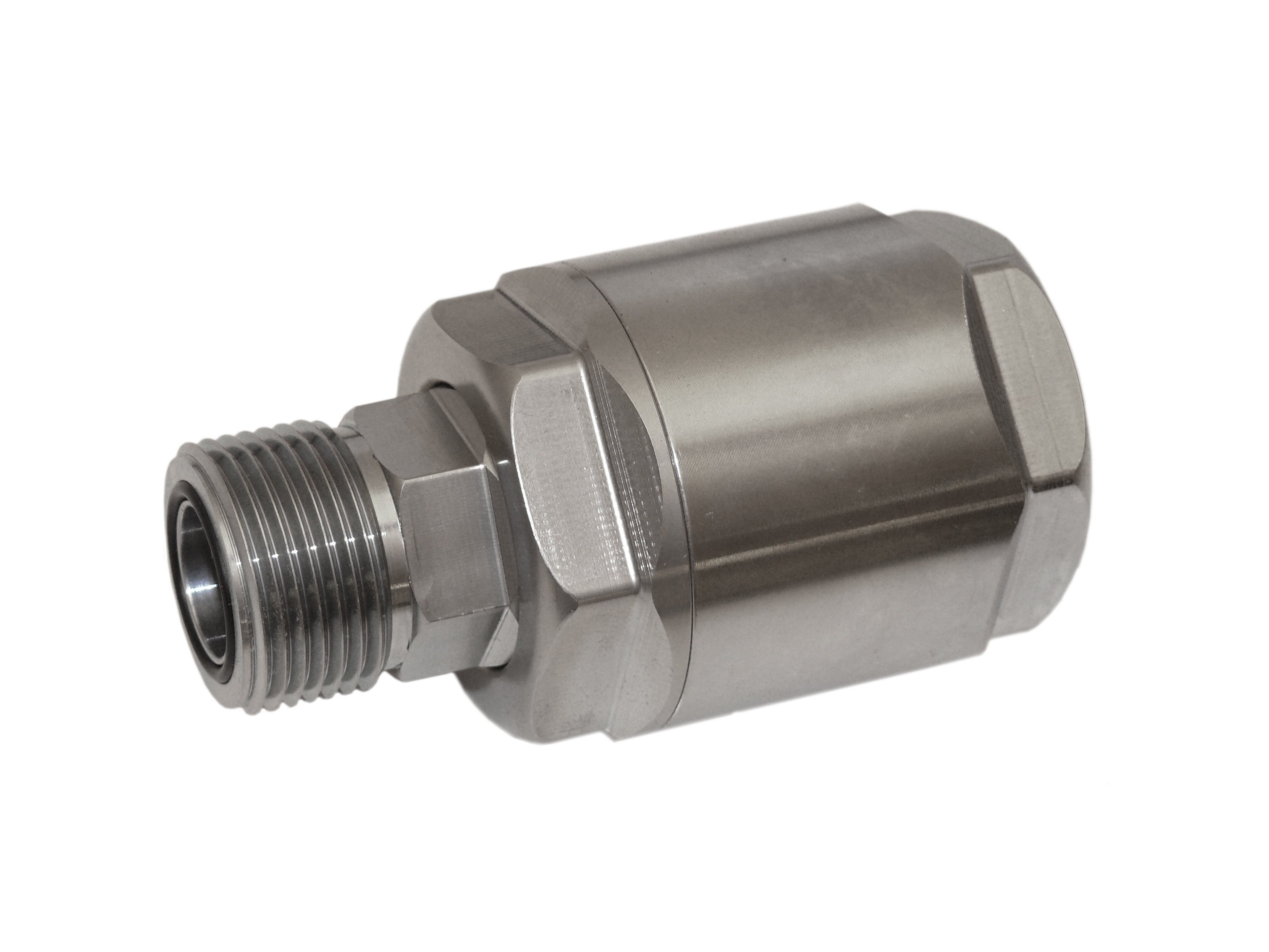

Swivel - ORFS male x ORFS female

Svivel Rak, Utv/Inv-ORFS 13/16''-16

Svivel Rak, Utv/Inv-ORFS 1-14, 420 bar

Svivel Rak, Utv/Inv-ORFS 1.3/16''-12 420 BAR

Svivel Rak, Utv/Inv-ORFS 1.7/16''-12 420 BAR

Svivel Rak, Utv/Inv-ORFS 1.11/16-12, 380 bar

Svivel Rak, Utv/Inv-ORFS 2-12, 310 bar

SELECT VARIANT

Partnumber	Description	Thread outer	Thread inner	Pressure max.
SZ-S08M-S08F	Svivel Rak, Utv/Inv-ORFS 13/16''-16			430 bar
SZ-S10M-S10F	Svivel Rak, Utv/Inv-ORFS 1-14, 420 bar	1-14 ORFS	1-14 ORFS
SZ-S12M-S12F	Svivel Rak, Utv/Inv-ORFS 1.3/16''-12 420 BAR			430 bar
SZ-S16M-S16F	Svivel Rak, Utv/Inv-ORFS 1.7/16''-12 420 BAR			430 bar
SZ-S20M-S20F	Svivel Rak, Utv/Inv-ORFS 1.11/16-12, 380 bar	1.11/16-12 ORFS	1.11/16-12 ORFS
SZ-S24M-S24F	Svivel Rak, Utv/Inv-ORFS 2-12, 310 bar	2-12 ORFS	2-12 ORFS

Angle

Corrosion resistance

350 hours salt spray ASTM B-117

Material

Steel

Sealing material

FKM/FPM (Viton®)

Surface treatment

White zinc plated

Temperature max.

+180

Temperature min.

-40
