    • Cutting rings DIN2353 stainless - DS-71 / DPR-SY

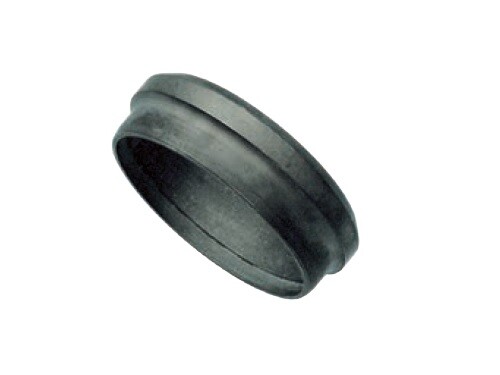

    Cutting rings DIN2353 stainless - DS-71 / DPR-SY

    Välj variant
    VÄLJ VARIANT
    VÄLJ VARIANT
    Artikelnummer Beskrivning Diameter pipe Series Pressure max.
    D04LL-SY Cutting ring ø4 1.4571 4 mm LL 100 bar
    D06LL-SY Cutting ring ø6 1.4571 6 mm LL 100 bar
    D08LL-SY Cutting ring ø8 1.4571 8 mm LL 100 bar
    DPR06LS-SY Cutting ring ø6 1.4571 6 mm L, S 500 bar
    DPR08LS-SY Cutting ring ø 08 1.4571 8 mm L, S 500 bar
    DPR10LS-SY Cutting ring ø 10 1.4571 10 mm L, S 500 bar
    DPR12LS-SY Cutting ring ø 12 1.4571 12 mm L, S 400 bar
    DPR14S-SY Cutting ring ø 14 1.4571 14 mm S 630 bar
    DPR15L-SY Cutting ring ø 15 1.4571 15 mm L 400 bar
    DPR16S-SY Cutting ring ø 16 1.4571 16 mm S 630 bar
    DPR18L-SY Cutting ring ø 18 1.4571 18 mm L 400 bar
    DPR20S-SY Cutting ring ø 20 1.4571 20 mm S 420 bar
    DPR22L-SY Cutting ring ø 1.4571 22 mm L 250 bar
    DPR25S-SY Cutting ring ø 25 1.4571 25 mm S 420 bar
    DPR28L-SY Cutting ring ø 1.4571 28 mm L 250 bar
    DPR30S-SY Cutting ring ø 30 1.4571 30 mm S 420 bar
    DPR35L-SY Cutting ring ø 35 1.4571 35 mm L 250 bar
    DPR38S-SY Cutting ring ø 38 1.4571 38 mm S 420 bar
    DPR42L-SY Cutting ring ø 42 1.4571 42 mm L 250 bar
    Material quality
    1.4571 / AISI316Ti
    Safety factor
    4
    Temperature max.
    +400
    Temperature min.
    -60
