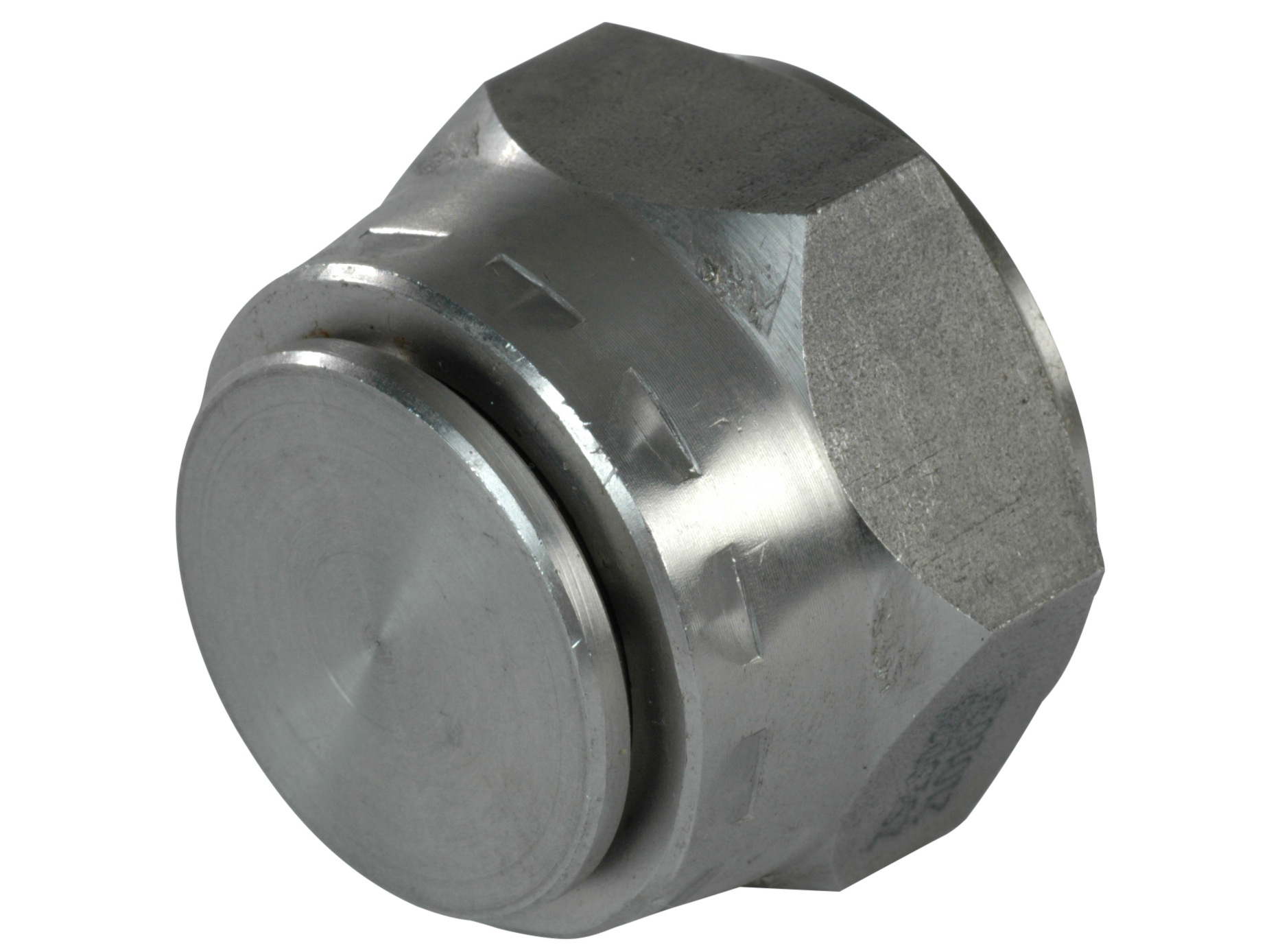

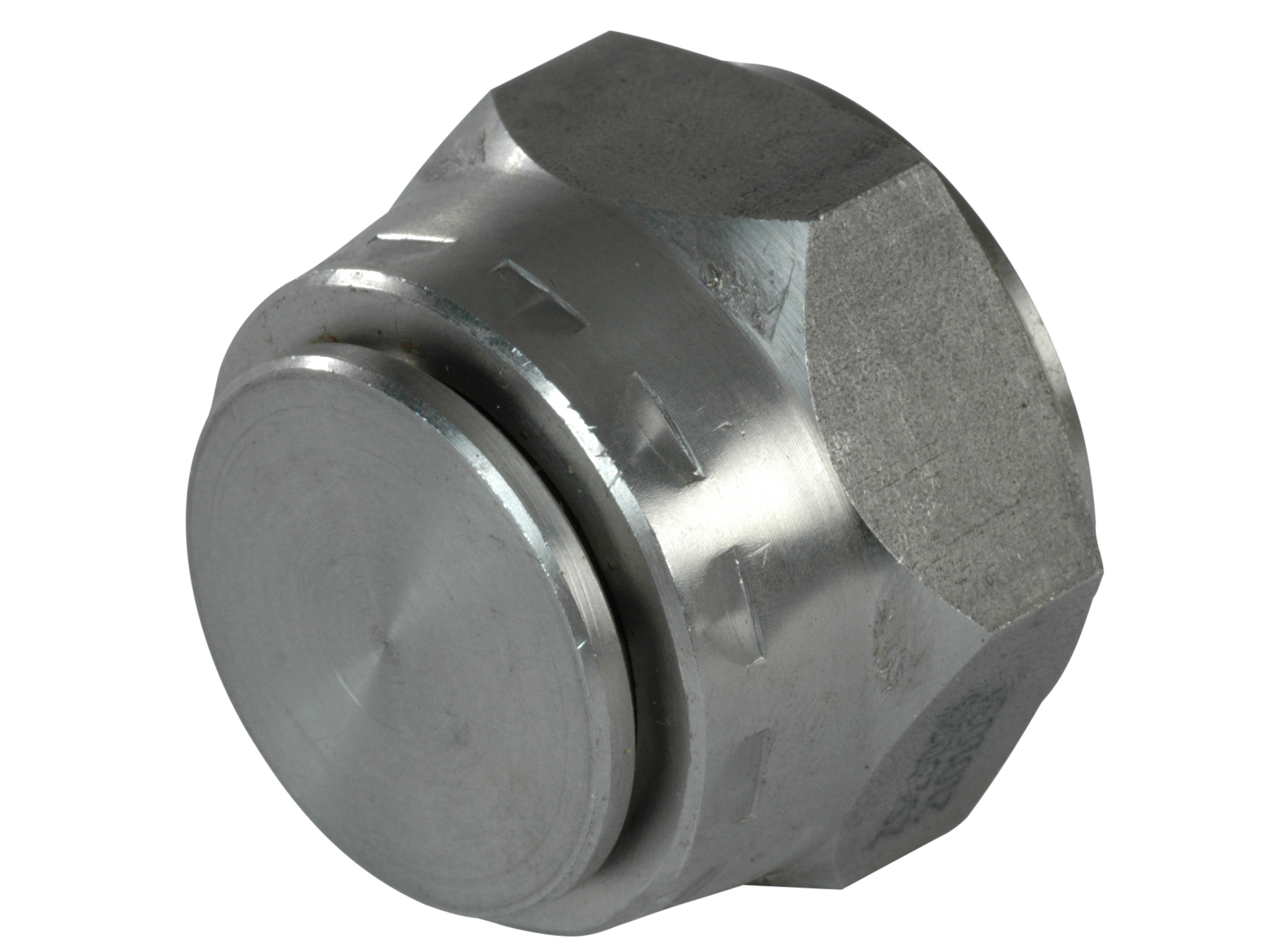

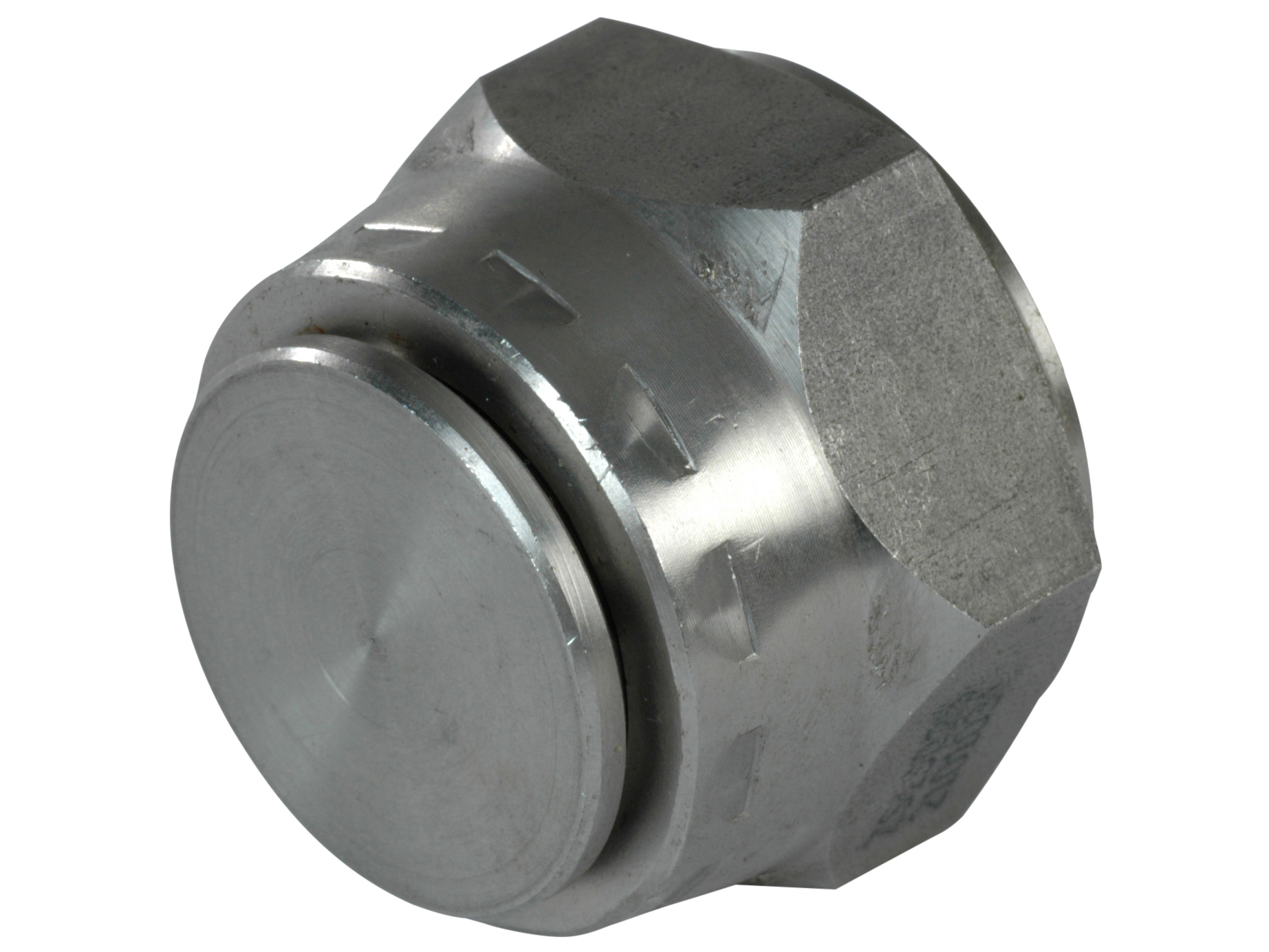

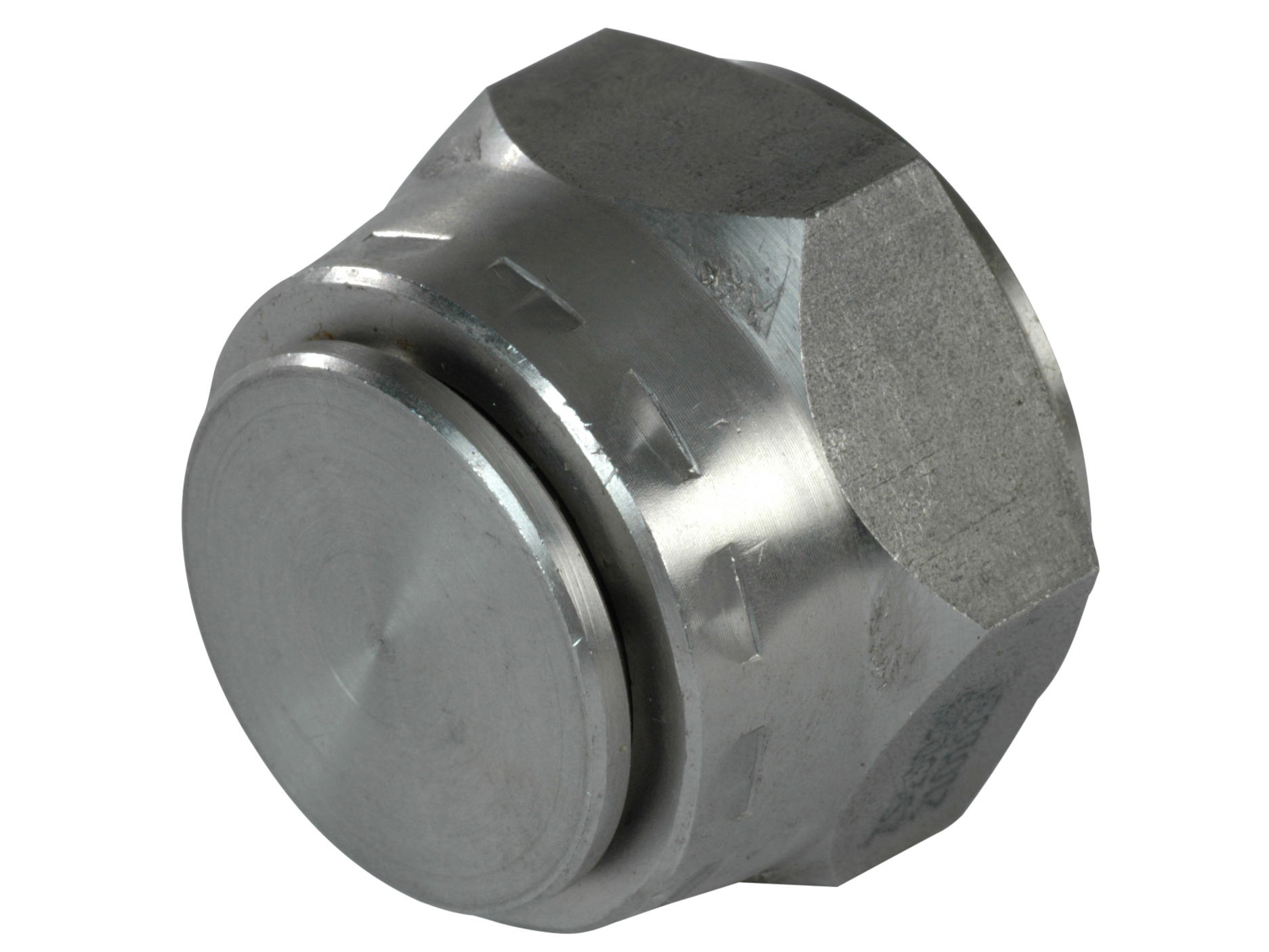

End cap adapter JIC female stainless - JF-71 / JVKA-SY

SELECT VARIANT

Partnumber	Description	Thread inner	Diameter pipe	Pressure max.
JVKA-04-SY	Huv, Inv-JIC Syrafast	7/16-20 JIC
JVKA-05-SY	Huv, Inv-JIC Syrafast	1/2-20 JIC
JVKA-06-SY	End cap 10mm AISI316	9/16-18 JIC	10 mm	700 bar
JVKA-08-SY	End cap 12mm AISI316	3/4-16 JIC	12 mm	700 bar
JVKA-10-SY	End cap 14/16mm AISI316	7/8-14 JIC	14 - 15 - 16 mm	600 bar
JVKA-12-SY	End cap 18/20mm AISI316	1.1/16-12 JIC	18 - 20 mm	600 bar
JVKA-16-SY	End cap 25mm AISI316	1.5/16-12 JIC	25 mm	420 bar
JVKA-20-SY	HUV INV-JIC	1.5/8-12 JIC

Brand Name

Hydraspecma
