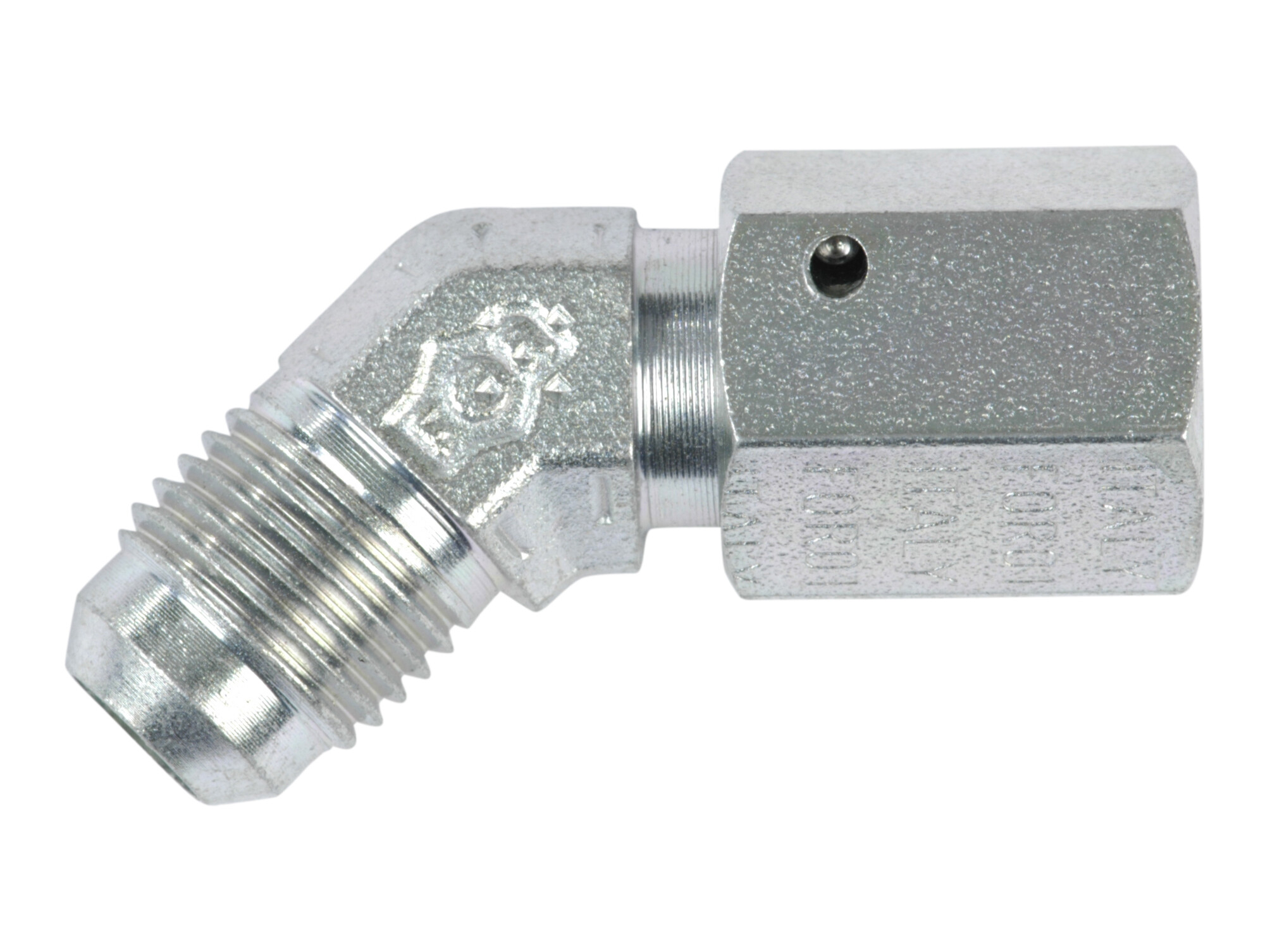

Elbow adapter 45° JIC male x JIC union nut

VÄLJ VARIANT

Artikelnummer	Beskrivning	Diameter rör	Gänga inv.	Gänga utv.	Tryck max.
JEVV-04	Adapter 45K, Utv-JIC, Inv-JIC	6 mm	7/16-20 JIC	7/16-20 JIC	450 bar
JEVV-04-ST	S690-06-45G elbow with nut	6 mm	7/16-20 JIC	7/16-20 JIC	450 bar
JEVV-05	Adapter 45K, Utv-JIC, Inv-JIC	8 mm	1/2-20 JIC	1/2-20 JIC	416 bar
JEVV-05-ST	S690-08-45G elbow with nut	8 mm	1/2-20 JIC	1/2-20 JIC	416 bar
JEVV-06	Adapter 45K, Utv-JIC, Inv-JIC	10 mm	9/16-18 JIC	9/16-18 JIC	350 bar
JEVV-06-ST	S690-10-45G elbow with nut	10 mm	9/16-18 JIC	9/16-18 JIC	350 bar
JEVV-08	Adapter 45K, Utv-JIC, Inv-JIC	12 mm	3/4-16 JIC	3/4-16 JIC	350 bar
JEVV-08-ST	S690-12-45G elbow with nut	12 mm	3/4-16 JIC	3/4-16 JIC	350 bar
JEVV-10	Adapter 45K, Utv-JIC, Inv-JIC	16 mm	7/8-14 JIC	7/8-14 JIC	350 bar
JEVV-10-ST	S690-16-45G elbow with nut	16 mm	7/8-14 JIC	7/8-14 JIC	350 bar
JEVV-12	Adapter 45K, Utv-JIC, Inv-JIC	20 mm	1.1/16-12 JIC	1.1/16-12 JIC	300 bar
JEVV-12-ST	S690-20-45G elbow with nut	20 mm	1.1/16-12 JIC	1.1/16-12 JIC	300 bar
JEVV-14	Adapter 45K, Utv-JIC, Inv-JIC	22 mm	1.3/16-12 JIC	1.3/16-12 JIC
JEVV-16	Adapter 45K, Utv-JIC, Inv-JIC	25 mm	1.5/16-12 JIC	1.5/16-12 JIC	290 bar
JEVV-16-ST	S690-25-45G elbow with nut	25 mm	1.5/16-12 JIC	1.5/16-12 JIC	290 bar
JEVV-20	Adapter 45K, Utv-JIC, Inv-JIC	30, 32 mm	1.5/8-12 JIC	1.5/8-12 JIC	240 bar
JEVV-20-ST	Elbow with nut, 45°	32 mm	1.5/8-12 JIC	1.5/8-12 JIC	240 bar
JEVV-24	Adapter 45K, Utv-JIC, Inv-JIC	38 mm	1.7/8-12 JIC	1.7/8-12 JIC	250 bar

Vinkel
