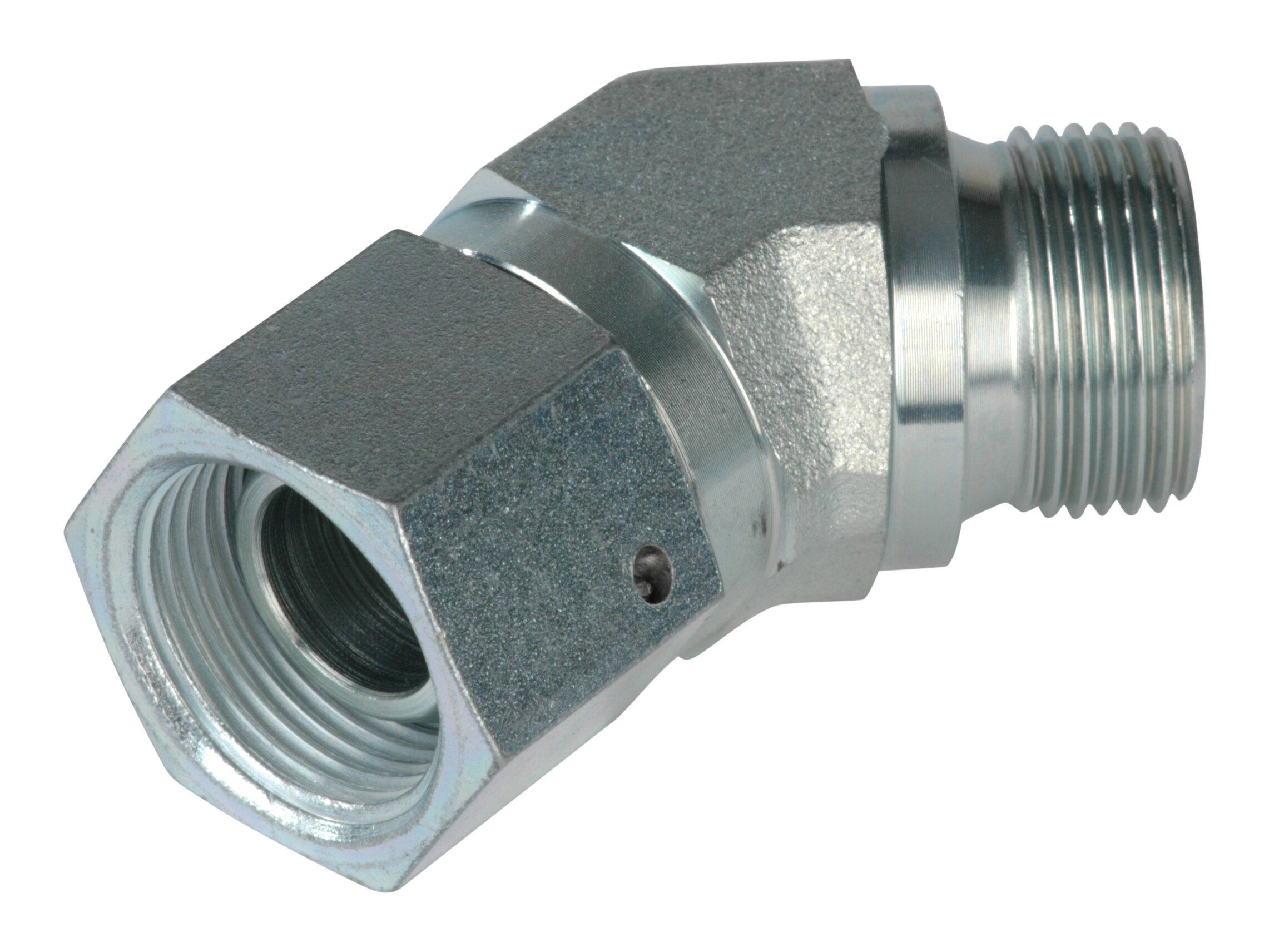

Elbow adapter 45° BSP male x BSP union nut - 22BP / 445 / 638

Adapter 45K, Utv-G 1/8'', Inv-G 1/8'', Tredofas

Elbow 1/4 BSP Fabricated version for seal

Elbow 3/8 BSP Fabricated version for seal

Elbow 1/2 BSP Fabricated version for seal

Adapter 45K, Utv-G 5/8'', Inv-G 5/8'', Tredofas

Elbow 1 BSP Fabricated version for seal

SELECT VARIANT

Partnumber	Description	Thread outer	Thread inner	Pressure max.	Model code
638-02-02	Adapter 45K, Utv-G 1/8'', Inv-G 1/8'', Tredofas	G 1/8 BSP	G 1/8 BSP	350 bar	3300-02-02
638-04-04	Elbow 1/4 BSP Fabricated version for seal	G 1/4 BSP	G 1/4 BSP	350 bar
638-06-06	Elbow 3/8 BSP Fabricated version for seal	G 3/8 BSP	G 3/8 BSP	350 bar	3320-06-06
638-08-08	Elbow 1/2 BSP Fabricated version for seal	G 1/2 BSP	G 1/2 BSP	315 bar
638-10-10	Adapter 45K, Utv-G 5/8'', Inv-G 5/8'', Tredofas	G 5/8 BSP	G 5/8 BSP
638-16-16	Elbow 1 BSP Fabricated version for seal	G 1 BSP	G 1 BSP	200 bar

Angle

Material

Steel
