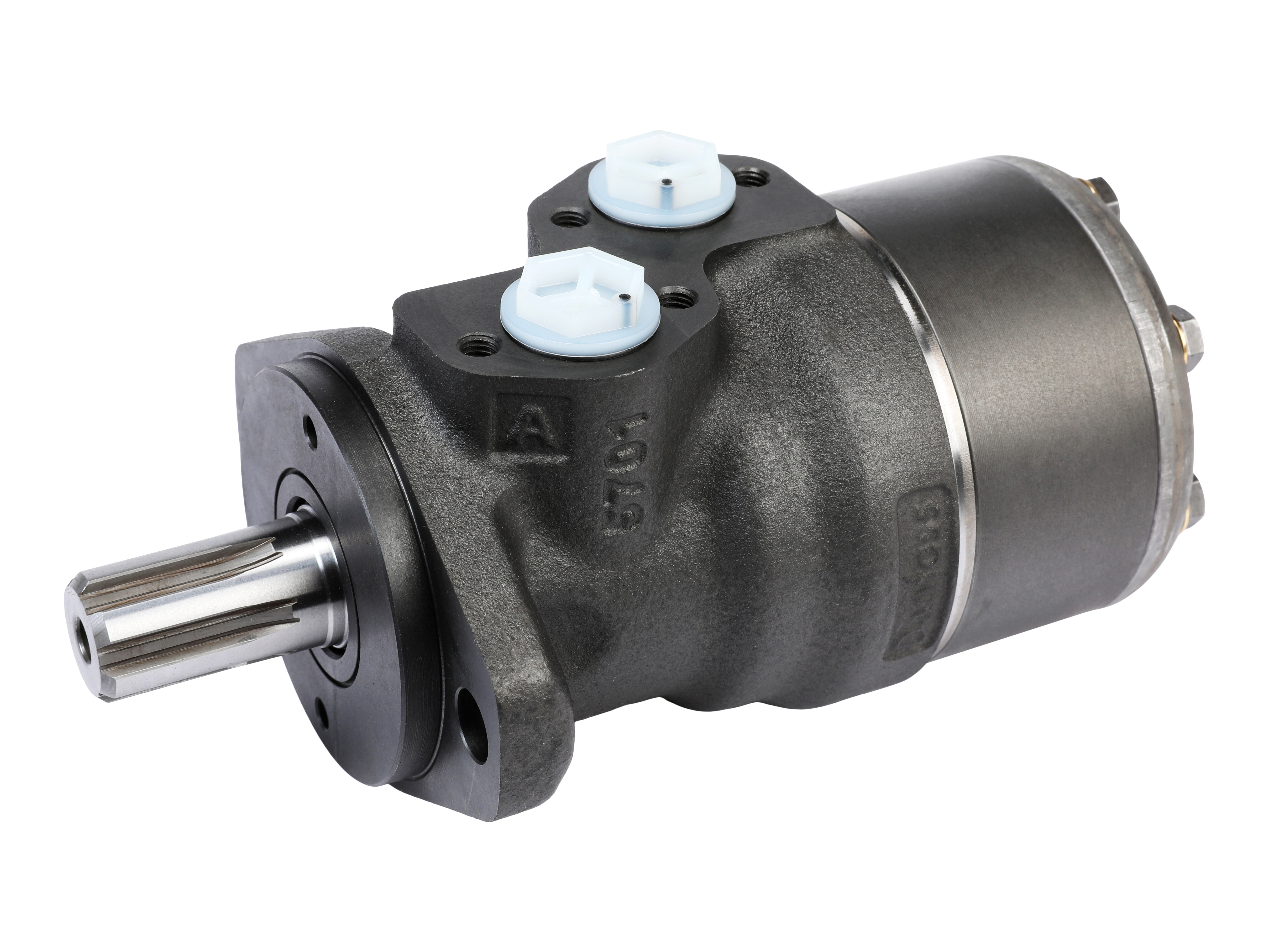

Orbital motors White OMR-X spline shaft

Orbital motors White OMR-X spline shaft

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Shaft diameter Shaft type Continuous power max.
11185564 Orbit motor OMR-X 315 - 1" 6B Spline shaft - drainport 310.1 cm3 25,3 mm Spline 7 kW
11185567 Orbit motor OMR-X 125 - 1" 6B Spline shaft - drainport 124.1 cm3 25,3 mm Spline 14 kW
11185570 Orbit motor OMR-X 160 - 1" 6B Spline shaft - drainport 155.4 cm3 25,3 mm Spline 12.6 kW
11185573 Orbit motor OMR-X 200 - 1" 6B Spline shaft - drainport 198.2 cm3 25,3 mm Spline 10.5 kW
11185576 Orbit motor OMR-X 250 - 1" 6B Spline shaft - drainport 248.1 cm3 25,3 mm Spline 8.8 kW
11185585 Orbit motor OMR-X 80 - 1" 6B Spline shaft - drainport 80.3 cm3 25,3 mm Spline 14 kW
11185588 Orbit motor OMR-X 100 - 1" 6B Spline shaft - drainport 99.8 cm3 25,3 mm Spline 14 kW
A
G 1/2 BSP
B
G 1/2 BSP
Brand Name
White
C
G 1/4 BSP
D
M8
Drainport
G 1/4
Holes circle
106.4
Mounting flange
SAE-A2
Number of mounting holes
2
Oil viscocity recommended
20 - 75
Port position
Side
Pressure continous max.
200
Pressure intermittent max.
225
Recess
82,55
Shaft Seal Type
High pressure packing
Shaft diameter
25,3
Shaft load radial (middle) max.
40
Shaft spline
SAE 6B 1"
Shaft type
Spline
Working ports
G 1/2
