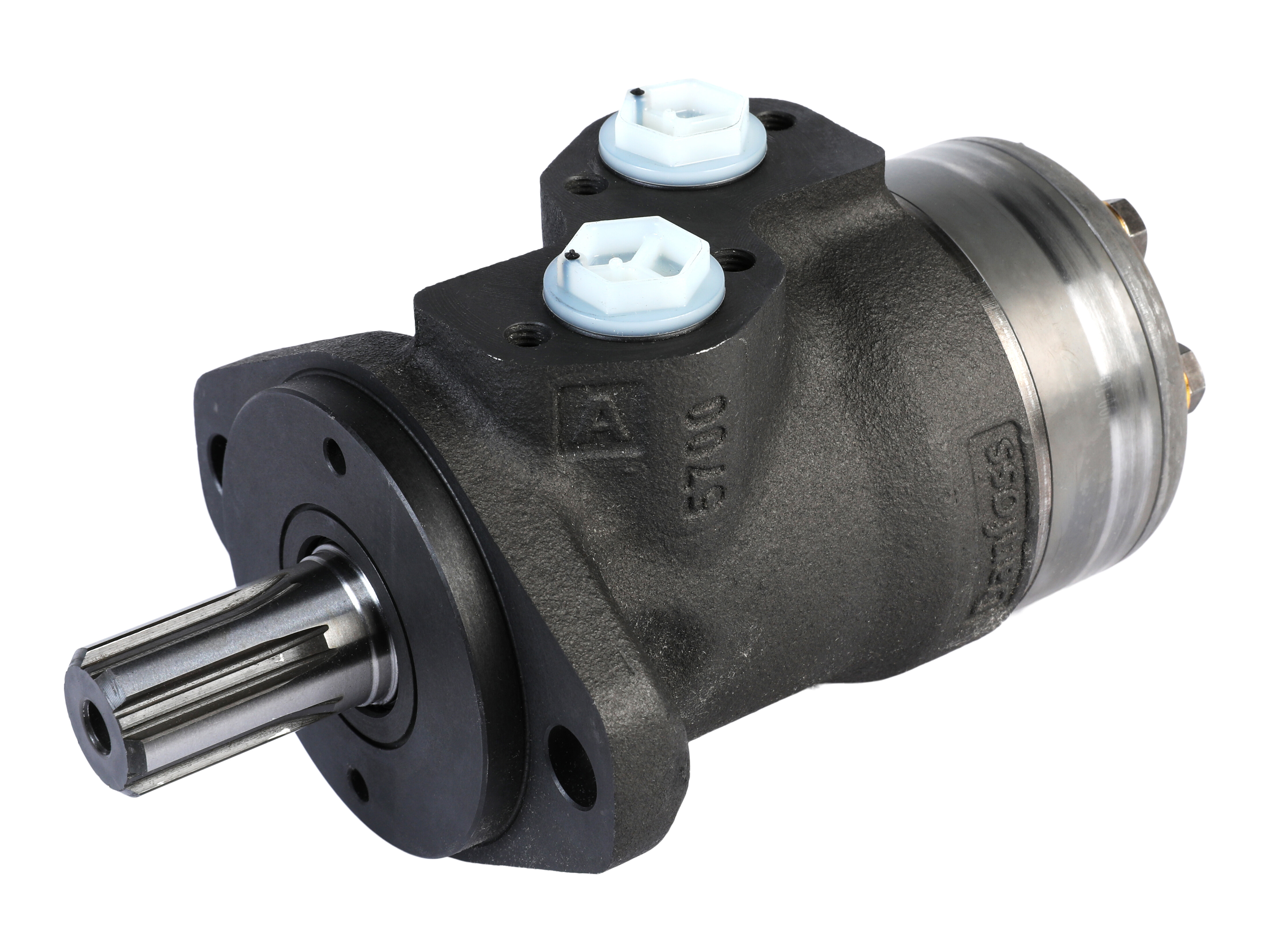

Orbital motors White OMP-X spline shaft

Orbital motors White OMP-X spline shaft

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Shaft diameter Shaft type Continuous power max.
11185819 Orbit motor OMP-X 200 - 1" 6B spline shaft - drainport 194.6 cm3 25,3 mm Spline 10.9 kW
11185827 Orbit motor OMP-X 315 - 1" 6B spline shaft - drainport 306.1 cm3 25,3 mm Spline 7 kW
11185910 Orbit motor OMP-X 160 - 1" 6B shaft - drainport Spline
11185913 Orbit motor OMP-X 200 - 1" 6B shaft - drainport 194.6 cm3 Spline 10.9 kW
11186738 Orbit motor OMP-X 50 - 1" 6B spline shaft - drainport 48.6 cm3 25,3 mm Spline 9.8 kW
11186739 Orbit motor OMP-X 80 - 1" 6B spline shaft - drainport 77.8 cm3 25,3 mm Spline 9.8 kW
11186740 Orbit motor OMP-X 100 - 1" 6B spline shaft - drainport 97.3 cm3 25,3 mm Spline 11.2 kW
11186820 Orbit motor OMP-X 250 - 1" 6B spline shaft - drainport 242.3 cm3 25,3 mm Spline 8.4 kW
Brand Name
White
Holes circle
106.4
Mounting flange
SAE-A2
Number of mounting holes
2
Oil viscocity recommended
20 - 75
Port position
Side
Recess
82,55
Shaft type
Spline
Working ports
G 1/2
