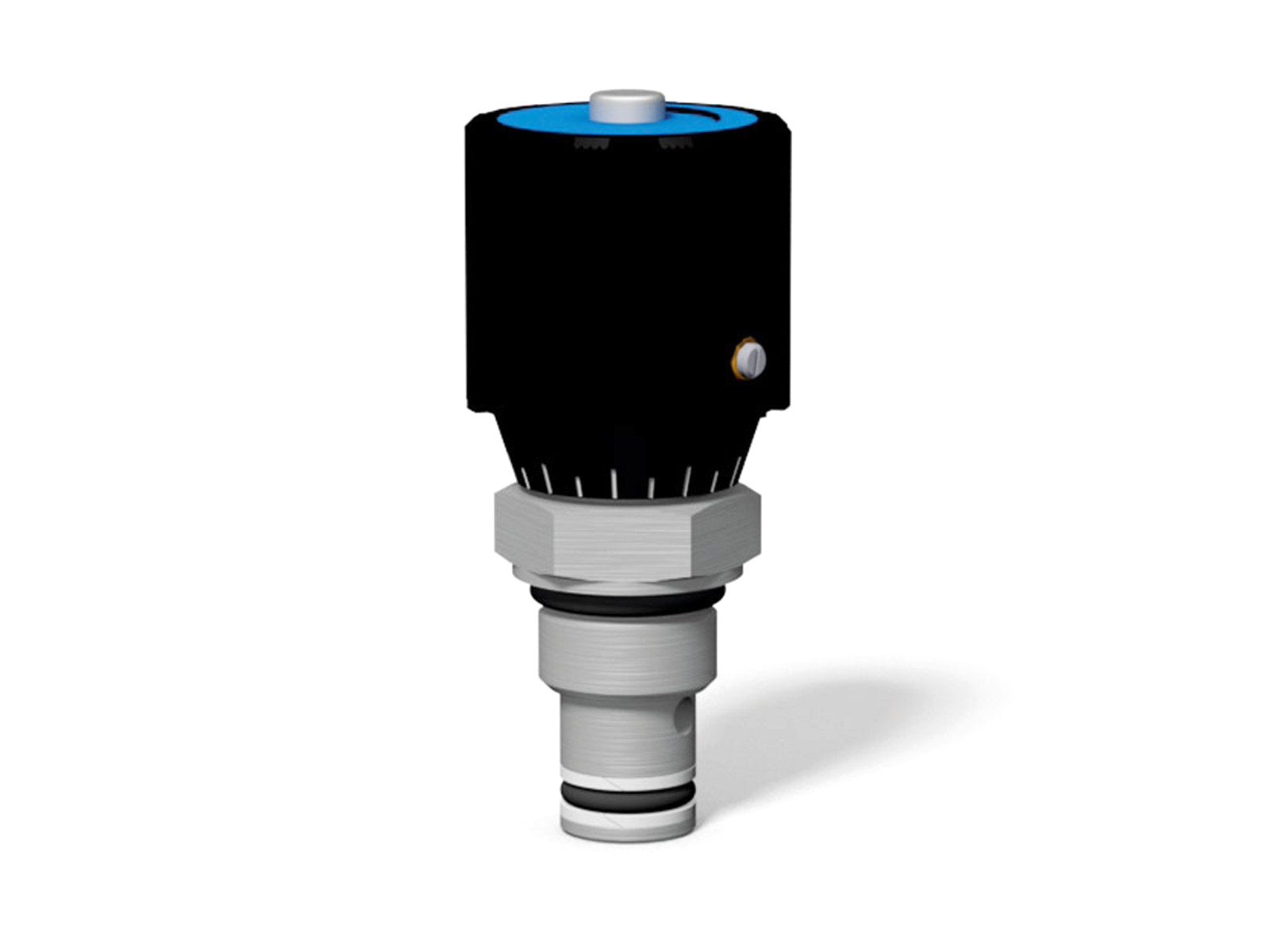

Throttle valves MHA DVE-P-B

Throttle valves MHA DVE-P-B

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flow rate nominal LMin Pressure max.
DVE-08-P-B Strypventil DVE Patron DN8, 350 bar 25 lpm 350 bar
DVE-10-P-B Strypventil DVE Patron DN10, 350 bar 35 lpm 350 bar
DVE-12-P-B Strypventil DVE Patron DN12, 350 bar 63 lpm 350 bar
DVE-16-P-B Strypventil DVE Patron DN16, 350 bar 63 lpm 350 bar
Brand Name
MHA Zentgraf
Material
Steel
Pressure compensated
No
Pressure max.
350
Sealing material
NBR
Temperature max.
+100
Temperature min.
-20
Valve type
Throttlevalve
