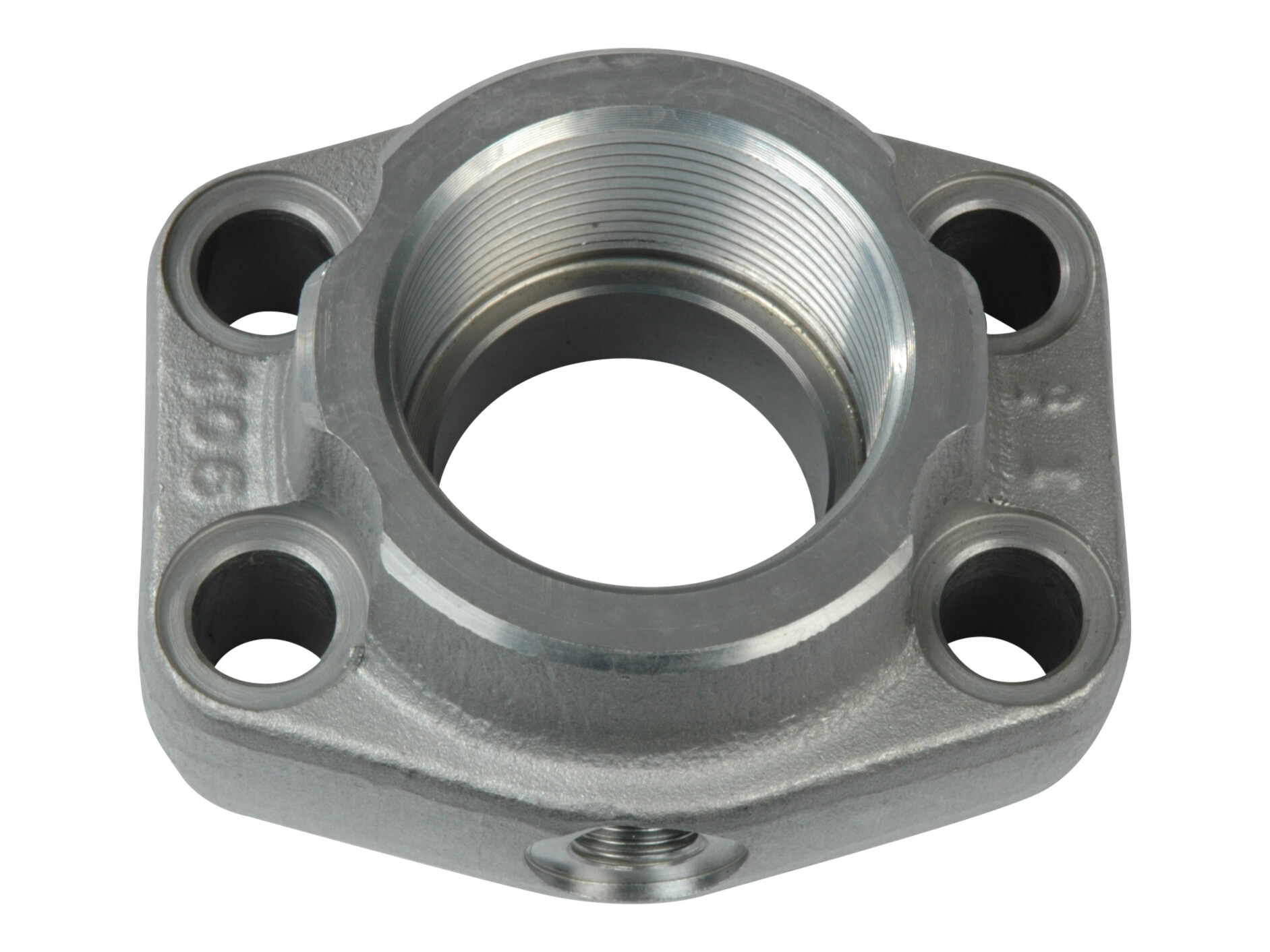

Threaded flange 0° SAE 6000 PSI x BSP female with side port - AFS4-G / 8610-M02 / 8611

Gängfläns 1/2'' SAE6000 Inv-G1/2'', Mätuttag G1/8"

Gängfläns 3/4'' SAE6000 Inv-G3/4'', Mätuttag G1/8"

Gängfläns 1'' SAE6000 Inv-G1'', Mätuttag G1/8"

Gängfläns 1.1/4'' SAE6000 Inv-G1.1/4'', Mätuttag G1/8"

Gängfläns 1.1/2'' SAE6000 Inv-G1.1/2'', Mätuttag G1/8"

Gängfläns 2'' SAE6000 Inv-G2'', Mätuttag G1/8"

VÄLJ VARIANT

Artikelnummer	Beskrivning	Flange SAE/DIN	Flange	Thread inner
8610-08-08-M02	Gängfläns 1/2'' SAE6000 Inv-G1/2'', Mätuttag G1/8"	6000 PSI	1/2 "	G 1/2, G 1/8 BSP
8610-12-12-M02	Gängfläns 3/4'' SAE6000 Inv-G3/4'', Mätuttag G1/8"	6000 PSI	3/4 "	G 1/8, G 3/4 BSP
8610-16-16-M02	Gängfläns 1'' SAE6000 Inv-G1'', Mätuttag G1/8"	6000 PSI	1 "	G 1, G 1/8 BSP
8610-20-20-M02	Gängfläns 1.1/4'' SAE6000 Inv-G1.1/4'', Mätuttag G1/8"	6000 PSI	1.1/4 "	G 1.1/4, G 1/8 BSP
8610-24-24-M02	Gängfläns 1.1/2'' SAE6000 Inv-G1.1/2'', Mätuttag G1/8"	6000 PSI	1.1/2 "	G 1.1/2, G 1/8 BSP
8610-32-32-M02	Gängfläns 2'' SAE6000 Inv-G2'', Mätuttag G1/8"	6000 PSI	2 "	G 1/8, G 2 BSP

Angle

Brand Name

Hydraspecma

Flange SAE/DIN

6000 PSI

Material

Steel

Number of bolts

Pressure max.

414

Shore

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Temperature max.

+100

Temperature min.

-30
