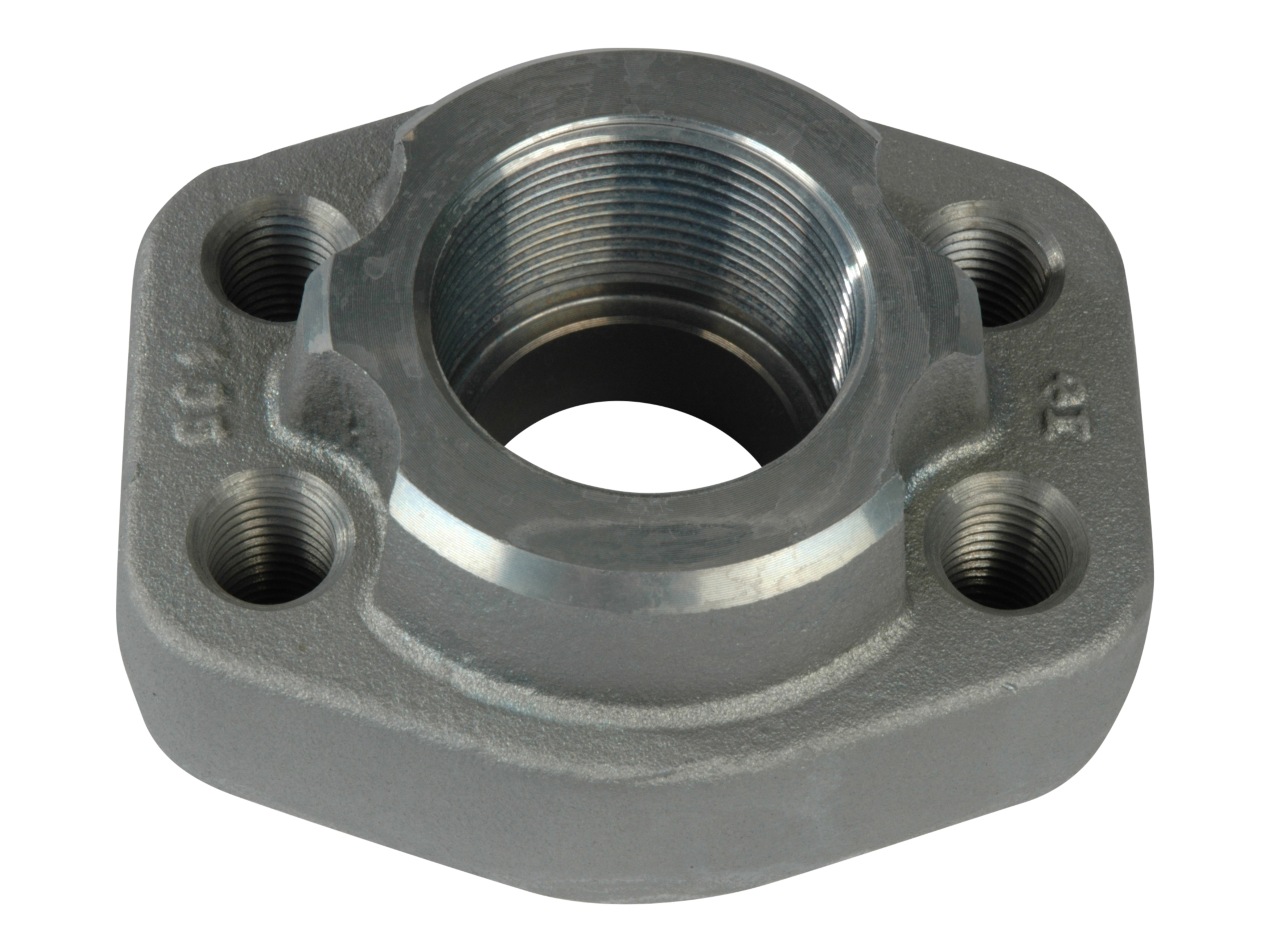

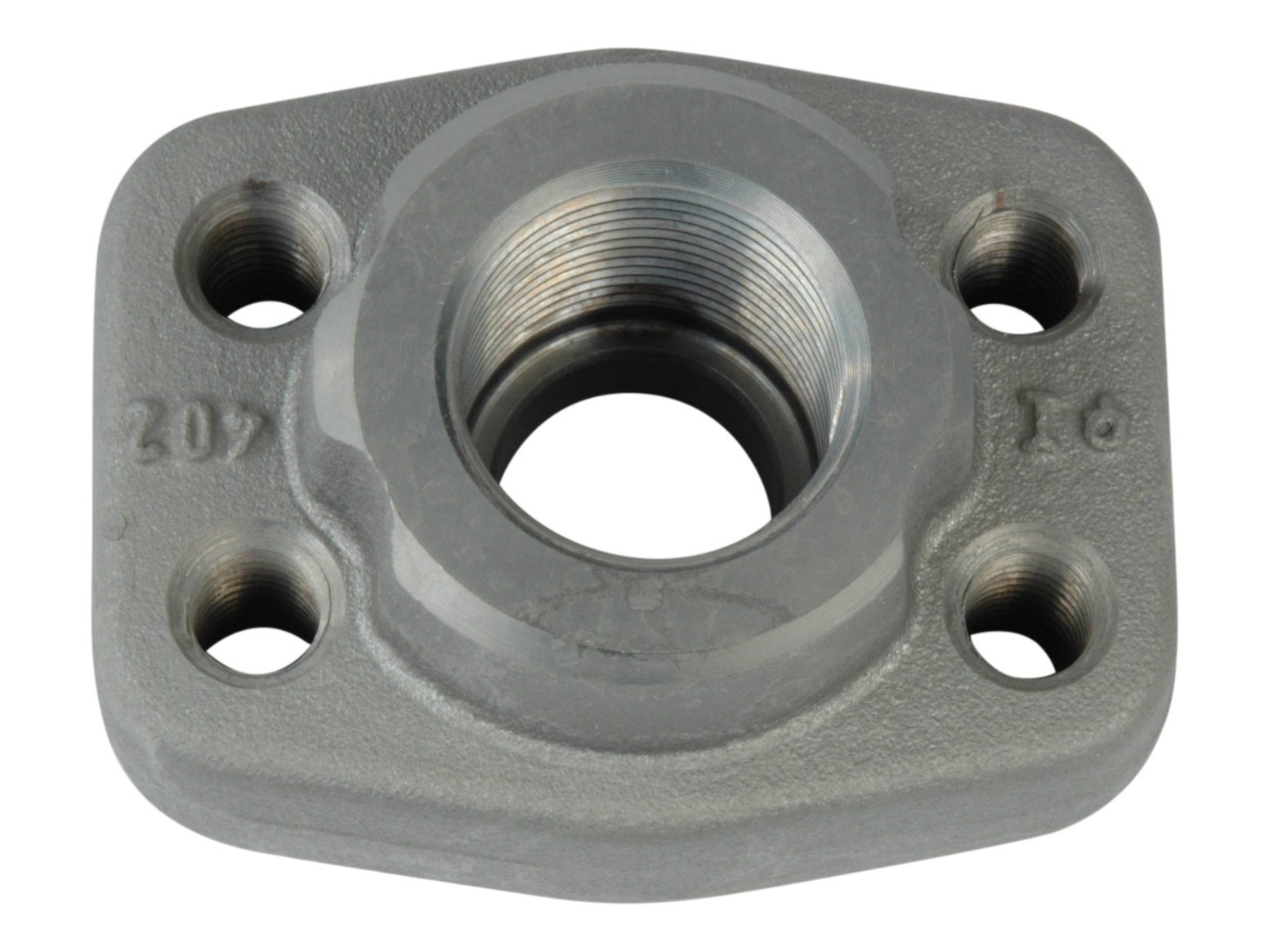

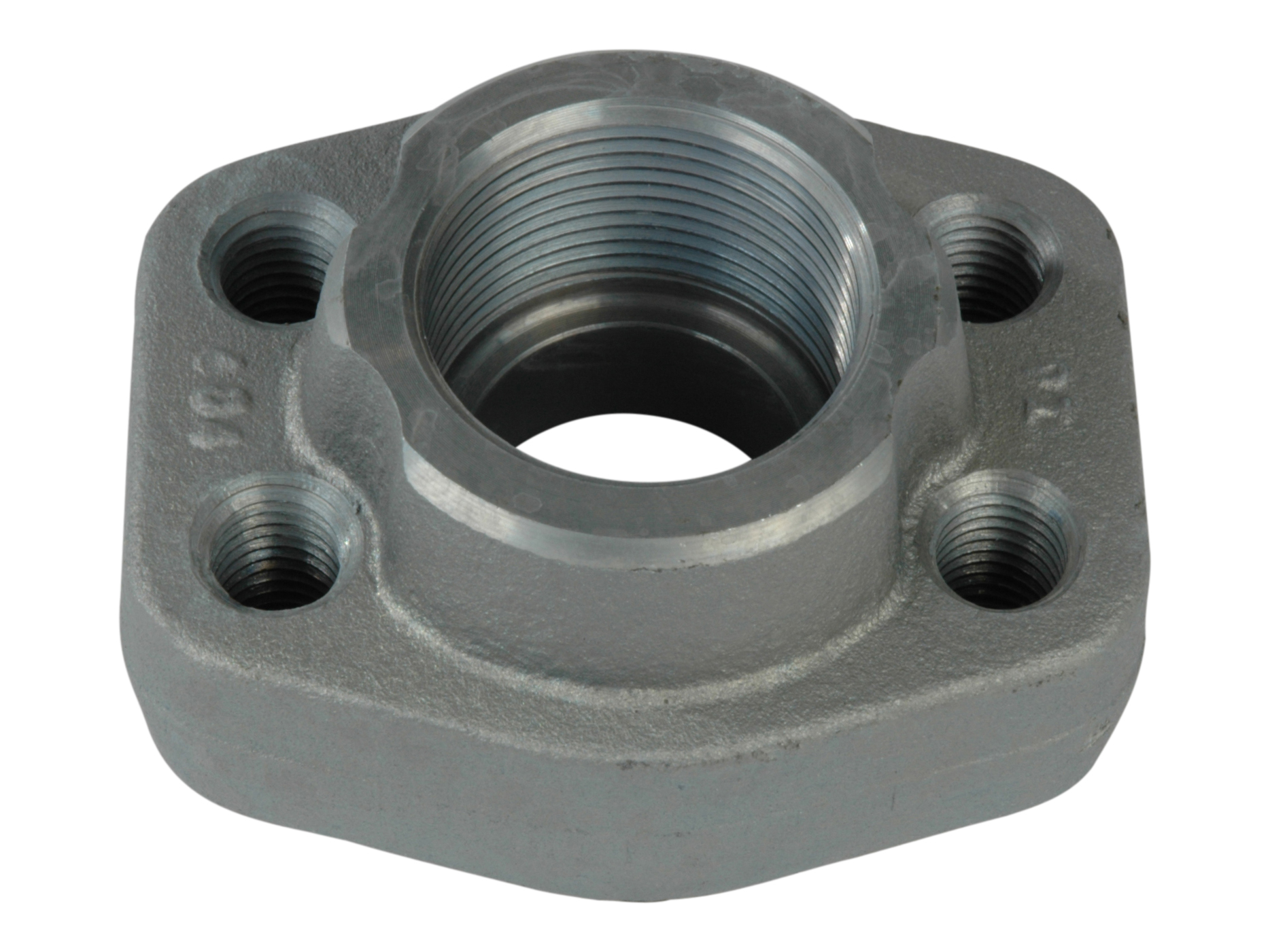

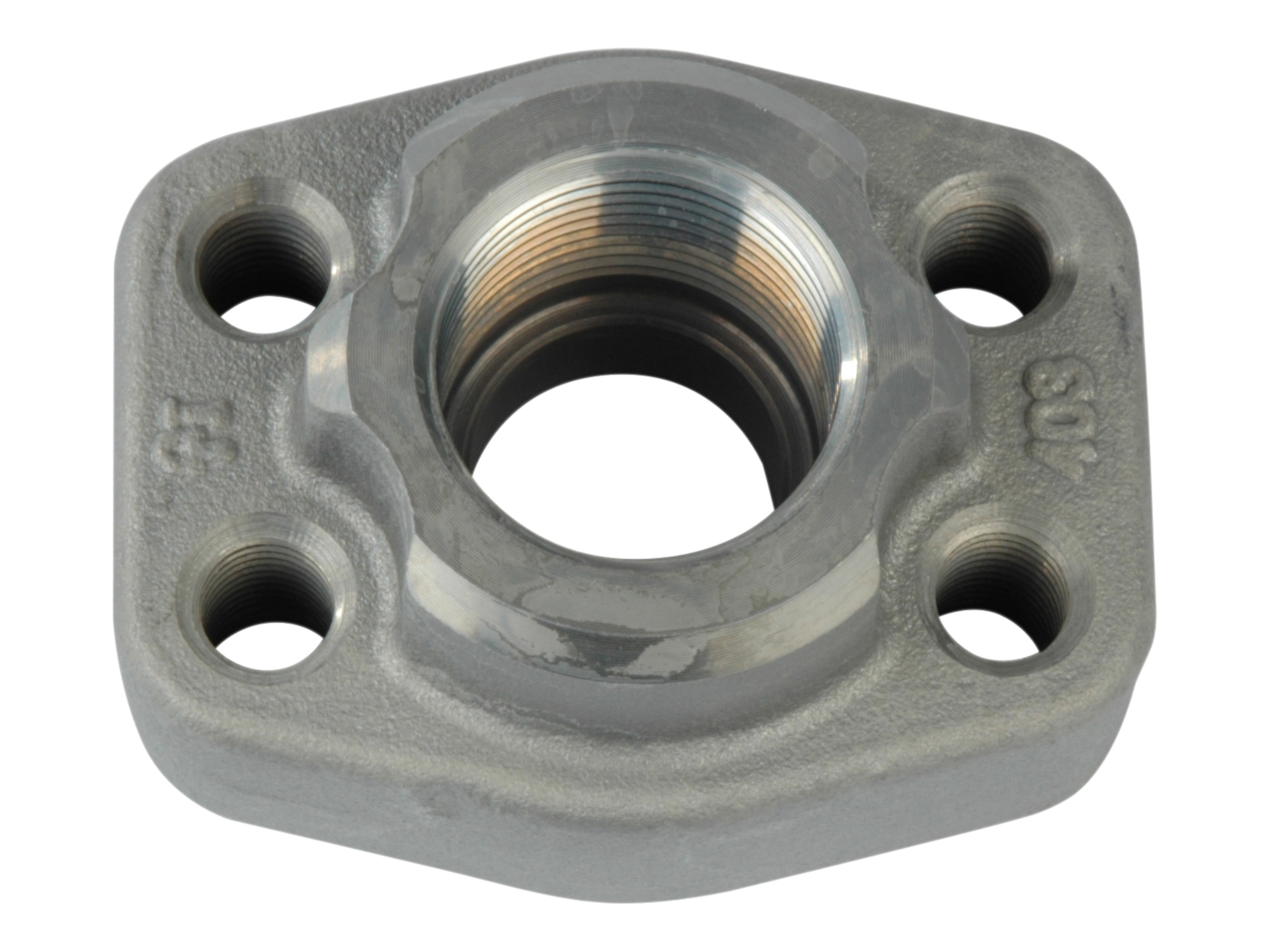

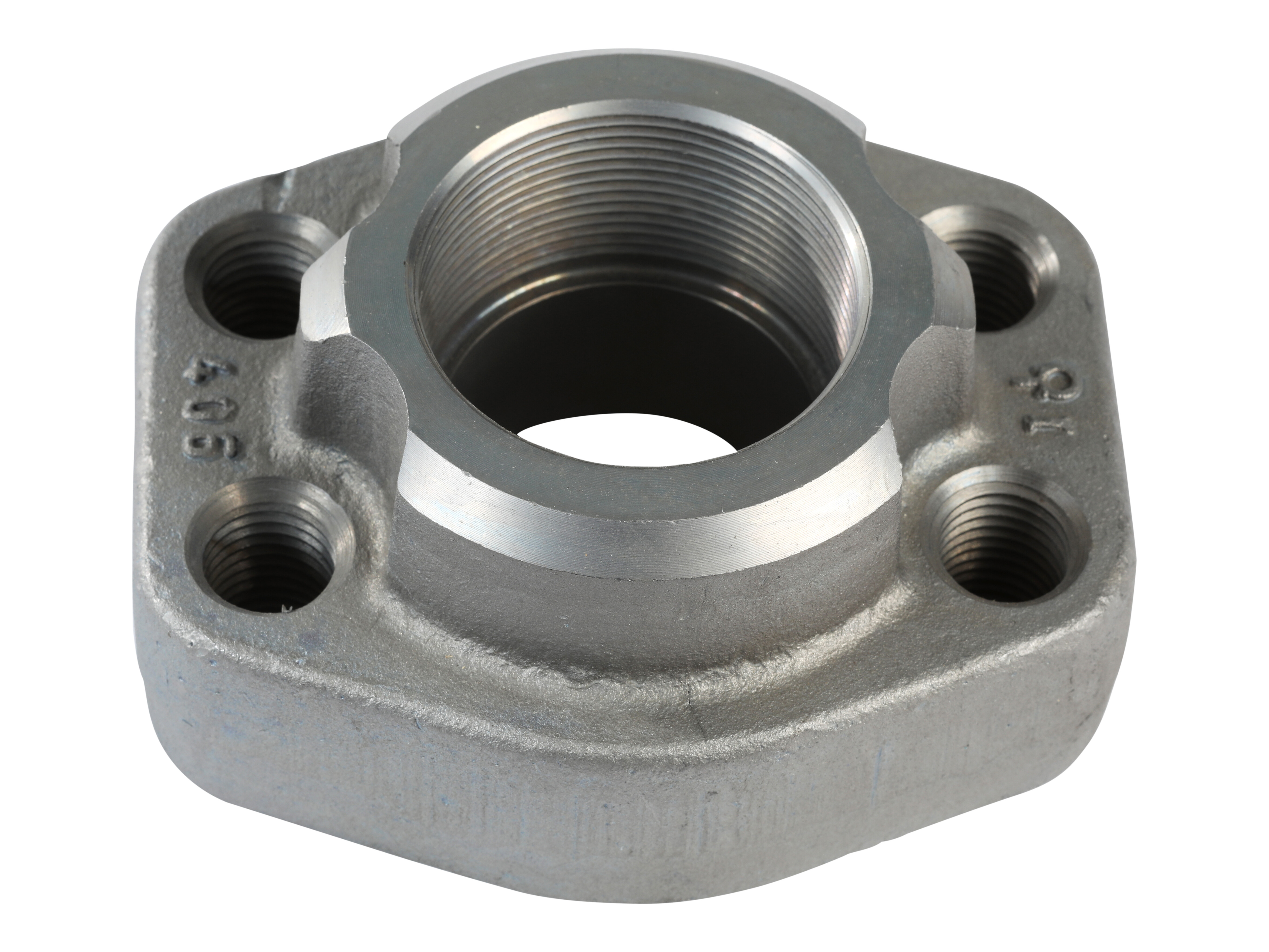

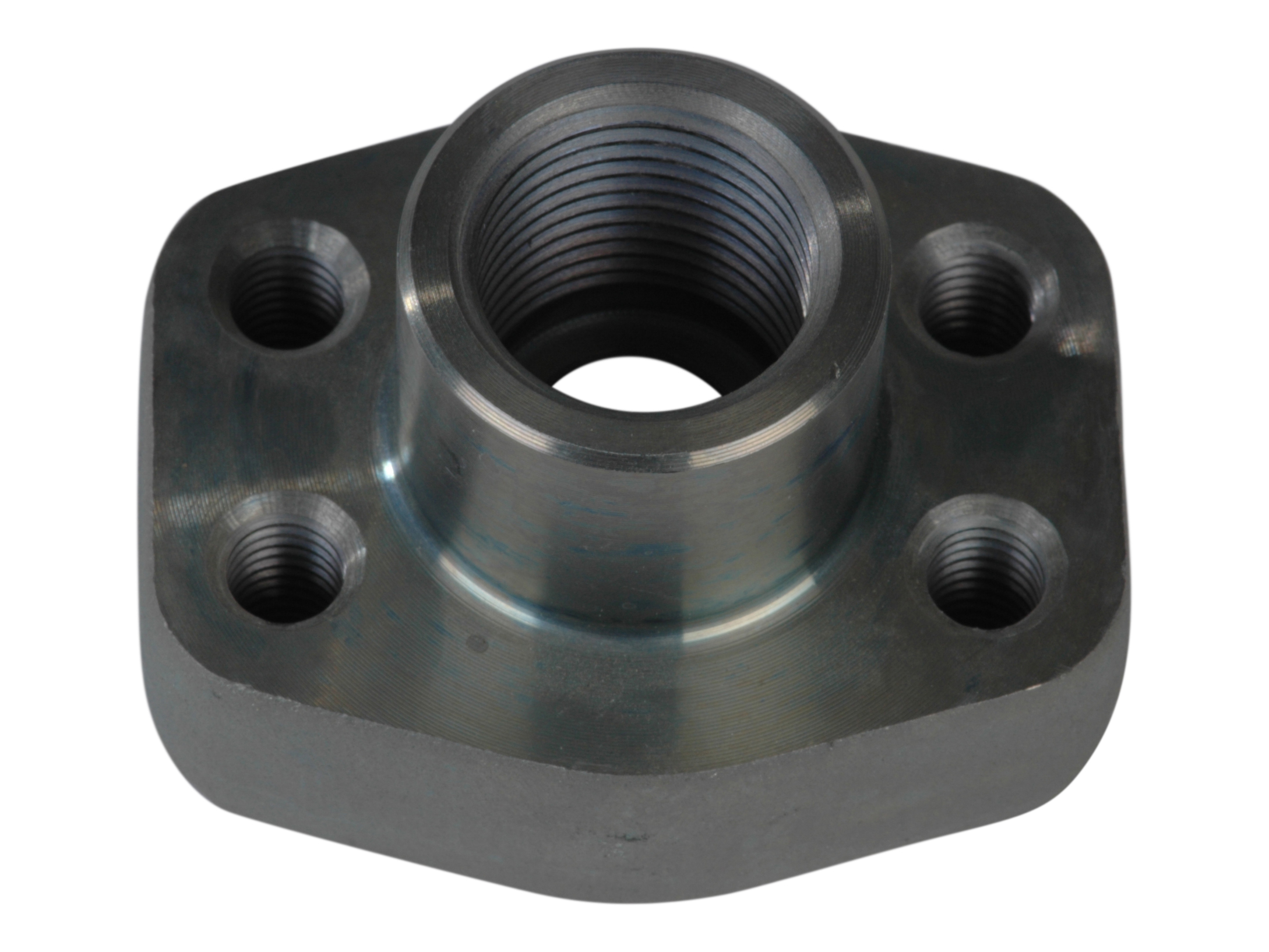

Threaded flange 0° SAE 6000 PSI x BSP female - GFS4-G / 8615

Threaded flange 0° SAE 6000 PSI x BSP female - GFS4-G / 8615

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flange Thread inner Pressure max. O-ring
8615-08-08 FLÄNS RAK SAE6000 1/2 1/2 " G 1/2 BSP 414 bar 18.64X3.53 mm
8615-12-08 FLÄNS RAK SAE6000 3/4, INV G1/2 obehandlad 3/4 " G 1/2 BSP 414 bar 24.99X3.53 mm
8615-12-12 FLÄNS RAK SAE6000 3/4, (M10) INV G3/4 3/4 " G 3/4 BSP 414 bar 24.99X3.53 mm
8615-16-16 2216-16
8615-20-20 2216-20
8615-24-24 2216-24 1.1/2 " G 1.1/2 BSP 414 bar 47.22X3.53 mm
8615-32-24 FLÄNS RAK SAE6000 2tum 2 " G 1.1/2 BSP 414 bar 56.75X3.53 mm
8615-32-32 2216-32 FZB 2 " G 2 BSP 414 bar 56.75X3.53 mm
Angle
0
Flange SAE/DIN
6000 PSI
Material
Steel
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
