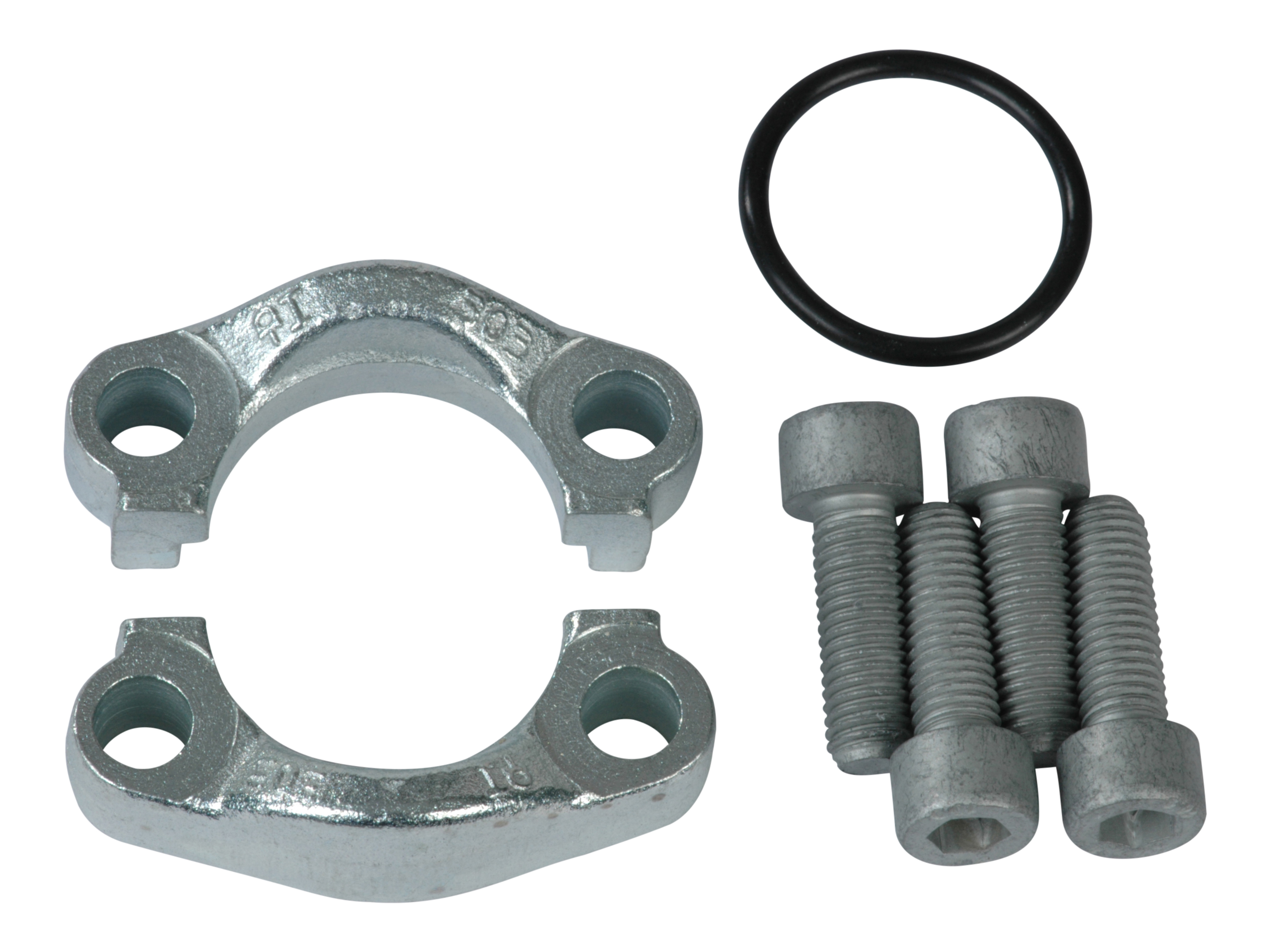

Split flange kit SAE 3000 PSI with O-ring and MM bolts - AFS3-M

Split flange kit SAE 3000 PSI with O-ring and MM bolts - AFS3-M

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter flange Bolt dimension Pressure max. Flange
8300-08-KM Split flange 1/2" SAE3000 - complete w. M8 30.2 mm M8x25 mm 350 bar 1/2 "
8300-12-KM Split flange 3/4" SAE3000 - complete w. M10 38.1 mm M10x30 mm 350 bar 3/4 "
8300-16-KM Split flange 1" SAE3000 - complete w. M10 44.5 mm M10x30 mm 320 bar 1 "
8300-20-KM Split flange 1.1/4" SAE3000 - complete w. M10 50.8 mm M10x30 mm 280 bar 1.1/4 "
8300-24-KM Split flange 1.1/2" SAE3000 - complete 60.3 mm M12x35 mm 210 bar 1.1/2 "
8300-32-KM Split flange 2" SAE3000 - complete w. M12 71.4 mm M12x35 mm 210 bar 2 "
8300-40-KM Split flange 2.1/2" SAE3000 - complete w. M12 84.1 mm M12x40 mm 175 bar 2.1/2 "
8300-48-KM Split flange 3" SAE3000 - complete w. M16 101.6 mm M16x50 mm 160 bar 3 "
8300-56-KM Split flange 3.1/2" SAE3000 - complete w. M16 114.3 mm M16x50 mm 35 bar 3.1/2 "
8300-64-KM Split flange 4" SAE3000 - complete w. M16 127 mm M16x50 mm 35 bar 4 "
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Flange SAE/DIN
3000 PSI
Material
Steel
Number of bolts
4
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperature max.
+90
Temperature min.
-40
