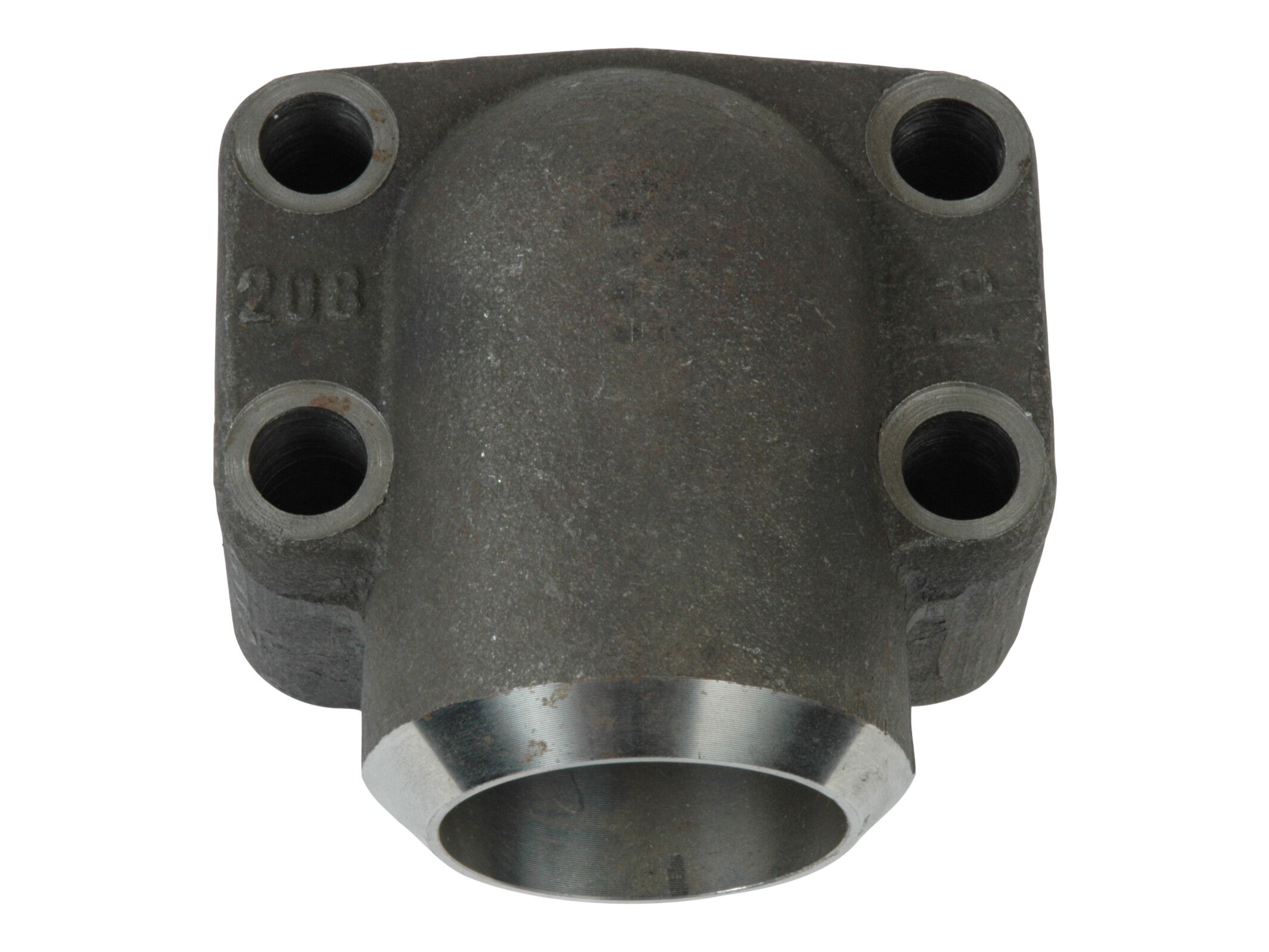

Butt weld flange 90° SAE 3000 PSI - AFS-/90ST / 0539

Butt weld flange 90° SAE 3000 PSI - AFS-/90ST / 0539

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flange SAE/DIN Flange
0539-12 FLÄNS 90GR SAE3000 3/4 3000 PSI 3/4 "
0539-16 FLÄNS 90GR SAE3000 1tum 3000 PSI 1 "
0539-20 FLÄNS 90GR SAE3000 1.1/4 3000 PSI 1.1/4 "
0539-24 FLÄNS 90GR SAE3000 1.1/2 3000 PSI 1.1/2 "
0539-32 FLÄNS 90GR SAE3000 2tum 3000 PSI 2 "
Angle
90
Brand Name
Hydraspecma
Flange SAE/DIN
3000 PSI
Material
Steel
Pressure max.
414
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperature max.
+100
Temperature min.
-30
