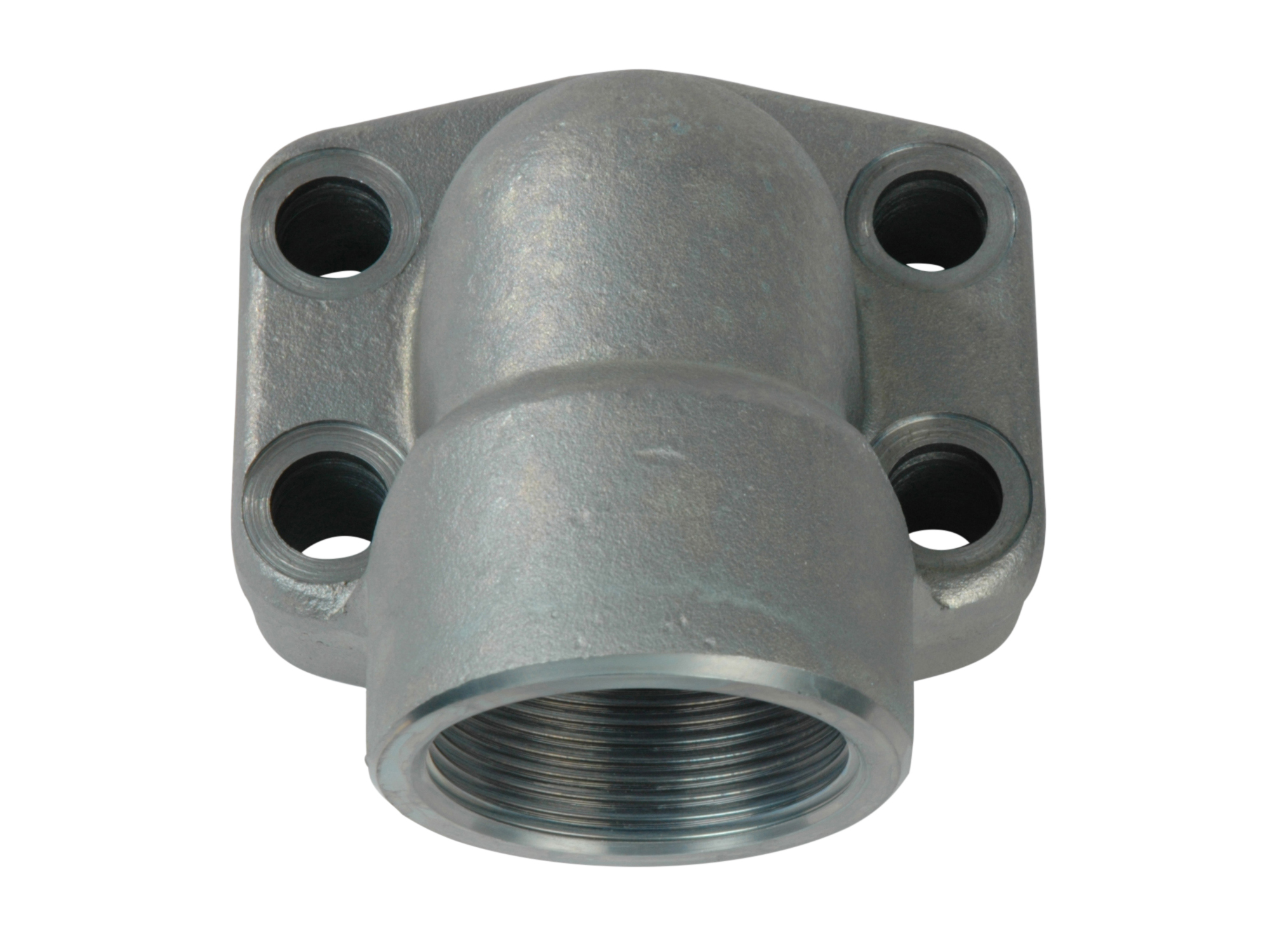

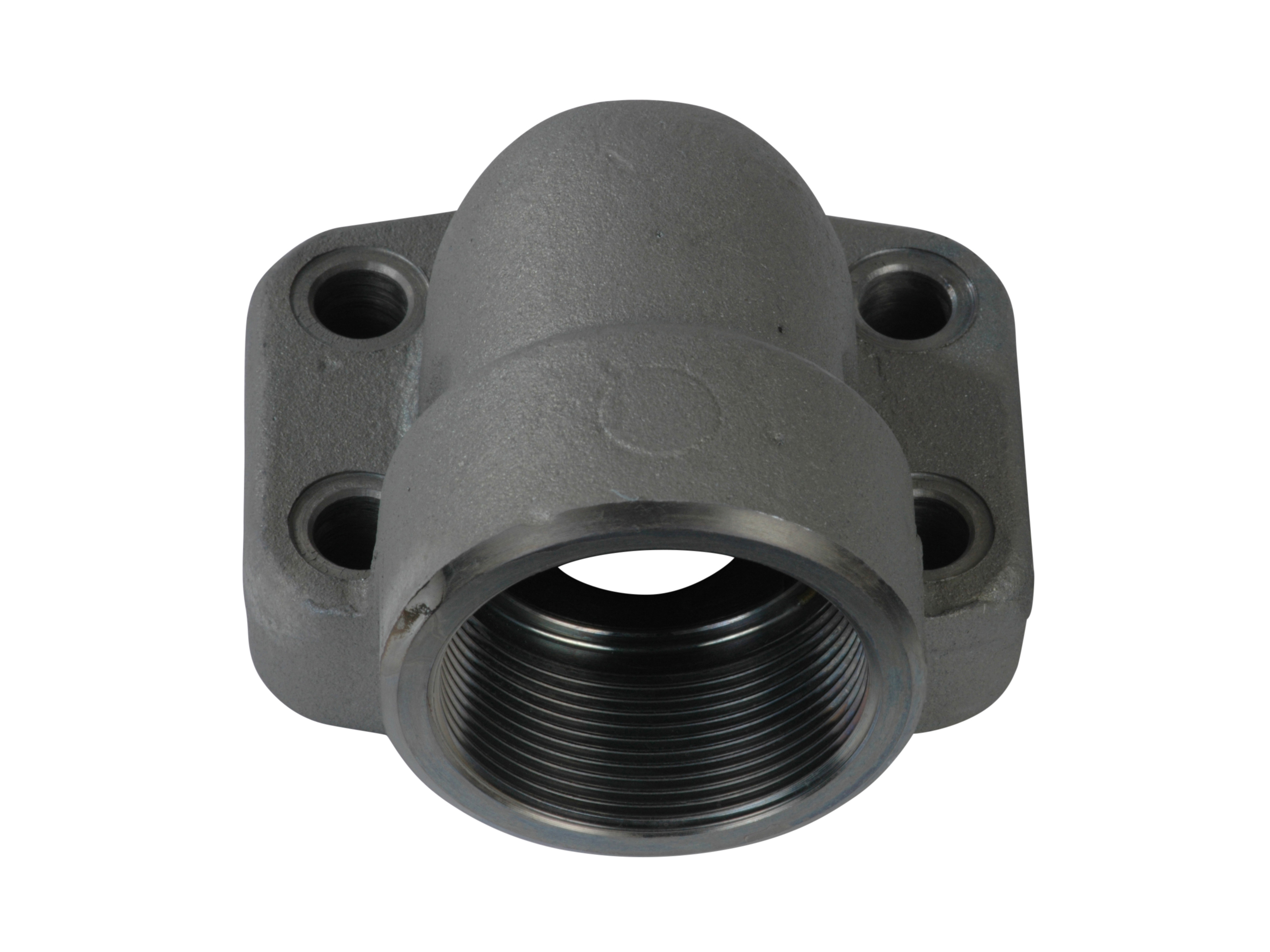

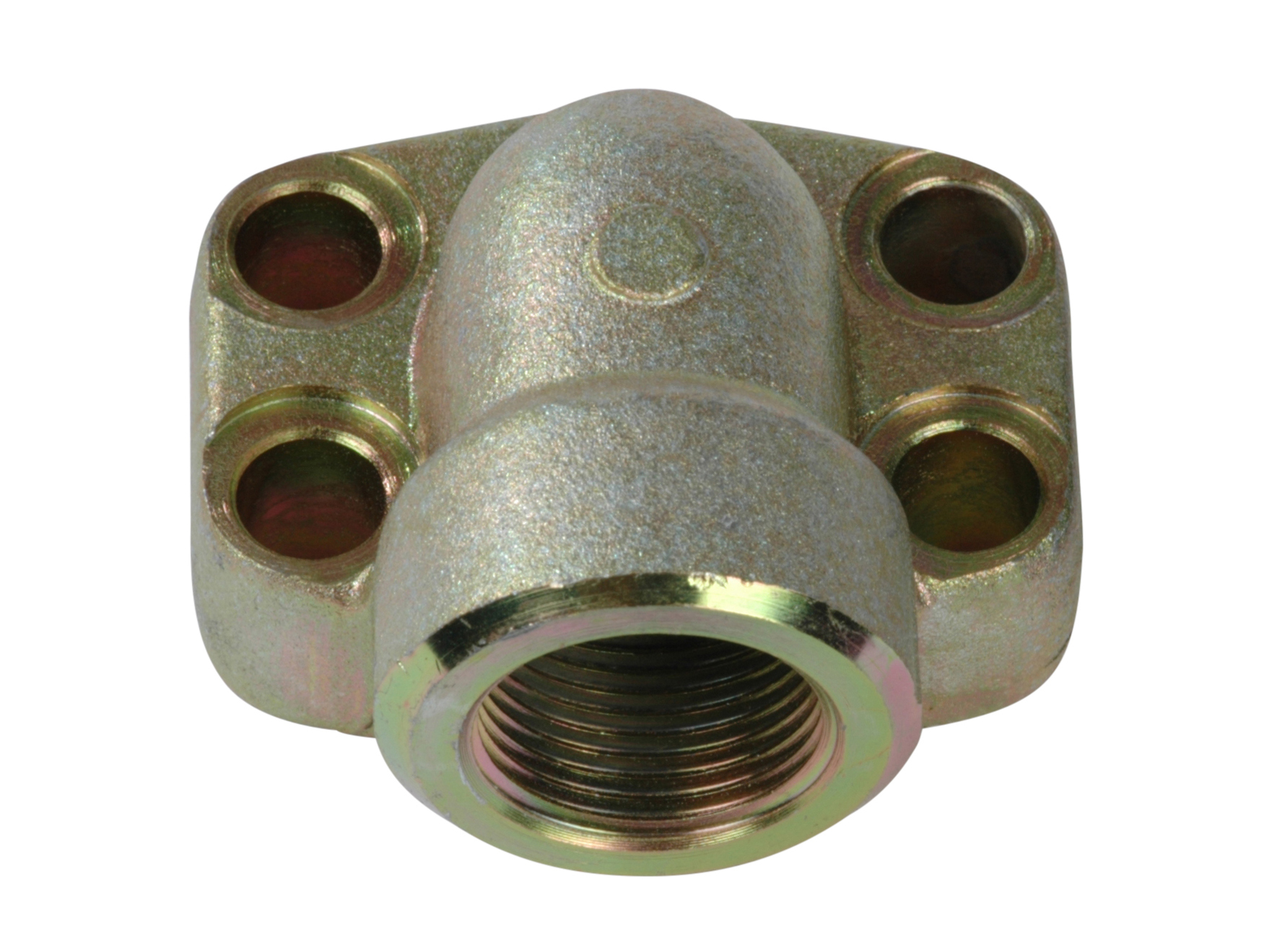

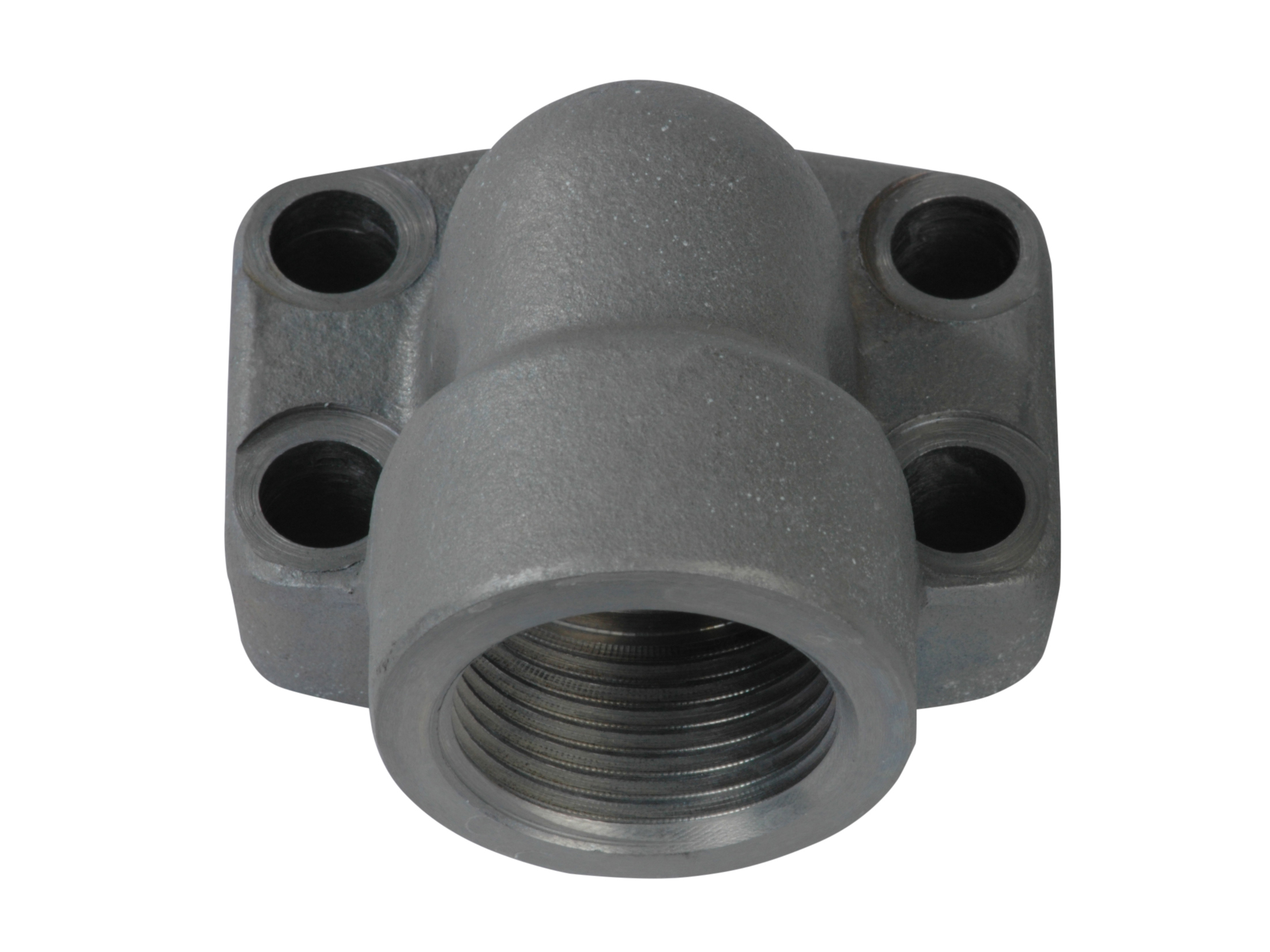

    Threaded flange 90° SAE 3000 PSI x BSP female - AFS-/90G / 8391

    Välj variant
    VÄLJ VARIANT
    VÄLJ VARIANT
    Artikelnummer Beskrivning Flange Thread inner Pressure max. O-ring
    8391-08-08 FLÄNS 90GR SAE3000 1/2 1/2 " G 1/2 BSP 345 bar 18.64X3.53 mm
    8391-12-12 FLÄNS 90GR SAE3000 3/4 3/4 " G 3/4 BSP 345 bar 24.99X3.53 mm
    8391-12-16 FLÄNS 90GR SAE3000 3/4 " G 1 BSP 345 bar 24.99X3.53 mm
    8391-16-16 FLÄNS 90GR SAE3000 1tum 1 " G 1 BSP 345 bar 32.93X3.53 mm
    8391-20-20 FLÄNS 90GR SAE3000 1.1/4 1.1/4 " G 1.1/4 BSP 276 bar 37.69X3.53 mm
    8391-24-24 FLÄNS 90GR SAE3000 1.1/2 1.1/2 " G 1.1/2 BSP 207 bar 47.22X3.53 mm
    8391-32-24 FLÄNS 90GR SAE3000 2tum 2 " G 1.1/2 BSP 207 bar 56.75X3.53 mm
    8391-32-32 FLÄNS 90GR SAE3000 2tum INV G2'' 2 " G 2 BSP 207 bar 56.75X3.53 mm
    8391-40-40 FLÄNS 90GR SAE3000 2.1/2 2.1/2 " G 2.1/2 BSP 172 bar 69.44X3.53 mm
    Angle
    90
    Brand Name
    Hydraspecma
    Flange SAE/DIN
    3000 PSI
    Material
    Steel
    Shore
    90
    Standard ISO
    ISO 6162-1
    Standard SAE
    SAE J518 Code 61
    Temperature min.
    -30
