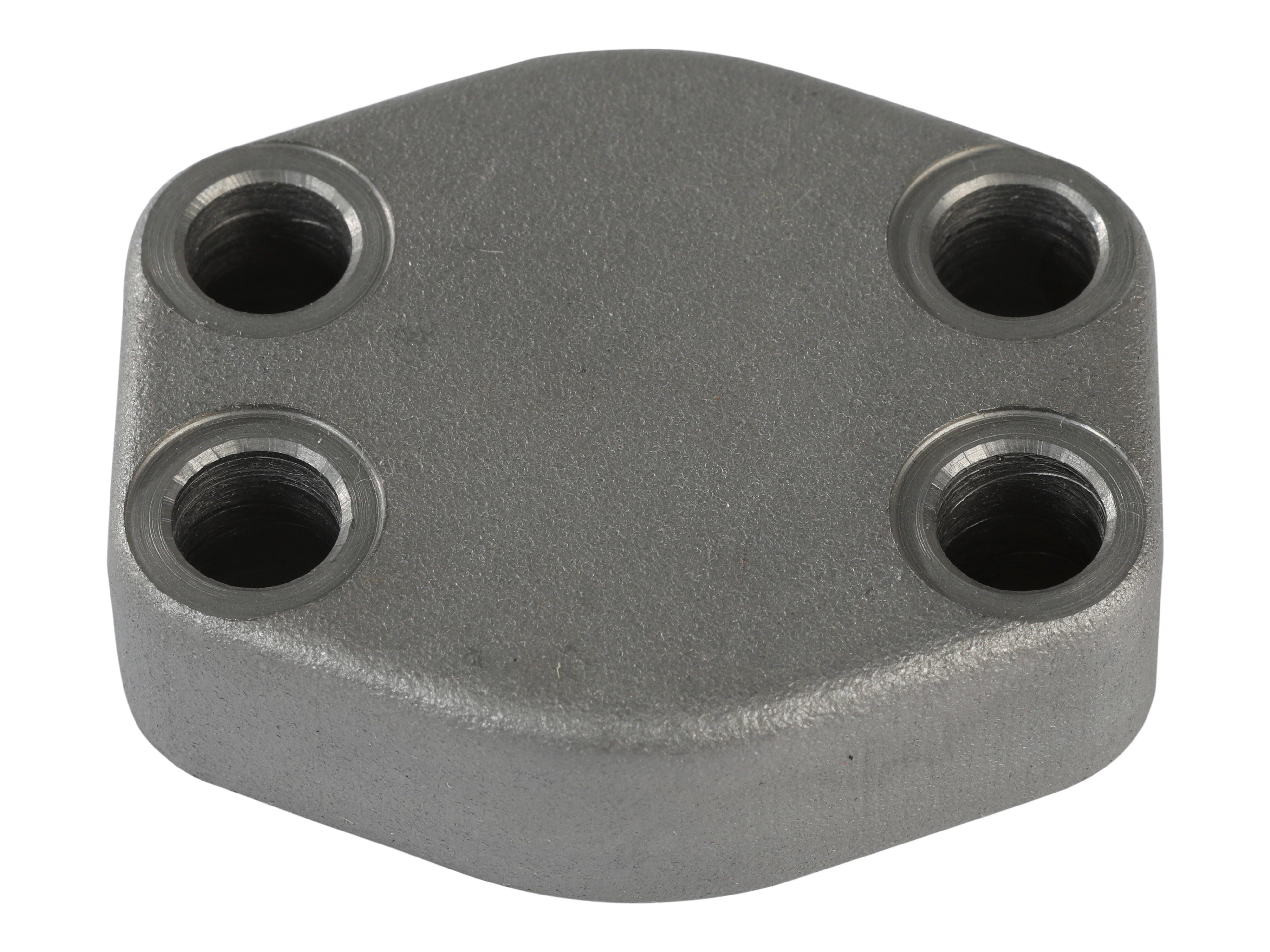

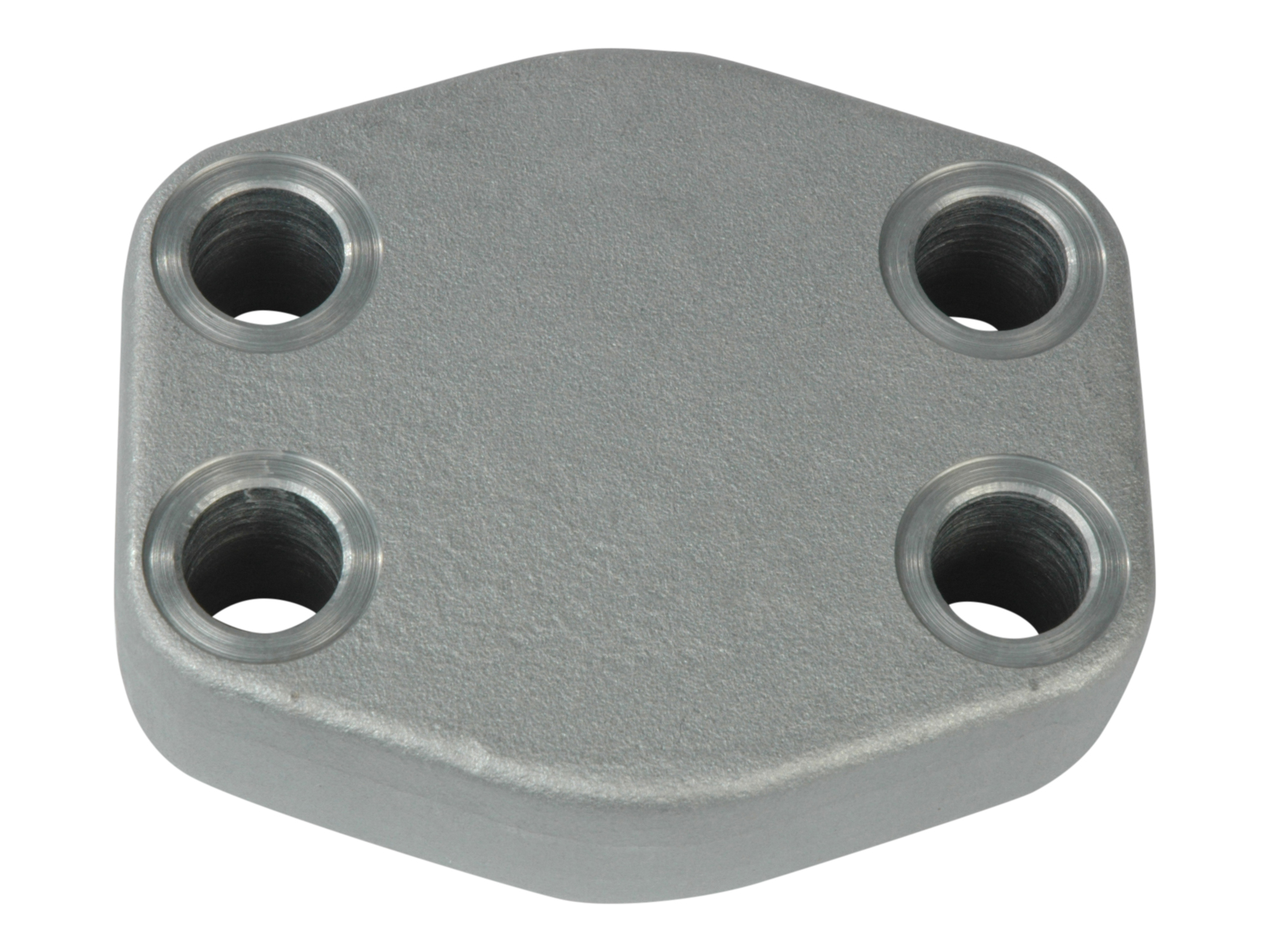

Blind flanges for O-ring - SAE 6000 PSI - AFC4 / 8640

Blind flanges for O-ring - SAE 6000 PSI - AFC4 / 8640

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flange O-ring Bolt dimension Pressure max.
8640-08 Blindfläns, SAE6000PSI 1/2'', med o-ringsspår 1/2 " 18.64X3.53 mm M8x30 mm 414 bar
8640-12 BLINDFLÄNS SAE6000 3/4 3/4 " 24.99X3.53 mm M10x35 mm 414 bar
8640-16 BLINDFLÄNS SAE6000 1 1 " 32.93X3.53 mm M12x45 mm 414 bar
8640-20 BLINDFLÄNS SAE6000 1.1/4 1.1/4 " 37.69X3.53 mm M14x45 mm 414 bar
8640-24 BLINDFLÄNS SAE6000 1.1/2 1.1/2 " 47.22X3.53 mm M16x55 mm 414 bar
8640-32 BLINDFLÄNS SAE6000 2 2 " 56.75X3.53 mm M20x60 mm 414 bar
8640-40 BLINDFLÄNS SAE6000 2.1/2 2.1/2 " 69.44X3.53 mm M24x80 mm 414 bar
8640-48 BLINDFLÄNS SAE6000 3 3 " 85,32X3,53 mm M30x100 mm 414 bar
Brand Name
Hydraspecma
Flange SAE/DIN
6000 PSI
Material
Steel
Pressure max.
414
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Temperature max.
+100
