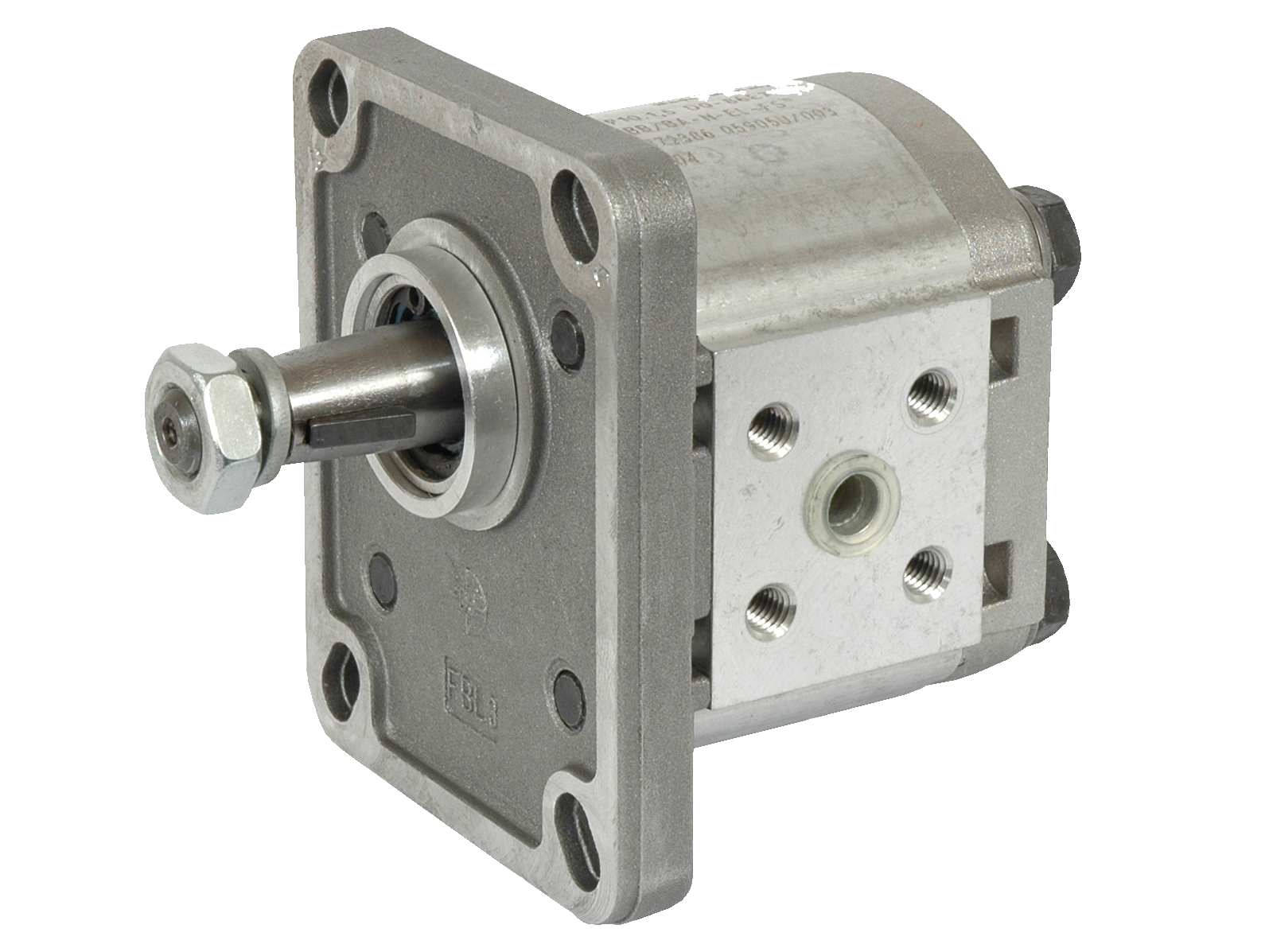

Gear pump gr.1.5 - Casappa, EU flange, shaft 1:8

Gear pump gr.1.5 - Casappa, EU flange, shaft 1:8

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Pressure continous max. Rotational speed max. Rotation direction
003703C3 Gear pump Casappa Grp1 1.07ccm 1:8 shaft - Right 1.07 cm3 260 bar 4000 rpm Right (CW)
003703C9 Gear pump Casappa Grp1 2.67ccm 1:8 shaft - Right 2.67 cm3 260 bar 4000 rpm Right (CW)
003703CC Gear pump Casappa Grp1 3.34ccm 1:8 shaft - Right 3.34 cm3 260 bar 4000 rpm Right (CW)
003703CH Gear pump Casappa Grp1 5.34ccm 1:8 shaft - Right 5.34 cm3 250 bar 4000 rpm Right (CW)
003703CM Gear pump Casappa Grp1 6.67ccm 1:8 shaft - Right 6.67 cm3 230 bar 3500 rpm Right (CW)
003703CS Gear pump Casappa Grp1 10.67ccm 1:8 shaft - Right 10.67 cm3 140 bar 3500 rpm Right (CW)
00372705 Gear pump Casappa Grp1 8.51ccm 1:8 shaft - Right 8.51 cm3 180 bar 3500 rpm Right (CW)
00373054 Gear pump Casappa Grp1 6.67ccm 1:8 shaft - Left 6.67 cm3 230 bar 3500 rpm Left (CCW)
00377209 Gear pump Casappa Grp1 1.07ccm 1:8 shaft - Left 1.07 cm3 260 bar 4000 rpm Left (CCW)
15.10S Gear pump Casappa Grp1 10.67ccm 1:8 shaft - Left 10.67 cm3 140 bar 3500 rpm Left (CCW)
PLP10.2S0-86E7-LBB/BA-N-EL-FS Gear pump Casappa Grp1 2.13ccm 1:8 shaft - Left 2.13 cm3 260 bar 4000 rpm Left (CCW)
PLP10.4S0-86E7-LBB/BA-N-EL-FS Gear pump Casappa Grp1 4.27ccm 1:8 shaft - Left 4.27 cm3 250 bar 4000 rpm Left (CCW)
PLP10.5.8S-86E7-LBB/BA-N-EL-FS Gear pump Casappa Grp1 6.20ccm 1:8 shaft - Left 6.2 cm3 230 bar 3500 rpm Left (CCW)
PLP10.5S0-86E7-LBB/BA-N-EL-FS Gear pump Casappa Grp1 5.34ccm 1:8 shaft - Left 5.34 cm3 250 bar 4000 rpm Left (CCW)
PLP10.8S-86E7-LBB/BA-N-EL-FS Gear pump Casappa Grp1 8.51ccm 1:8 shaft - Left 8.51 cm3 180 bar 3500 rpm Left (CCW)
Brand Name
Casappa
Contamination level max.
19/17/14 - ISO 4406
Flange size suction
1/2
Mounting flange
EU30 - 73x56
Number of mounting holes
4
Oil viscocity recommended
12 - 100
Port inlet
GE30
Port outlet
GE30
Pump group
1,5
Recess
30,0
Shaft cone
1:8
Shaft keyway
3,0
Shaft type
Tapered
Torque input
6
