Orbital motors M+S MH series

Orbital motors M+S MH series

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Shaft diameter Shaft type Continuous power max.

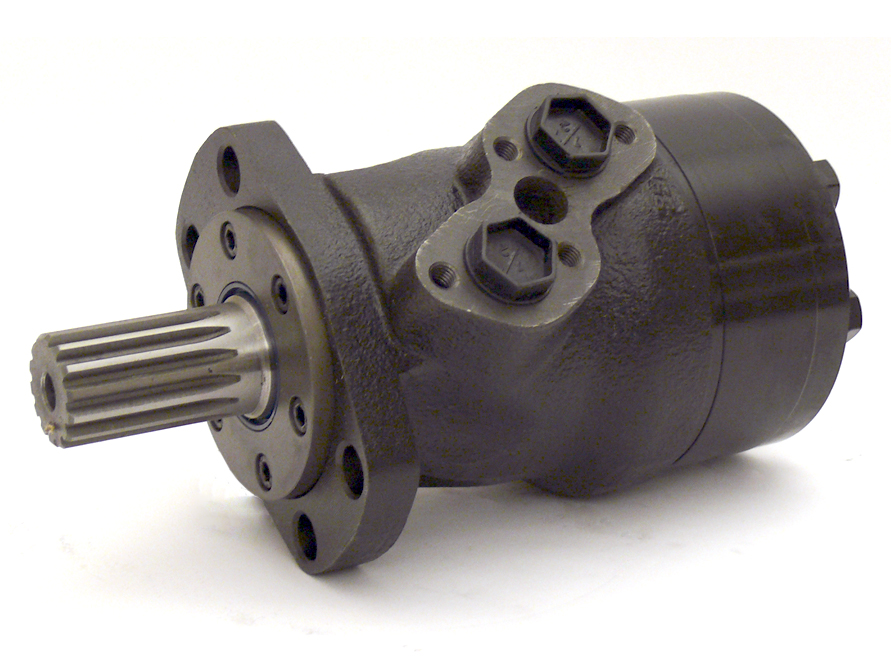

MH200SHP MOTOR*M+S 200cc spl31.75 SAE-A 200 cm3 31,75 mm Spline 16 kW

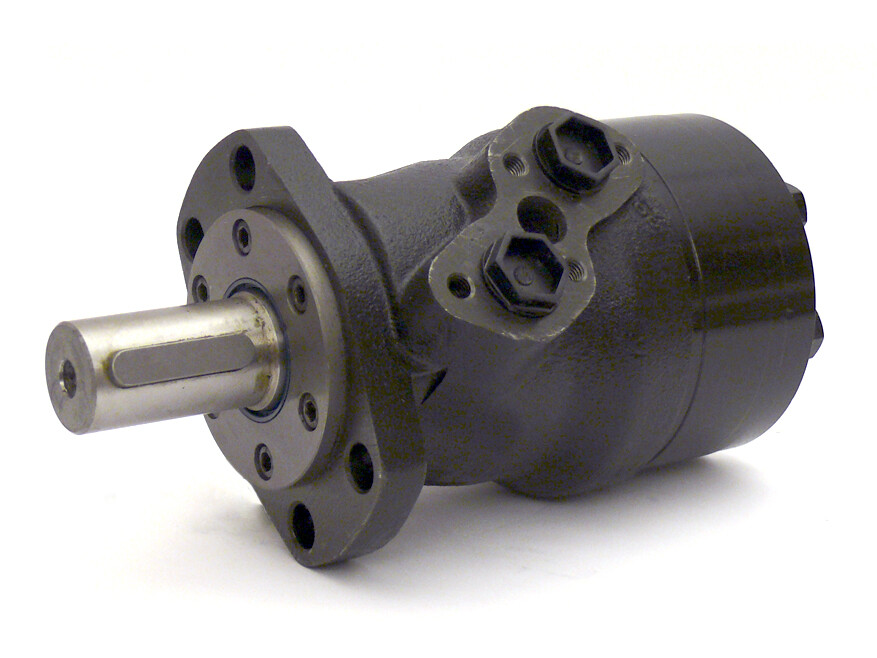

MH250CP MOTOR***M+S 250cc cyl32 SAE-A, 250 cm3 32 mm Cylindrical 16 kW
MH315SHP Motor*M+S 315cc SPL31.75 SAE-A 315 cm3 31,75 mm Spline 14 kW
MH400CP Motor***M+S 400cc cyl32 SAE-A, 400 cm3 32 mm Cylindrical 12.5 kW
MH400SHP Motor*M+S 400cc SPL31.75 SAE-A 400 cm3 31,75 mm Spline 12.5 kW
MH500SHP Motor*M+S 500cc SPL31.75 SAE-A 500 cm3 31,75 mm Spline 11 kW
Brand Name
Hydraspecma
Contamination level max.
18/16/13 - ISO 4406
Drainport
G 1/4
Filtration degree
25
Holes circle
106.4
Mounting flange
SAE-A4 Magneto
Number of mounting holes
4
Oil viscocity recommended
20 - 75
Recess
82,5
Temperature max.
+82
Temperature min.
-40
Working ports
G 1/2
