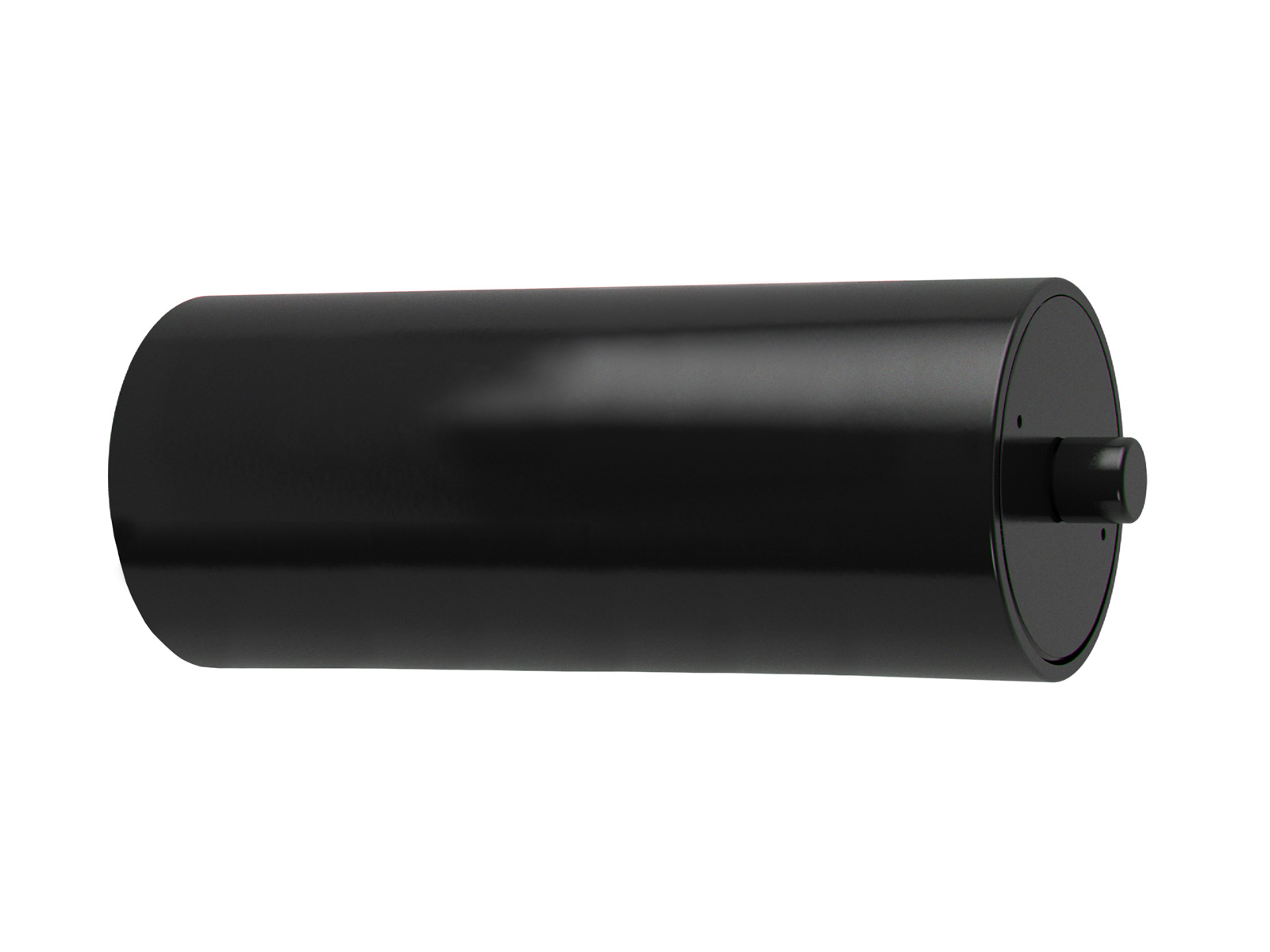

Piston accumulator type HPS

Piston accumulators with robust piston construction and M16X2 thread connection on the nitrogen side. Operating pressure up to 350bar. Suitable for demanding industrial and mobile hydraulic systems.

SELECT VARIANT

Partnumber	Description	Volume	Pressure max.	Diameter	Length
HPS10-350-050-0001	Ackumulator Hydroll 0.1L	0.1 ltr	350 bar	60 mm	130 mm
HPS10-350-050-0002	Ackumulator Hydroll 0.2L	0.2 ltr	350 bar	60 mm	181 mm
HPS10-350-050-0003	Ackumulator Hydroll 0.3L	0.3 ltr	350 bar	60 mm	232 mm
HPS10-350-050-0004	Ackumulator Hydroll 0.4L	0.4 ltr	350 bar	60 mm	283 mm
HPS10-350-050-0005	Ackumulator Hydroll 0.5L	0.5 ltr	350 bar	60 mm	334 mm
HPS10-350-050-0007	Ackumulator Hydroll 0.7L	0.7 ltr	350 bar	60 mm	435 mm
HPS10-350-050-0010	Ackumulator Hydroll 1.0L	1 ltr	350 bar	60 mm	588 mm
HPS10-350-080-0004	Ackumulator Hydroll 0.4L	0.4 ltr	350 bar	95 mm	166 mm
HPS10-350-080-0005	Ackumulator Hydroll 0.5L	0.5 ltr	350 bar	95 mm	186 mm
HPS10-350-080-00075	Ackumulator Hydroll 0,75L	0.75 ltr	350 bar	95 mm	236 mm
HPS10-350-080-0010	Ackumulator Hydroll 1.0L	1 ltr	350 bar	95 mm	286 mm
HPS10-350-080-0015	Ackumulator Hydroll 1.5L	1.5 ltr	350 bar	95 mm	385 mm
HPS10-350-080-0020	Ackumulator Hydroll 2.0L	2 ltr	350 bar	95 mm	485 mm
HPS10-350-080-0030	Ackumulator Hydroll 3.0L	3 ltr	350 bar	95 mm	684 mm
HPS10-350-080-0040	Ackumulator Hydroll 4.0L	4 ltr	350 bar	95 mm	883 mm
HPS10-350-100-0020	Ackumulator Hydroll 2.0L	2 ltr	350 bar	115 mm	381 mm
HPS10-350-100-0030	Ackumulator Hydroll 3.0L	3 ltr	350 bar	115 mm	509 mm
HPS10-350-100-0040	Ackumulator Hydroll 4.0L	4 ltr	350 bar	115 mm	636 mm
HPS10-350-100-0060	Ackumulator Hydroll 6.0L	6 ltr	350 bar	115 mm	891 mm
HPS10-350-100-0080	Ackumulator Hydroll 8.0L	8 ltr	350 bar	115 mm	1146 mm
HPS10-350-100-0100	Ackumulator Hydroll 10.0L	10 ltr	350 bar	115 mm	1400 mm
HPS10-350-140-0040	Ackumulator Hydroll 4.0L	4 ltr	350 bar	160 mm	418 mm
HPS10-350-140-0050	Ackumulator Hydroll 5.0L	5 ltr	350 bar	160 mm	483 mm
HPS10-350-140-0060	Ackumulator Hydroll 6.0L	6 ltr	350 bar	160 mm	548 mm
HPS10-350-140-0100	Ackumulator Hydroll 10.0L	10 ltr	350 bar	160 mm	808 mm
HPS10-350-140-0120	Ackumulator Hydroll 12.0L	12 ltr	350 bar	160 mm	938 mm
HPS10-350-140-0150	Ackumulator Hydroll 15.0L	15 ltr	350 bar	160 mm	1133 mm
HPS10-350-140-0200	Ackumulator Hydroll 20.0L	20 ltr	350 bar	160 mm	1458 mm
HPS10-350-140-0250	Ackumulator Hydroll 25.0L	25 ltr	350 bar	160 mm	1783 mm
HPS10-500-080-0003	Ackumulator Hydroll 0.3L	0.3 ltr	500 bar	95 mm	153 mm
HPS10-500-080-0015	Ackumulator Hydroll 1.5L	1.5 ltr

Specifications
Dimensions and shipping (select variant)

Brand Name

Hydroll

Material

Steel

Temperature max.

+80

Temperature min.

-25

Type

Piston

Product information
Measure sketch (select variant)

Piston accumulators with robust piston construction and M16X2 thread connection on the nitrogen side. Operating pressure up to 350bar. Suitable for demanding industrial and mobile hydraulic systems.
