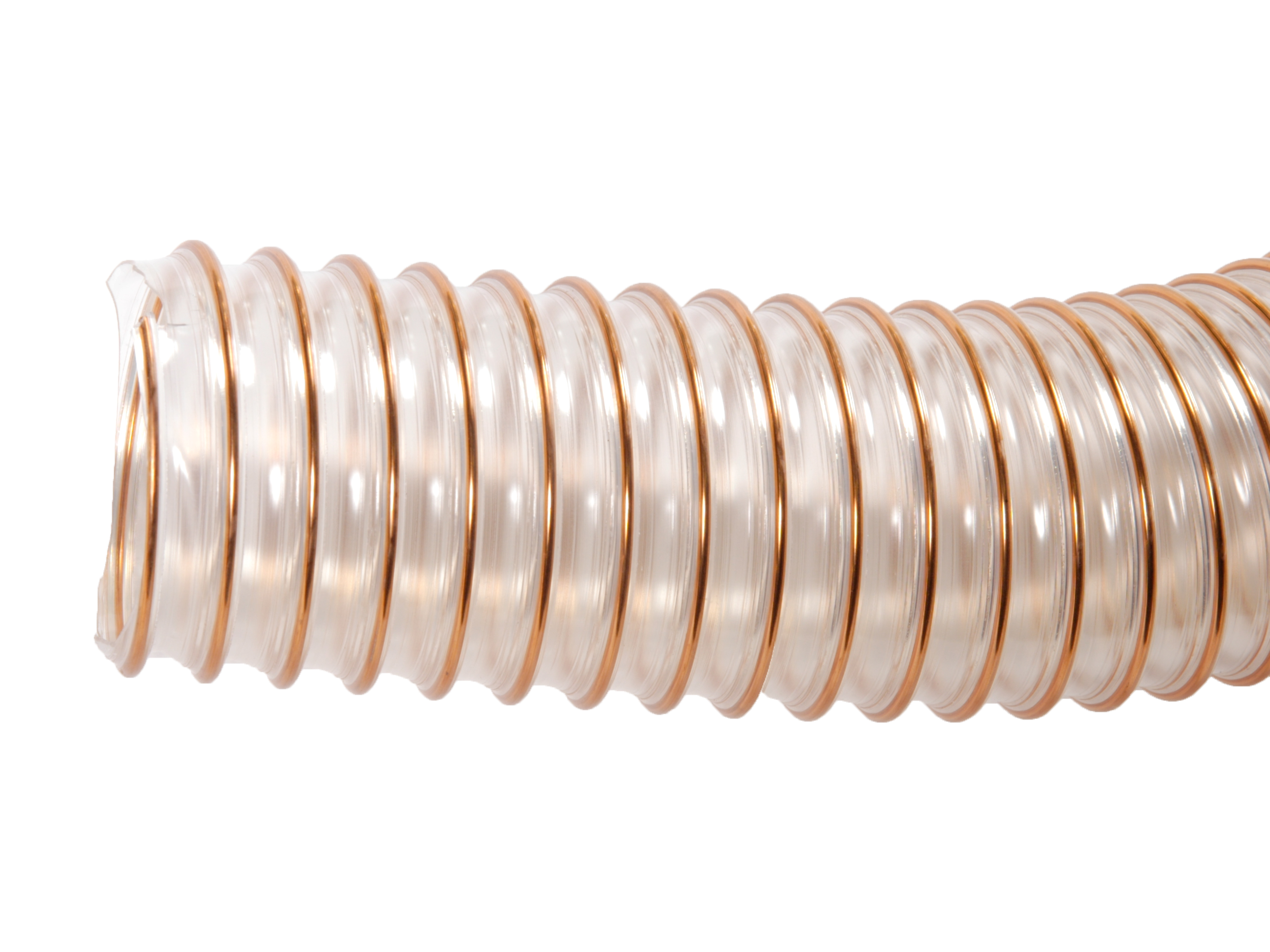

0104082 - PUR H polyurethane hoses

SELECT VARIANT
Partnumber Description Pressure max. Vacuum max. Bend radius Diameter inner
0104082030 Exhaust hose Polyurethane type PUR H Dim. 30 mm 3 bar 0.9 bar 45 mm 30 mm
0104082032 32mm PUR H duct hose - 1.4mm - microbe 3 bar 0.9 bar 48 mm 32 mm
0104082040 40mm PUR H duct hose - 1.4mm - microbe 2.3 bar 0.7 bar 60 mm 40 mm
0104082050 50mm PUR H duct hose - 1.4mm - microbe 1.9 bar 0.6 bar 75 mm 50 mm
0104082065 65mm PUR H duct hose - 1.4mm - microbe 1.8 bar 0.55 bar 98 mm 65 mm
0104082100 Exhaust hose Polyurethane type PUR H Dim. 100 mm 1.1 bar 0.4 bar 150 mm 100 mm
0104082120 120mm PUR H duct hose - 1.4mm - microbe 0.9 bar 0.3 bar 180 mm 120 mm
0104082140 140mm PUR H duct hose - 1.4mm - microbe 0.7 bar 0.2 bar 210 mm 140 mm
0104082160 160mm PUR H duct hose - 1.4mm - microbe 0.6 bar 0.2 bar 240 mm 160 mm
0104082400 Exhaust hose Polyurethane type PUR H Dim. 400 mm 0.2 bar 0.09 bar 600 mm 400 mm
Hose type
P7 M PU AE

Material thickness
1.4

Temperature max.
+100

Temperature min.
-40
