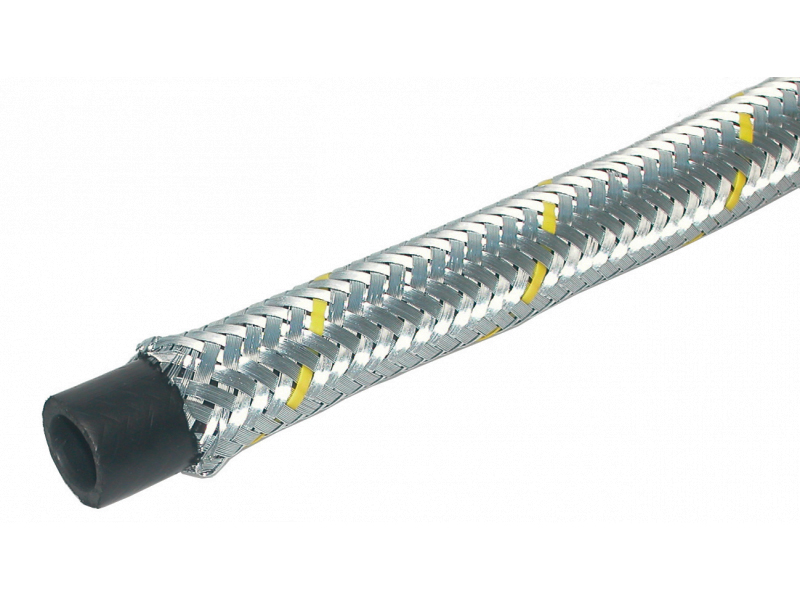

A - fuel hose with steel wire braid DIN73379c

SELECT VARIANT

Partnumber	Description	Diameter inner	Pressure max.	Pressure burst min.	Bend radius
A02	Bränsleslang 4.5/9.5 DIN73379C	4.5 mm	20 bar	60 bar	25 mm
A04	SLANG LÅGTRYCK 5.5 / 9.5 DIN73379C	5.5 mm	20 bar	60 bar	25 mm
A06	SLANG LÅGTRYCK 7.5 / 12.5 DIN73379C	7.5 mm	15 bar	50 bar	30 mm
A08	SLANG LÅGTRYCK 9.0 / 14.0 DIN73379C	9 mm	15 bar	50 bar	40 mm
A10	SLANG LÅGTRYCK 11.0 / 17.7 DIN73379C	11 mm	15 bar	50 bar	45 mm
A13	SLANG LÅGTRYCK 14.0 / 21.2 DIN73379C	14 mm	15 bar	50 bar	50 mm
A16	SLANG LÅGTRYCK 17.0 / 24.0 DIN73379C	17 mm	15 bar	50 bar	70 mm
A20	SLANG LÅGTRYCK 21.5 / 30.0 DIN73379C	21.5 mm	15 bar	50 bar	90 mm
A25	Lågtrycksslang Metallomflätad ID25	25 mm	12 bar	40 bar	150 mm

Brand Name

Hydraspecma

Cover

Braided galvanized steel wire

Field of application

Air, Diesel, Glycol, Grease, Olie, Water

Standard DIN

DIN 73379 C

Standard ISO

ISO 6806

Temperature max.

+80

Temperature min.

-35

Tube

NBR (Nitrile)
