Banjo - ø8LL x 1/8" BSP

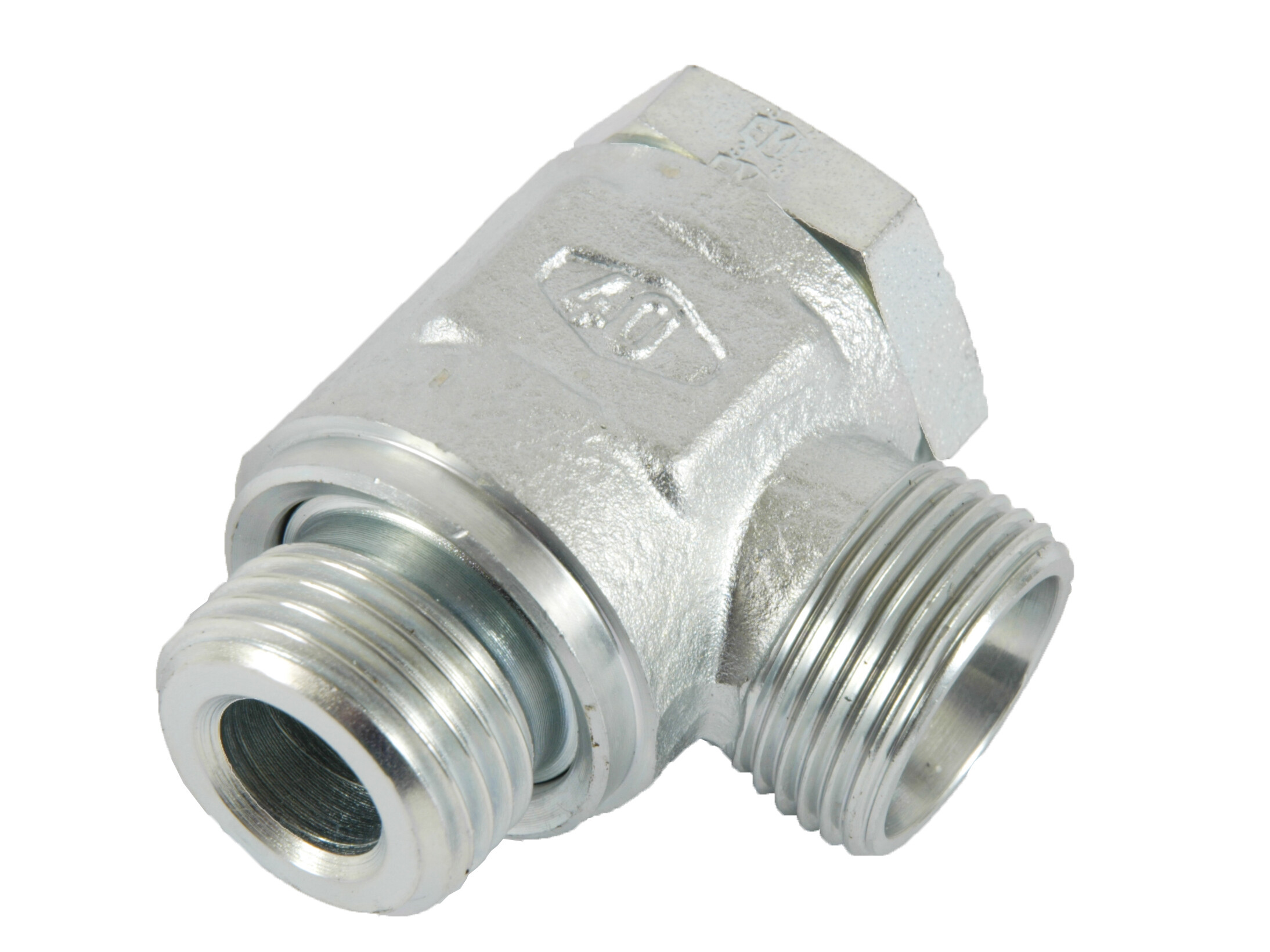

Banjo elbow fitting for routing a hydraulic line through a 90° angle where a compact banjo-style connection is needed. One side is sized for Ø8 mm tube in LL series; the port connection is G 1/8 BSP with an external metallic sealing ring interface according to DIN 3852-2 Form X / ISO 1179-1.
Zinc-nickel plated steel body with NBR sealing material. Rated for max. 100 bar with a safety factor of 2.5, and specified for -35 °C to +100 °C operating temperature.
Typical Applications
- 90° connection from a BSPP threaded port to an Ø8 mm LL tube line in hydraulic circuits
- Compact line routing where a banjo-style elbow connection is required
Artikelnummer:
XSWVE08LLR
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
Angle
90 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
D1
8 mm
D2
13 mm
Diameter pipe
8 mm
L
16,5 mm
L1
23 mm
L2
11 mm
L3
21 mm
L4
10 mm
Material
Steel
Model code
XSBD8RLLZN
Pressure max.
100 bar
REACH compliant
Yes
RoHs compliant
Yes
S1
14 mm
S2
14 mm
S3
14 mm
Safety factor
2.5
Sealing material
NBR
Series
LL
Standard DIN
DIN 3852-2 - Form X
Standard ISO
ISO 1179-1
Surface treatment
Zinc-Nickel plated
T
G 1/8 BSP
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread outer
G 1/8 BSP
Thread outer metric
M12x1
Type
Forged
i
6 mm
Pakke str.
1 pcs
Stregkode
337301
Brutto vægt
0,03 Kg
Netto vægt
0,03 Kg
Oprindelsesland
DEU
Intrastat varekode
73071110
Banjo elbow fitting for routing a hydraulic line through a 90° angle where a compact banjo-style connection is needed. One side is sized for Ø8 mm tube in LL series; the port connection is G 1/8 BSP with an external metallic sealing ring interface according to DIN 3852-2 Form X / ISO 1179-1.
Zinc-nickel plated steel body with NBR sealing material. Rated for max. 100 bar with a safety factor of 2.5, and specified for -35 °C to +100 °C operating temperature.
Typical Applications
- 90° connection from a BSPP threaded port to an Ø8 mm LL tube line in hydraulic circuits
- Compact line routing where a banjo-style elbow connection is required
