Cross fitting - øS - AISI316
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Varenummer:
XK06S-SY
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Brand Name
Volz
Diameter pipe
6 mm

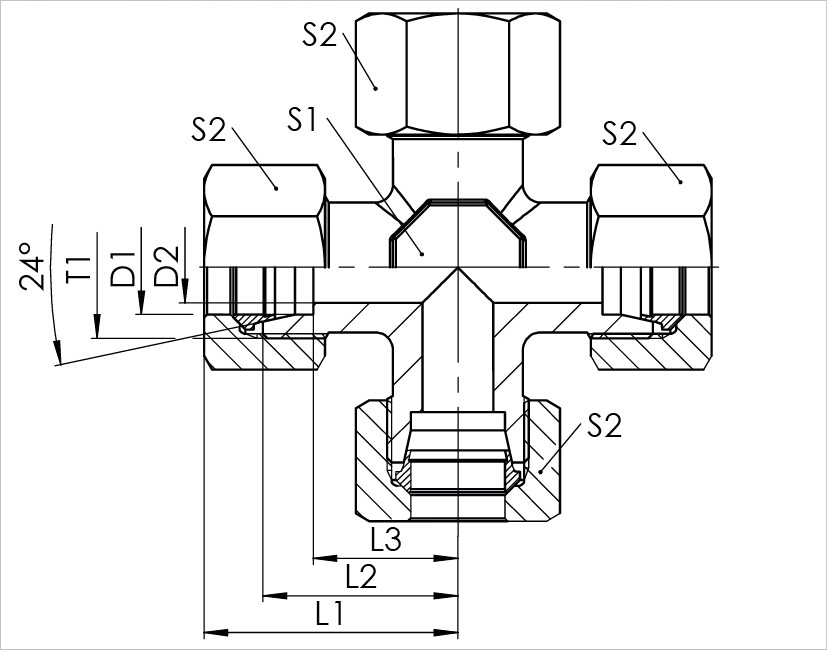

Dimension D1
6 mm
Dimension D2
4 mm
Dimension L1
31 mm
Dimension L2
23 mm
Dimension L3
16 mm
Dimension S1
12 mm
Dimension S2
17 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
XKV 06 S
Pressure max.
800 bar
Safety factor
4
Series
S
Temperature max.
+400 °C
Temperature min.
-60 °C
Thread T
M14x1,5
Thread inner metric
M14x1,5
Thread outer metric
M14x1,5
Package size
1 st
Barcode
365275
Gross weight
Kg
Net weight
Kg
Country of origin
DEU
Intrastat code
73072910
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
