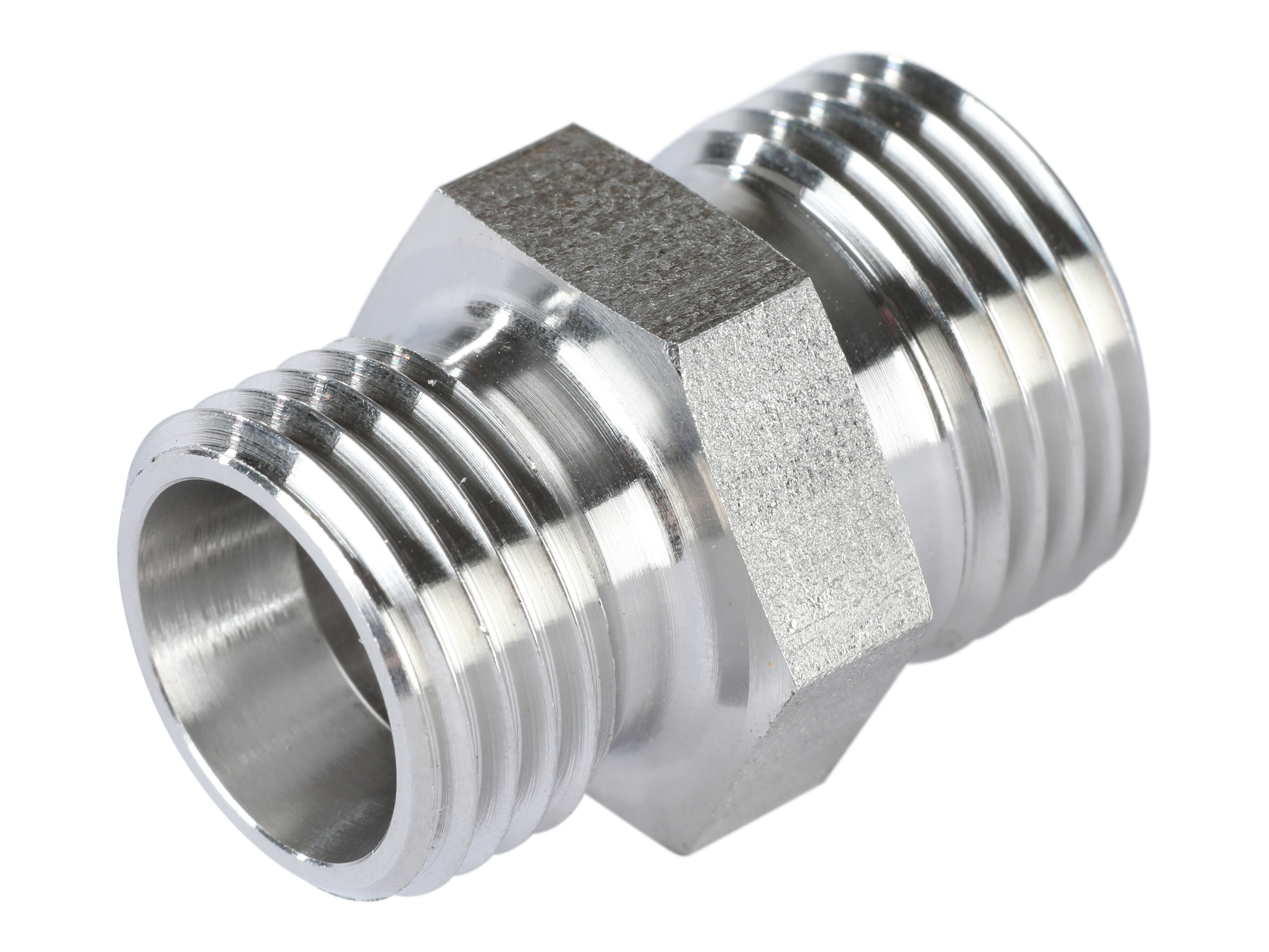

Reducing adaptor - ø28L x ø18L - AISI316
Temperature/pressure reduction:
-55°C - +20°C = 0%.
+20°C - +50°C = 4.5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Varenummer:
XGR2818L-SY
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Angle
0 °
Brand Name
Volz
D1
28 mm
D3
18 mm
D4
15 mm
Diameter pipe
28 - 18 mm
L1
54,5 mm
L2
34 mm
L3
19 mm
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Model code
XGRV 28 18 L
Pressure max.
250 bar
REACH compliant
Yes
RoHs compliant
Yes
S1
41 mm
S2
41 mm
S3
32 mm
Safety factor
4
Series
L
Series 1
L
Series 2
L
Temperature max.
+400 °C
Temperature min.
-55 °C
Thread T
M36x2
Thread T1
M36x2
Thread T2
M26x1,5 mm
Thread outer metric
M26x1,5, M36x2
d1
28 mm
d2
24 mm
Förpackningsstorlek
1 st
Streckkod
355683
Bruttovikt
0,14 Kg
Nettovikt
0,14 Kg
Ursprungsland
DEU
Intrastat artikelkod
73072910
Temperature/pressure reduction:
-55°C - +20°C = 0%.
+20°C - +50°C = 4.5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
