Adapter 22L-12L
Temperature/pressurereduction: -60°C - +20°C = 0%. +20°C - +50°C = 5%. +50°C - +100°C = 11%. +100°C - +200°C = 20%. +200°C - +300°C = 29%. +300°C - +400°C = 33%.
Varenummer:
XGR2212L-SY
Pakke str.:
1 pcs
Min. bestillingsenhed er:
1 pcs
Angle
0 °
Brand Name
PH Industrie-Hydraulik

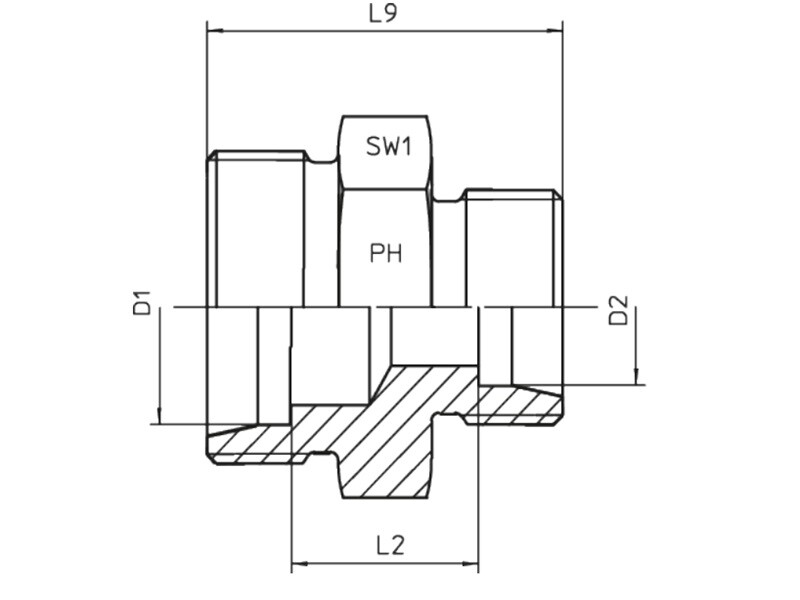

D1
22 mm
Diameter pipe
20 - 18 mm
L2
17,5 mm
L9
32 mm
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Model code
GRV-L-22/12-OMD
Pressure max.
250 bar
REACH compliant
Yes
RoHs compliant
Yes
SW1
32 mm
Safety factor
4
Series
L
Series 1
L
Series 2
L
Temperature max.
+400 °C
Temperature min.
-55 °C
Thread outer metric
M18x1,5, M30x2
d2
12 mm
Package size
1 pcs
Barcode
355660
Gross weight
Kg
Net weight
Kg
Country of origin
deu
Temperature/pressurereduction: -60°C - +20°C = 0%. +20°C - +50°C = 5%. +50°C - +100°C = 11%. +100°C - +200°C = 20%. +200°C - +300°C = 29%. +300°C - +400°C = 33%.
