Stud fitting - ø10L x M16x1.5 - WD seal
Stud fitting - ø10L x M16x1.5 - WD seal
Partnumber:
XGE10LM18ED
Package size:
50 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
Stauff
Diameter pipe
10 mm

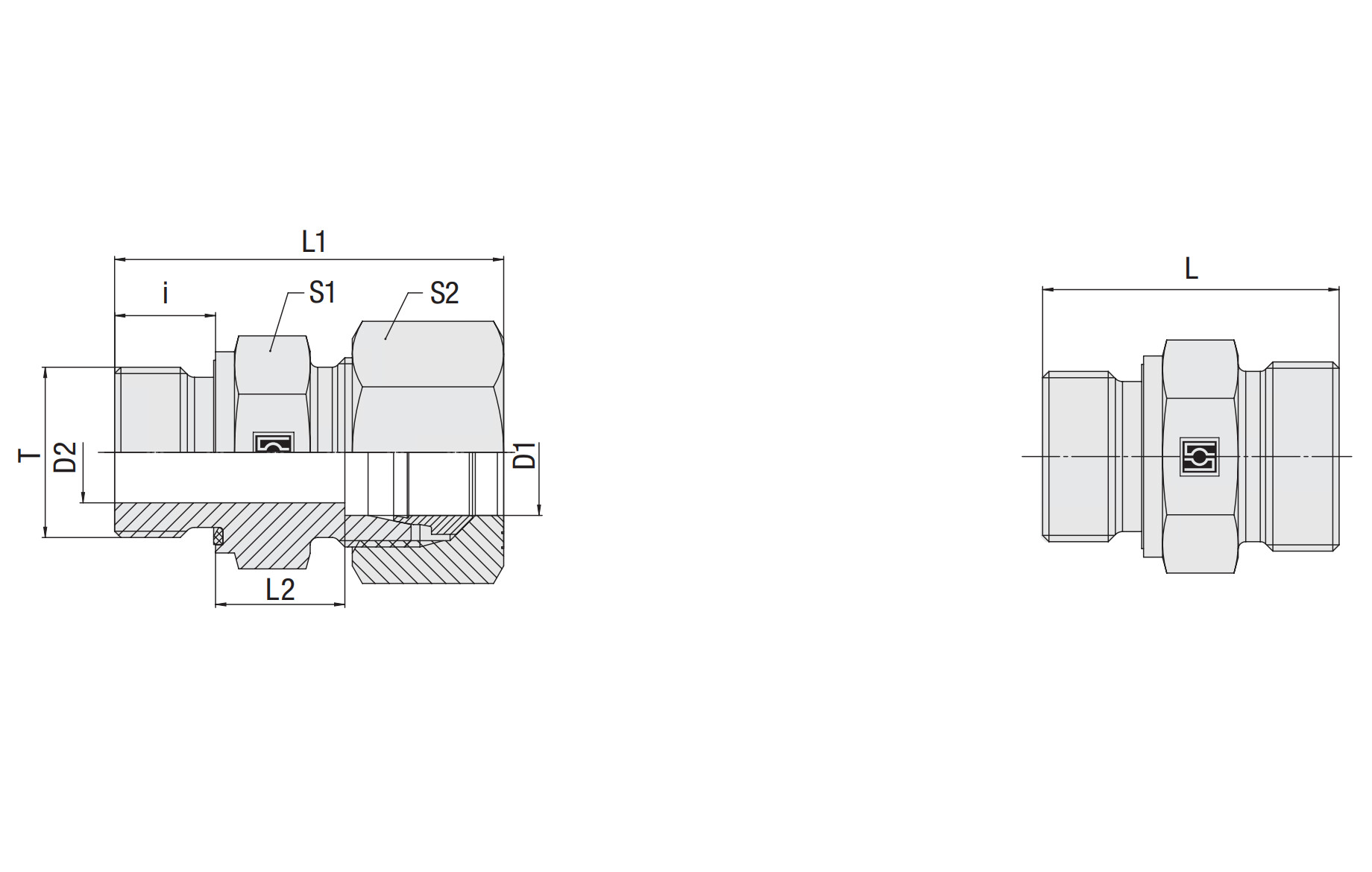

Dimension D1
10 mm
Dimension D2
8 mm
Dimension L
31.5 mm
Dimension L1
39.5 mm
Dimension L2
12.5 mm
Dimension S1
24 mm
Dimension S2
19 mm
Dimension i
12 mm
Material
Steel
Model code
FI-GE-10LM18x1.5-WD-B-W3
Pressure max.
400 bar
Series
L
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T
M18x1,5
Torque tightening
70 Nm
Package size
50 st
Barcode
306973
Gross weight
Kg
Net weight
Kg
Country of origin
deu
Intrastat code
73071110
