XGAI38SR - Adapter 38S, G1.1/2''

XGAI38SR - Adapter 38S, G1.1/2''

XGAI38SR - Adapter 38S, G1.1/2''

XGAI38SR - Adapter 38S, G1.1/2''

Varenummer:

XGAI38SR

Pakke str.:

1 st

Min. bestillingsenhed er:

1 st

Tilbehør (1)

Cutting ring - ø38S

Partnumber: DPR38S

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

Stauff

Corrosion resistance

1200 hours salt spray DIN EN ISO 9227

Diameter pipe

38 mm

Dimension D1

38 mm

Dimension D2

32 mm

Dimension L

59.5 mm

Dimension L1

74.5 mm

Dimension L2

43.5 mm

Dimension L3

28.5 mm

Dimension S1

60 mm

Dimension S2

60 mm

Material

Stål

Model code

FI-GA-38SR-W3

Pressure max.

400 bar

REACH compliant

Ja

RoHs compliant

Ja

Safety factor

4

Series

S

Surface treatment

Zink-Nickel

Temperature max.

+120 °C

Temperature min.

-40 °C

Thread T

G 1.1/2 BSP

Thread inner

G 1.1/2 BSP

Package size

1 st

Barcode

337043

Gross weight

0,61 Kg

Net weight

0,61 Kg

Country of origin

DEU

Intrastat code

73071110

Product information

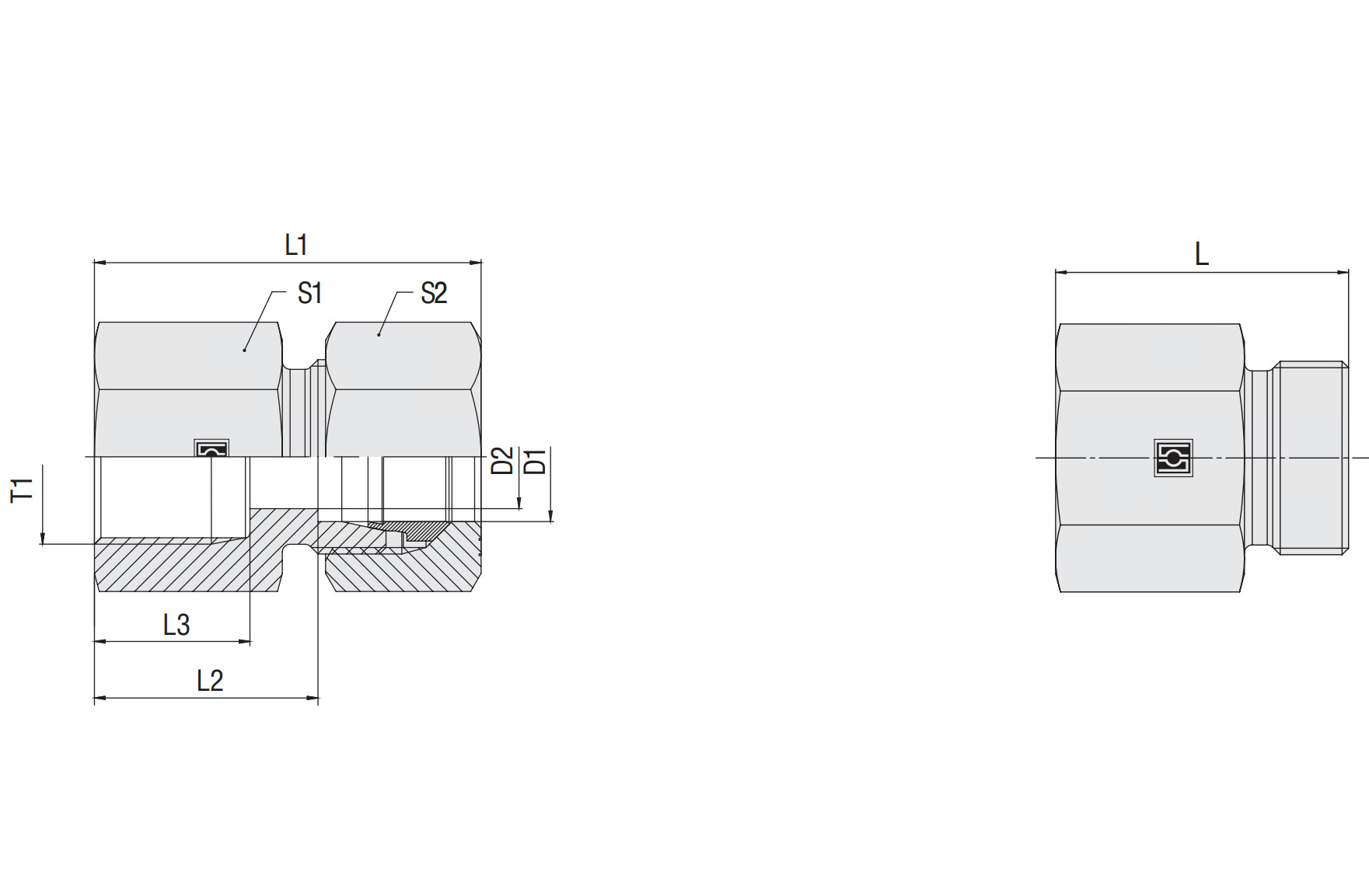

Measure sketch

Note: Opening 3D files requires a program that supports the file format

XGAI38SR - Adapter 38S, G1.1/2''
