Kalvoakku ECO 0,75L 210bar

WA diaphragm accumulator (0.75 L) for 210 bar. Suitable for industrial and mobile hydraulic systems with a need for energy storage, pulse damping and pressure compensation. Connection: G1/2".

Advantages

  • High energy density thanks to compact, spherical design
  • Efficient for shock absorption, vibration and leak compensation
  • Light weight and mountable in all positions
  • Compliant with PED 2014/68/EU and EN 14359:2017

Typical applications

  • Mobile machinery such as tractors and construction equipment
  • Suspension and emergency braking systems
  • Machine tools and automated systems
  • Hydraulic systems with pulsating flow or temperature fluctuations

Supplied without nitrogen precharge. For pre-charging we offer customized solutions - please contact sales.

Artikelnummer:
WA075082

Förpackningsstorlek:
1 st

Minsta beställningskvantitet:
1 st
Brand Name
Saip

Comment
M33x1,5uk

Connection Thread
G1/2"

Diameter
117 mm

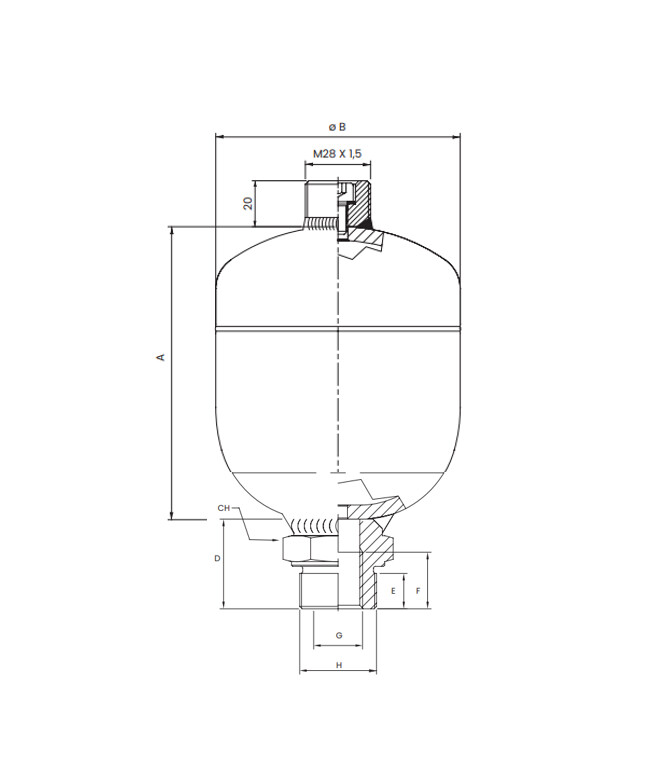

Dimension A
132 mm

Dimension B
117 mm

Dimension CH
41 mm

Dimension D
38 mm

Dimension E
15 mm

Dimension F
24 mm

Flow rate max. recommended
90 lpm

Gas valve
M28X1.5

Length
132 mm

Material
Carbon steel

Pressure difference ratio max.
6:1

Pressure max.
210 bar

Separating Element
ECO

Temperature max.
+120 °C

Temperature min.
-30 °C

Test Standards
PED 2014/68/EU, EN 14359:2017, EN13445-3:2021

Type
Membrane

Volume
0.75 ltr
Package size
1 st

Barcode
411465

Gross weight
3,20 Kg

Net weight
3,20 Kg

Country of origin
IT

WA diaphragm accumulator (0.75 L) for 210 bar. Suitable for industrial and mobile hydraulic systems with a need for energy storage, pulse damping and pressure compensation. Connection: G1/2".

Advantages

  • High energy density thanks to compact, spherical design
  • Efficient for shock absorption, vibration and leak compensation
  • Light weight and mountable in all positions
  • Compliant with PED 2014/68/EU and EN 14359:2017

Typical applications

  • Mobile machinery such as tractors and construction equipment
  • Suspension and emergency braking systems
  • Machine tools and automated systems
  • Hydraulic systems with pulsating flow or temperature fluctuations

Supplied without nitrogen precharge. For pre-charging we offer customized solutions - please contact sales.
