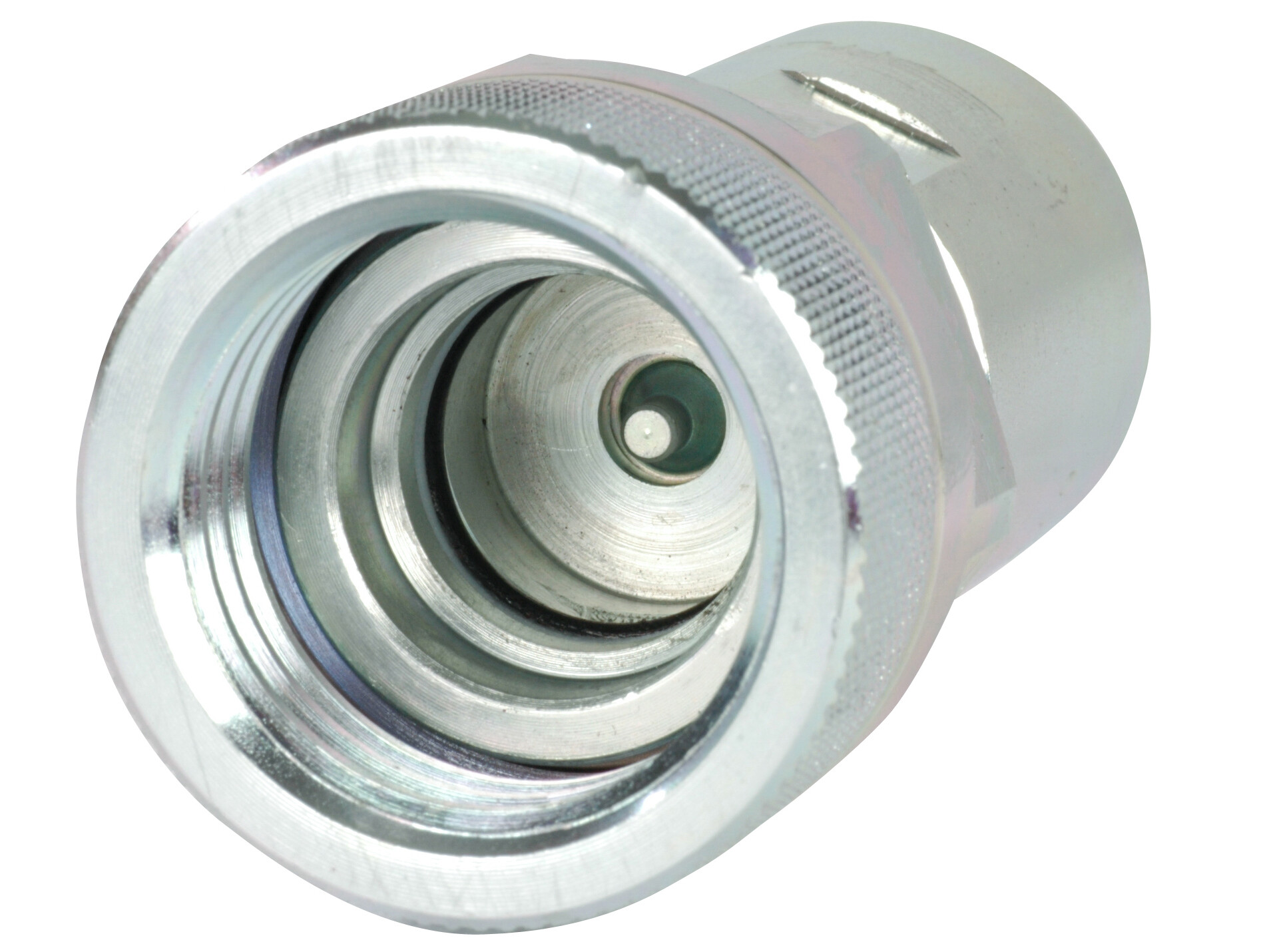

Screw coupling female VVS - DN10 - 3/8"BSP
Connection system: screw-on.
Pressure range up to 800 bar.
Disconnection system: screw-on
Shut-off system: poppet valve
Connectability: both male and female couplings under pressure.
Varenummer:
VVS38GASF
Pakke str.:
16 st
Min. bestillingsenhed er:
1 st
DN
10 mm
Dimension A
G 3/8 BSP
Dimension B
76 mm
Dimension D
40 mm
Dimension X1
30 mm
Flödeshastighet nominell LMin
18 lpm
Gänga inv.
G 3/8 BSP
ISO storlek
10
Modell kod
VVS 38 GAS F
Märke namn
Faster
Packningsmaterial
NBR
Rostbeständighet
500 hours salt spray ISO 9227
Storlek
3/8 "
Temperatur max.
+125 °C
Temperatur min.
-25 °C
Tillverkningsmaterial
Steel
Tryck max.
800 bar
Ytskiktbehandling
Zinc coating (CR III)
Package size
16 st
Barcode
189873
Gross weight
0,38 Kg
Net weight
0,38 Kg
Country of origin
ITA
Intrastat code
84812010
Connection system: screw-on.
Pressure range up to 800 bar.
Disconnection system: screw-on
Shut-off system: poppet valve
Connectability: both male and female couplings under pressure.
