Rak Push-in, 6mm skarv, SY
The XVR series of acid-resistant push-in nipples are suitable for use in aggressive environments and critical installations. Suitable for use with food and clean water.
Partnumber:
SXUC-0600
Package size:
5 st
Min. order quantity is:
1 st
Angle
0 °
Area of use
Compressed air, Gas and liquids compatible with constituent materials, Vacuum
Brand Name
Tierre
Diameter pipe
6 mm

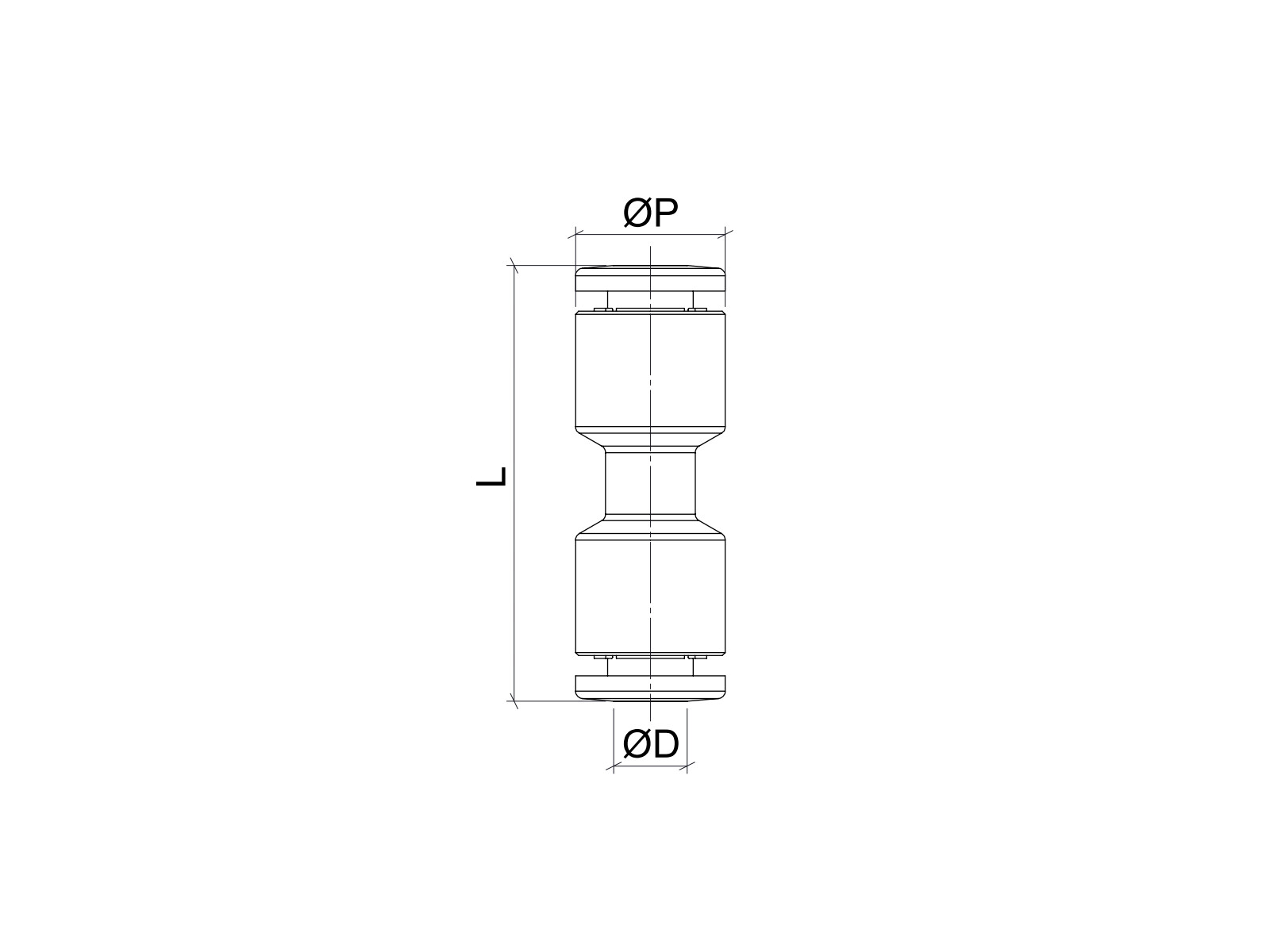

Dimension L
32 mm
Dimension ØD
6 mm
Dimension ØP
12 mm
Material
Stainless steel
Material quality
AISI 316L
Model code
XVRUC06
Pipe Groove Dimension A
0.23 mm
Pipe Groove Dimension L
8 mm
Pressure max.
20 bar
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
FKM/FPM (Viton®), PVDF-UHM
Standard
Silicone Free
Standard EN
DM 174/2004, EC 1935/2004, ICIM Food, ICIM Water
Standard SAE
NSF/ANSI 169
Temperature max.
+150 °C
Temperature min.
-20 °C
Tube Insertion Depth
15.5 mm
Tube Tollerance
ØD1 ± 0,1 mm
Vacuum max.
-0.95 bar
Pakke str.
5 st
Stregkode
298273
Brutto vægt
Kg
Netto vægt
Kg
Oprindelsesland
ita
The XVR series of acid-resistant push-in nipples are suitable for use in aggressive environments and critical installations. Suitable for use with food and clean water.
