BANJOKOPPLING 6LL UTV M10x1.0
BANJOKOPPLING 6LL UTV M10x1.0
Partnumber:
SWVE06LLM
Package size:
10 pcs
Min. order quantity is:
1 pcs
Angle
90 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227

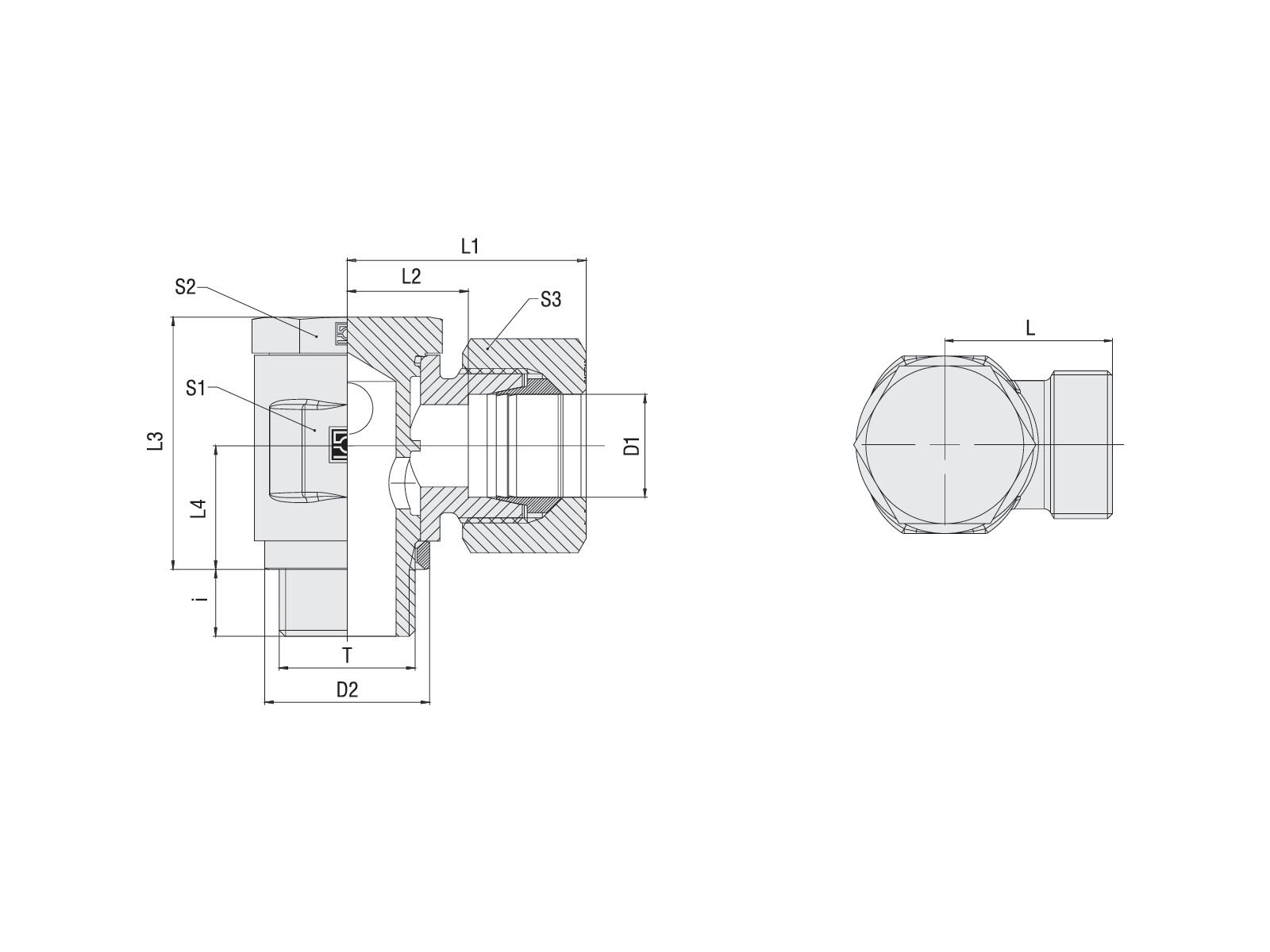

D1
6 mm
D2
13 mm
Diameter pipe
6 mm
L
15,5 mm
L1
21 mm
L2
10 mm
L3
21 mm
L4
10 mm
Material
Steel
Model code
FI-RSWND-06LLM-DK-W3-MS
Pressure max.
100 bar
S1
14 mm
S2
14 mm
S3
12 mm
Safety factor
2.5
Sealing material
NBR
Series
LL
Standard DIN
DIN 3852-1 - Form X
Standard ISO
ISO 9974-1
Surface treatment
Zinc-Nickel plated
T
M10x1
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread outer metric
M10x1
Type
Forged
i
6 mm
Package size
10 pcs
Barcode
130584
Gross weight
0,039 Kg
Net weight
0,039 Kg
Country of origin
deu
Intrastat code
73071110
BANJOKOPPLING 6LL UTV M10x1.0
