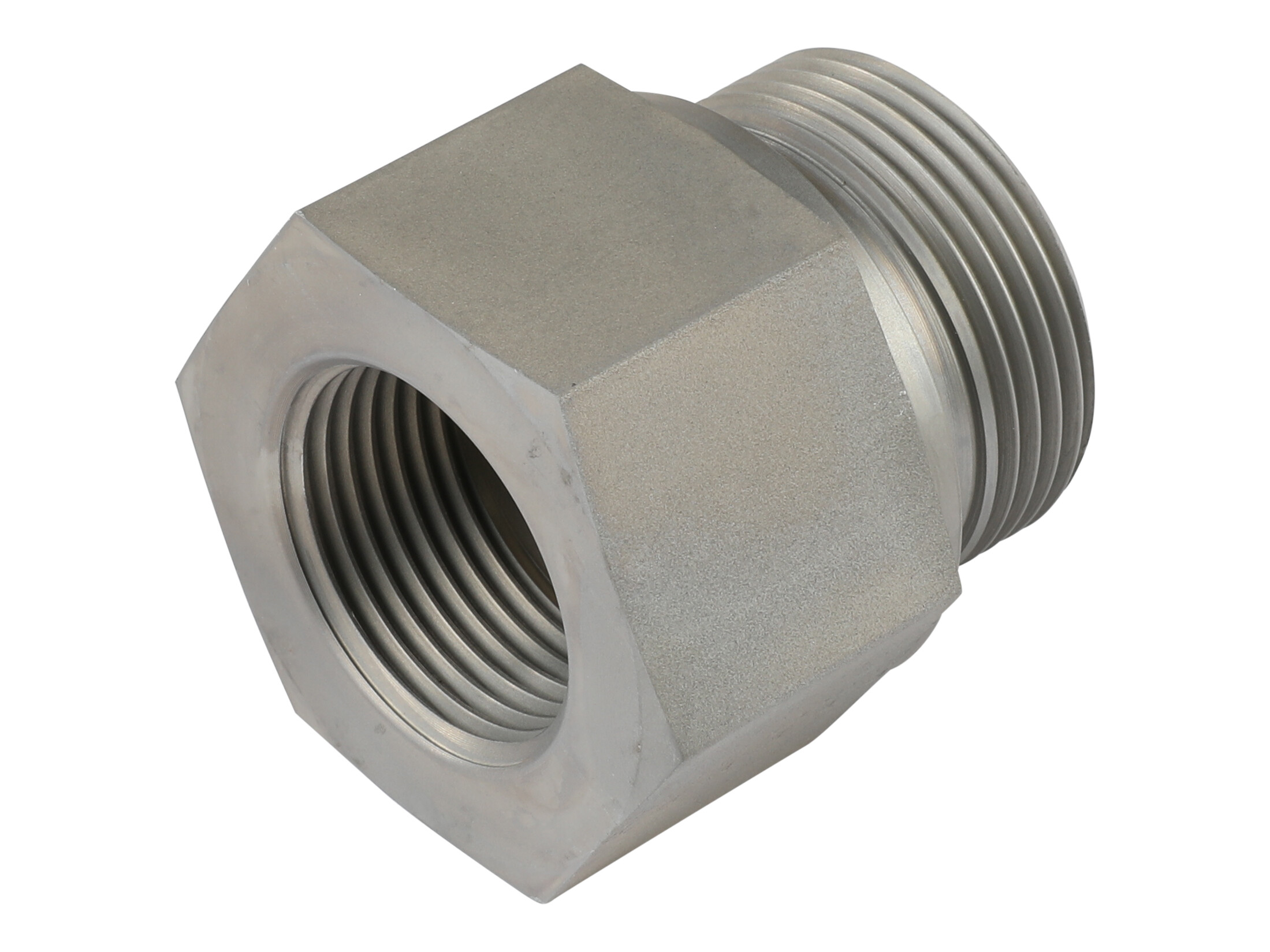

Reduction - 1.1/4" BSP x 1 BSP female - WD seal
Thread reducer for adapting between two Whitworth parallel pipe threads (BSPP), with a G 1.1/4 external thread on one side and a G 1 internal thread on the other. The WD profile sealing ring provides sealing at the threaded interface.
Designed for hydraulic and fluid power pipework where a reduction between BSPP port sizes is required. The part is zinc-nickel plated and uses an NBR seal. Rated for a maximum working pressure of 400 bar and a temperature range from -35 to +100.
Typical Applications
- Adapting BSPP port sizes in hydraulic lines, manifolds, and components
- Service and repair work where a G 1.1/4 connection must be reduced to G 1
Partnumber:
RI-114-1ED
Package size:
10 pcs
Min. order quantity is:
1 pcs
D2
25 mm
Gevind indvendig
G 1 BSP
Gevind udvendig
G 1.1/4 BSP
Korrosions resistens
1200 hours salt spray DIN EN ISO 9227
L1
53 mm
L2
24,5 mm
Længde
53 mm
Materiale
Steel
Model kode
FI-RED-R1-1/4-WD-R1-B-W3
Mærke navn
Stauff
Overfladebehandling
Zinc-Nickel plated
Pakningsmateriale
NBR
REACH compliant
Yes
RoHs compliant
Yes
S1
50 mm
Sekskant
50 mm
Sikkerhedsfaktor
4
Temperatur maks.
+100 °C
Temperatur min.
-35 °C
Thread T1
G 1.1/4 BSP
Thread T2
G 1 BSP
Totallængde
53 mm
Tryk maks.
400 bar
Type
Long
Vinkel
0 °
i
20 mm
Package size
10 pcs
Barcode
130475
Gross weight
0,47 Kg
Net weight
0,47 Kg
Country of origin
DEU
Intrastat code
73071110
Thread reducer for adapting between two Whitworth parallel pipe threads (BSPP), with a G 1.1/4 external thread on one side and a G 1 internal thread on the other. The WD profile sealing ring provides sealing at the threaded interface.
Designed for hydraulic and fluid power pipework where a reduction between BSPP port sizes is required. The part is zinc-nickel plated and uses an NBR seal. Rated for a maximum working pressure of 400 bar and a temperature range from -35 to +100.
Typical Applications
- Adapting BSPP port sizes in hydraulic lines, manifolds, and components
- Service and repair work where a G 1.1/4 connection must be reduced to G 1
