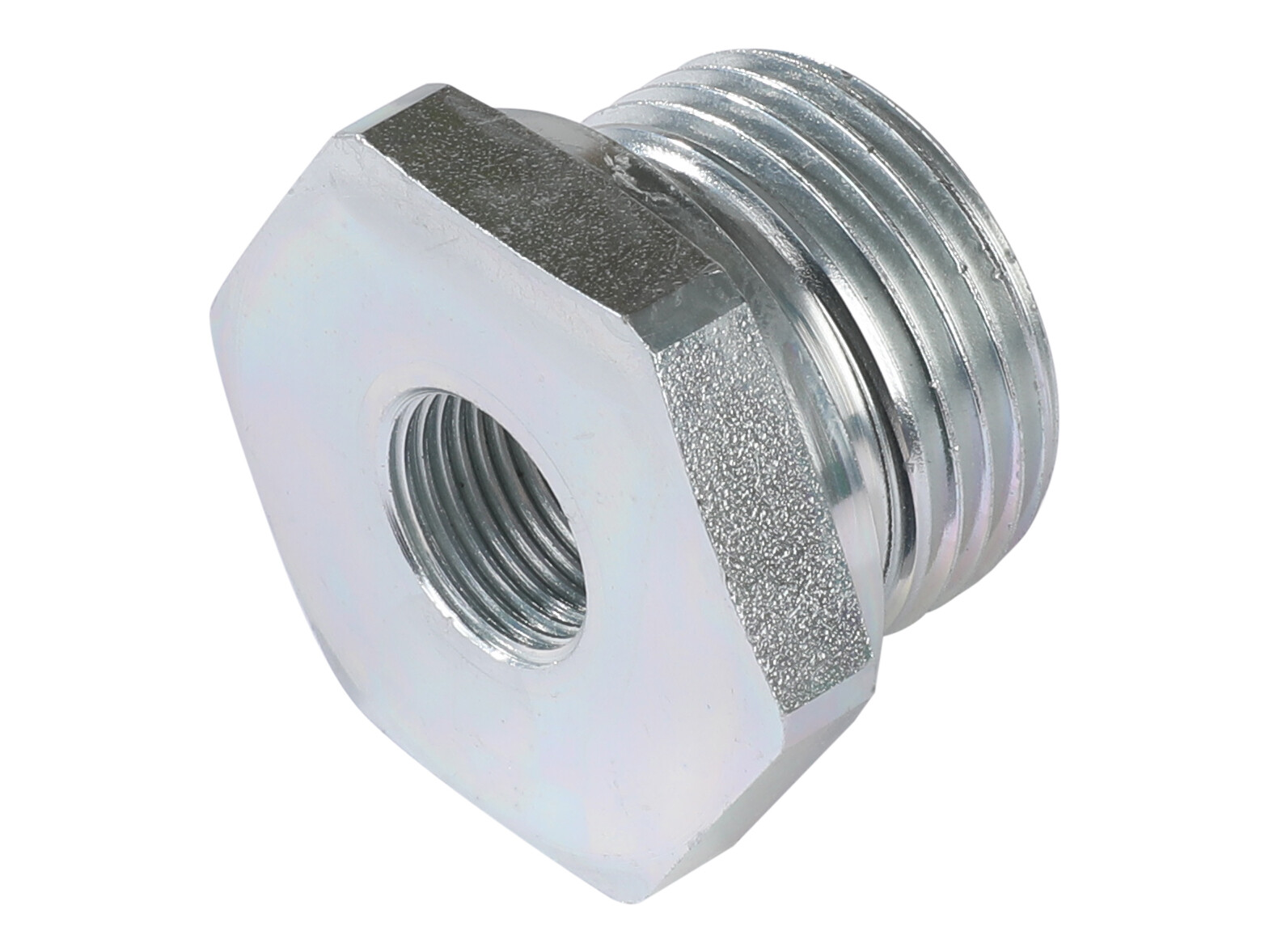

Reduction - 1" BSP x 3/8" BSP female - WD seal
Thread reducer for adapting between two Whitworth parallel pipe threads (BSPP) in a hydraulic connection, reducing from G 1 on the male side to G 3/8 on the female side. The integrated profile sealing ring interface is used to achieve sealing at the connection.
Designed for hydraulic installations where a component or line with G 3/8 female thread needs to be connected to a G 1 female port via a reducer. Rated up to 400 bar and specified for -35 to +100 °C. Zinc-nickel plated surface treatment and NBR sealing material are specified.
Typical Applications
- Reducing BSPP port size between hydraulic components, manifolds, and valve blocks
- Hydraulic pipework and hose assemblies where a G 1 to G 3/8 adapter with profile sealing ring is required
Partnumber:
RI-1-38ED
Package size:
20 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
D2
29 mm
Diameter pipe
0 mm
Hexagon
41 mm
L1
29 mm
L2
12,5 mm
Length
29 mm
Material
Steel
Model code
FI-RED-R1-WD-R3/8-B-W3
Pressure max.
400 bar
REACH compliant
Yes
RoHs compliant
Yes
S1
41 mm
Safety factor
4
Sealing material
NBR
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T1
G 1 BSP
Thread T2
G 3/8 BSP
Thread inner
G 3/8 BSP
Thread outer
G 1 BSP
Total length
29 mm
Type
Short
i
18 mm
Package size
20 pcs
Barcode
130461
Gross weight
0,17 Kg
Net weight
0,17 Kg
Country of origin
DEU
Intrastat code
73071110
Thread reducer for adapting between two Whitworth parallel pipe threads (BSPP) in a hydraulic connection, reducing from G 1 on the male side to G 3/8 on the female side. The integrated profile sealing ring interface is used to achieve sealing at the connection.
Designed for hydraulic installations where a component or line with G 3/8 female thread needs to be connected to a G 1 female port via a reducer. Rated up to 400 bar and specified for -35 to +100 °C. Zinc-nickel plated surface treatment and NBR sealing material are specified.
Typical Applications
- Reducing BSPP port size between hydraulic components, manifolds, and valve blocks
- Hydraulic pipework and hose assemblies where a G 1 to G 3/8 adapter with profile sealing ring is required
