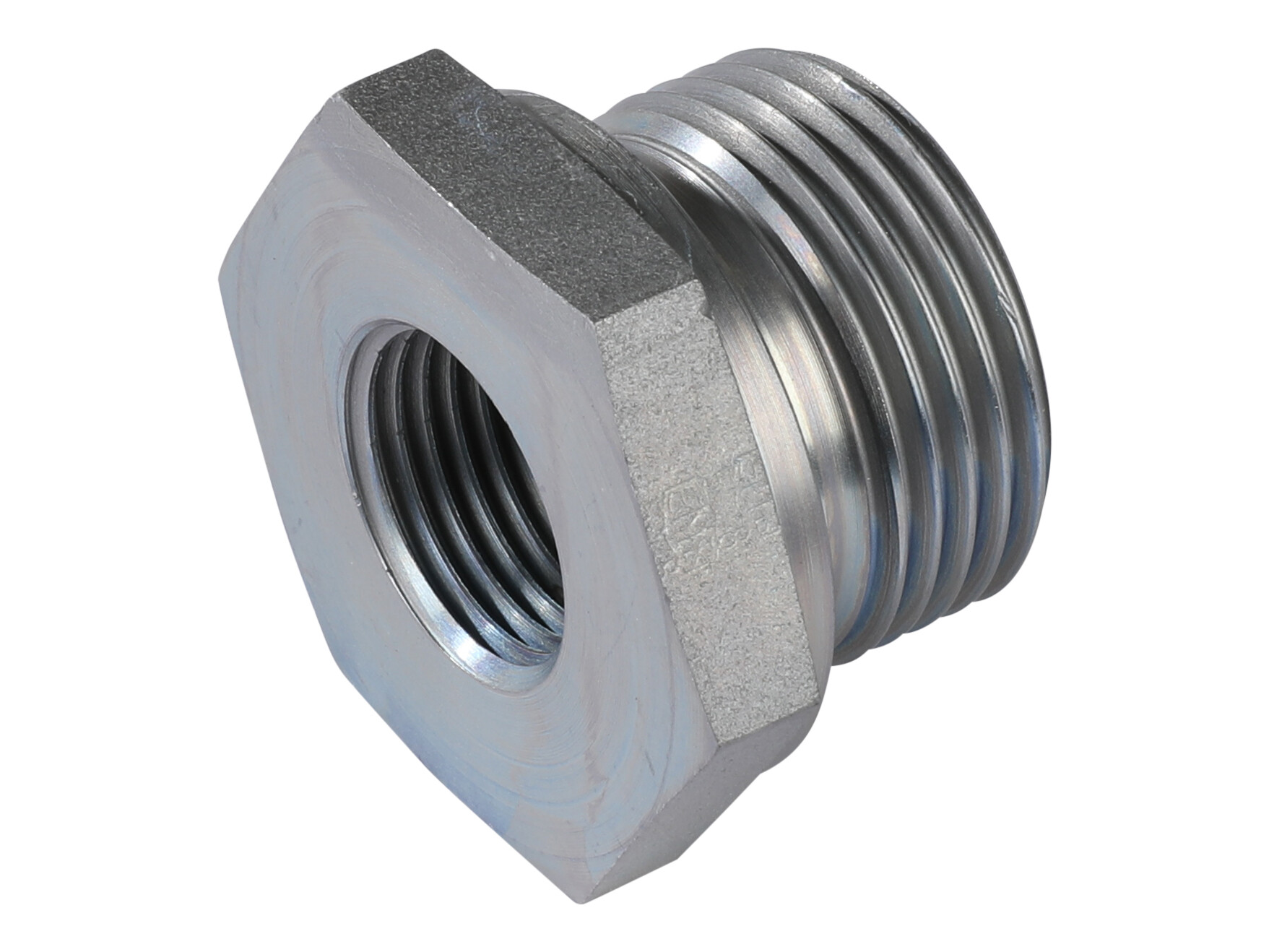

Reduction - 1"BSP x 1/2"BSP female - WD seal
Thread reducer for adapting between two Whitworth parallel pipe threads (BSPP), reducing from G 1 male to G 1/2 female. Used to connect hydraulic components with different BSPP port sizes while maintaining a compact threaded interface.
Sealing is via a profile sealing ring in NBR. The body has a zinc-nickel plated surface treatment. Key selection points include the BSPP thread sizes (G 1 to G 1/2), maximum pressure 400 bar, temperature range -35 to +100 °C, and the installation envelope dimensions (overall length 29 mm, hex S1 41 mm).
Typical Applications
- Reducing BSPP ports when connecting valves, manifolds, cylinders, or other hydraulic components with different thread sizes
- Hydraulic line and port adaptations where a male-to-female BSPP threaded reducer with elastomer seal is required
Partnumber:
RI-1-12ED
Package size:
20 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
0 mm
Hexagon
41 mm
L1
29 mm
L2
14,5 mm
Length
29 mm
Material
Steel
Model code
FI-RED-R1-WD-R1/2-B-W3
Pressure max.
400 bar
REACH compliant
Yes
RoHs compliant
Yes
S1
41 mm
Safety factor
4
Sealing material
NBR
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T1
G 1 BSP
Thread T2
G 1/2 BSP
Thread inner
G 1/2 BSP
Thread outer
G 1 BSP
Total length
29 mm
Type
Short
i
18 mm
Pakke str.
20 pcs
Stregkode
130455
Brutto vægt
0,15 Kg
Netto vægt
0,15 Kg
Oprindelsesland
DEU
Intrastat varekode
73071110
Thread reducer for adapting between two Whitworth parallel pipe threads (BSPP), reducing from G 1 male to G 1/2 female. Used to connect hydraulic components with different BSPP port sizes while maintaining a compact threaded interface.
Sealing is via a profile sealing ring in NBR. The body has a zinc-nickel plated surface treatment. Key selection points include the BSPP thread sizes (G 1 to G 1/2), maximum pressure 400 bar, temperature range -35 to +100 °C, and the installation envelope dimensions (overall length 29 mm, hex S1 41 mm).
Typical Applications
- Reducing BSPP ports when connecting valves, manifolds, cylinders, or other hydraulic components with different thread sizes
- Hydraulic line and port adaptations where a male-to-female BSPP threaded reducer with elastomer seal is required
