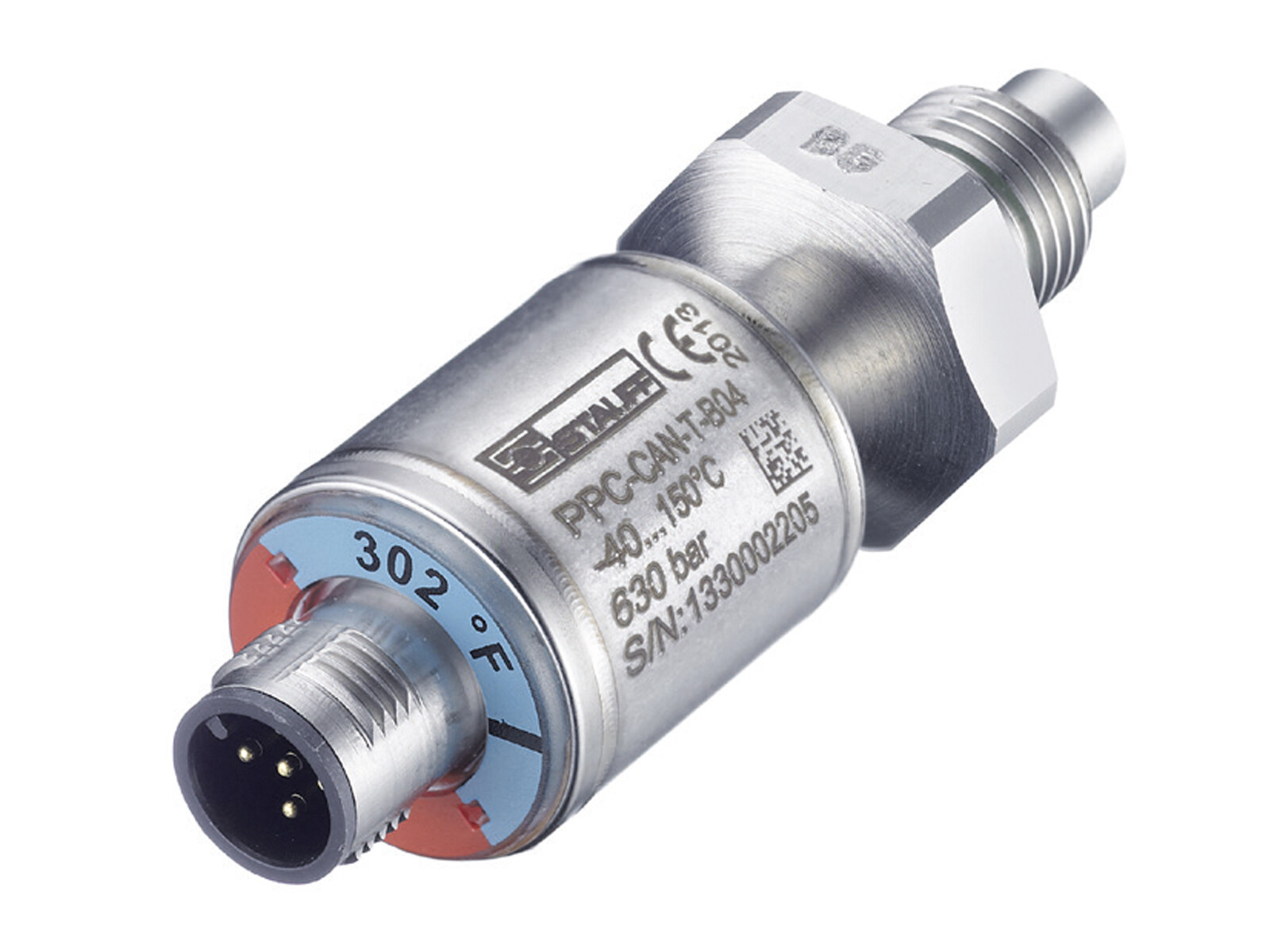

Temperatursensor G1/4''
The CAN Temperature Sensor-PPC-CAN-T are specially designed for use with the CAN Hydraulic Testers. This sensor is using the CANopen protocol to transfer the measurement values to the CAN Hydraulic Testers. Most technical details are the same as with the Temperature Sensor-PPC-04/12-T.
Due their sturdy Stainless-Steel design with automatic sensor recognition, the CAN Temperature Sensor is a
reliable and flexible solution for the CAN Hydraulic Tester. The status of the sensor is indicated via LED.
To connect the CAN Temperature Sensor to the CAN Hydraulic Tester a CAN Connection Cable and a CAN Terminating Resistor is needed.
Varenummer:
PPC-CAN-T-B04
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Gänga
G 1/4 BSP
Märke namn
Stauff
Sensor typ
CAN
Skyddsklass
IP 67
Temperatur omgivning max.
+85 °C
Temperatur omgivning min.
-40 °C
Temperaturmåling max.
+150 °C
Temperaturmåling min.
-40 °C
Tillverkningsmaterial
Stainless steel
Tryck max.
630 bar
Tryck spräng min.
2150 bar
Utgående signal max.
3 V
Utgående signal min.
0 V
Pakke str.
1 st
Stregkode
356998
Brutto vægt
Kg
Netto vægt
Kg
Oprindelsesland
deu
The CAN Temperature Sensor-PPC-CAN-T are specially designed for use with the CAN Hydraulic Testers. This sensor is using the CANopen protocol to transfer the measurement values to the CAN Hydraulic Testers. Most technical details are the same as with the Temperature Sensor-PPC-04/12-T.
Due their sturdy Stainless-Steel design with automatic sensor recognition, the CAN Temperature Sensor is a
reliable and flexible solution for the CAN Hydraulic Tester. The status of the sensor is indicated via LED.
To connect the CAN Temperature Sensor to the CAN Hydraulic Tester a CAN Connection Cable and a CAN Terminating Resistor is needed.
